Load and force measuring cell SAUTER CS 100-3P1

Name: Load and force measuring cell SAUTER CS 100-3P1
Brand: SAUTER
SKU: CS 100-3P1
Price: 180.00 EUR
Availability: InStock

Brand : SAUTER

Reference : CS 100-3P1

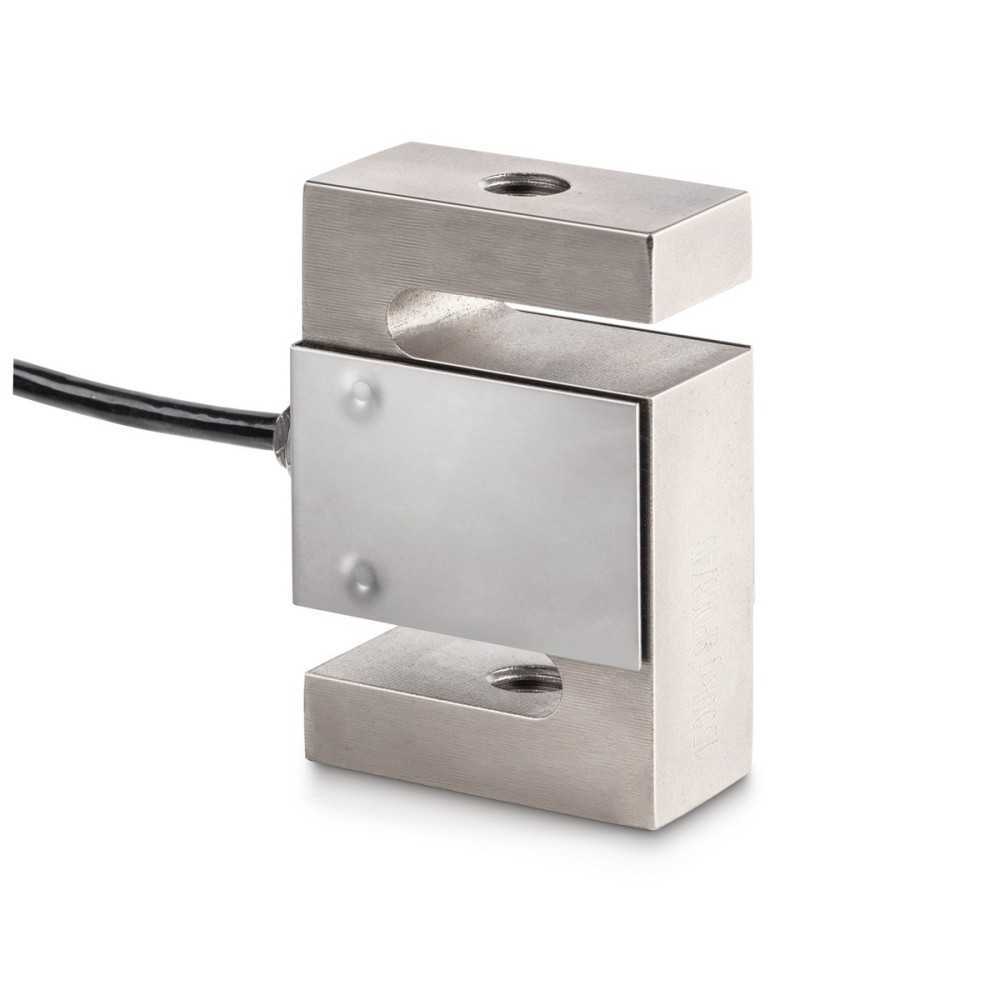

4-wire “S” measuring cell made of nickel-plated steel for force and mass measurement

Technical Data

Weighing capacity [Max]	100 kg
Measuring range force [Max] (N)	1 kN
Design	"S" shaped cell
Directions of force	tension, compression
Measuring applications	force, mass
Load cell - Combined error	0,02%
Load cell OIML class	C3
Load cell - Resolution (verifiable)	3000 e
Load cell - Y-value	10000
Load cell - characteristic value - nominal	2 mV/V
IP protection - complete device	IP67
Material	steel, nickel-plated
Load cell connection	4-wire
Cable length	3 m
Mounting - force application	Threaded hole M10
Mounting - force dissipation	Threaded hole M10

Guarantee safe checkout

RoHS compliant
Area of application: for tensile and compressive force measurement
Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test stands

Field of application / Area of application

Mechanical engineering and plant construction
Testing technology and material testing
Conveyor technology and logistics
Container and silo weighing
Medical technology and research

Reference : CS 100-3P1

Hurry! only 15 items left in stock.

Specific References

EAN13: 4045761221444
