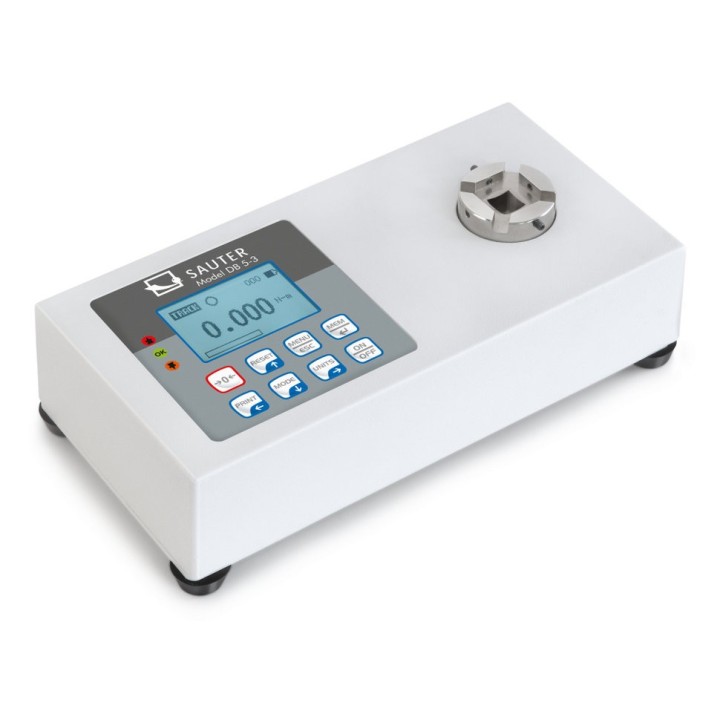

SAUTER DB 1-4 digital torquemeter max 1 Nm

Name: SAUTER DB 1-4 digital torquemeter max 1 Nm
Brand: SAUTER
SKU: DB 1-4
Price: 1566 EUR
Availability: InStock

SAUTER

€1,740.00 (Save 10%)

€1,566.00

Tax excluded

Convenient way to test the torque of tools

Technical Data

Measuring range torque	0,05 Nm – 1 Nm
Readability torque [d] (Nm)	0,2 mNm
Tolerance (% of [Max])	0,5%
Units	Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups	20 mm, 3/8 "
Overload protection (% of [Max])	120%
Memory function
Internal data memory: Number of individual values	500
Peak function
Limit-setting function
Internal measuring frequency	1000 Hz
Supplied power supply	Accu & Power supply
Battery / accumulator type	NiMH
Rechargeable battery operating time - backlight off	18 h
Auto-off interval(s) in battery mode/rechargeable battery mode	1 - 60 min
Interfaces	RS-232 standard, USB-Device
Display type	LCD graphic
Display resolution	128×64
Material housing	metal, lacquered
Dimension (W×D×H)	200×100×50 mm

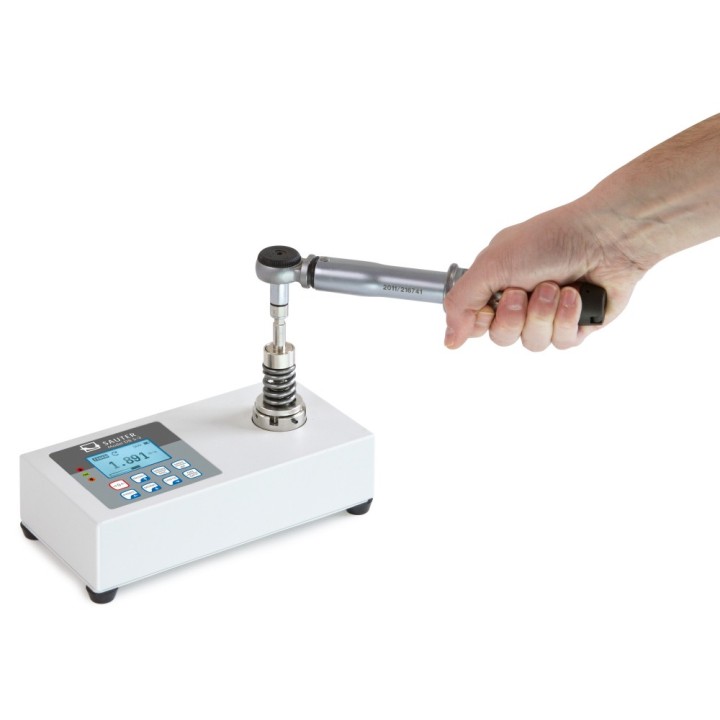

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers

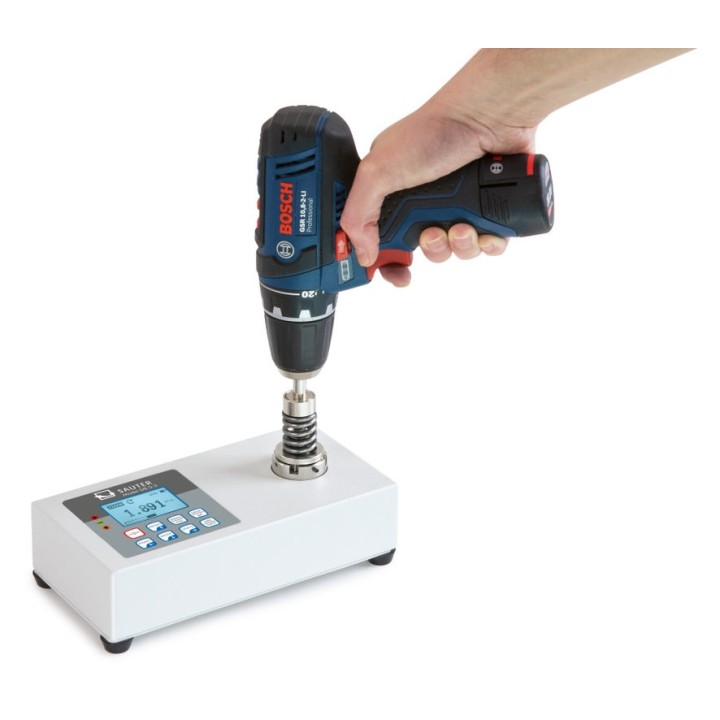

Torque pick-up system for dynamic testing of electric screwdrivers

Metal housing for durable use in harsh environmental conditions

Capacity display: A bar lights up to show how much of the measuring range is still available

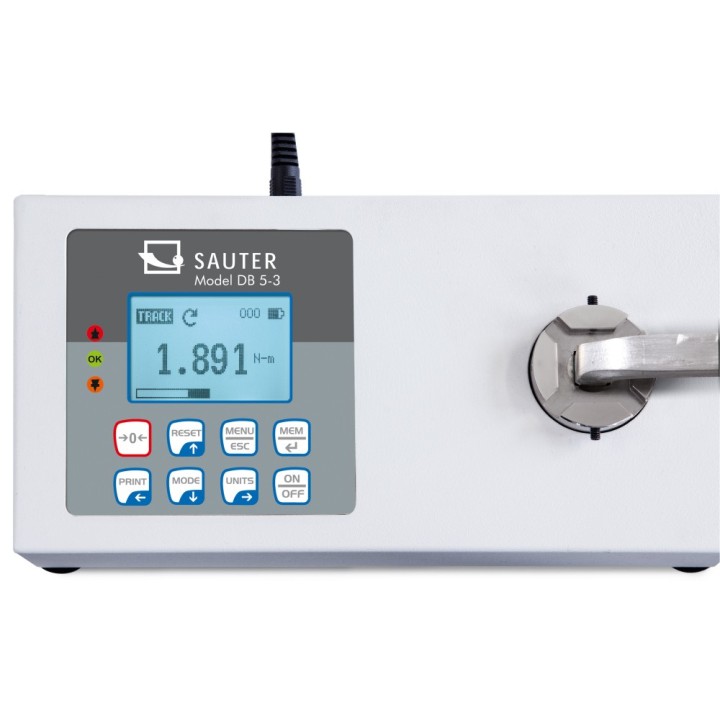

LCD graphics display with backlight

Rubber feet with anti-slip feature

Data interface USB and RS-232 included

Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Can be used in both directions of rotation

Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal

AUTO-OFF function

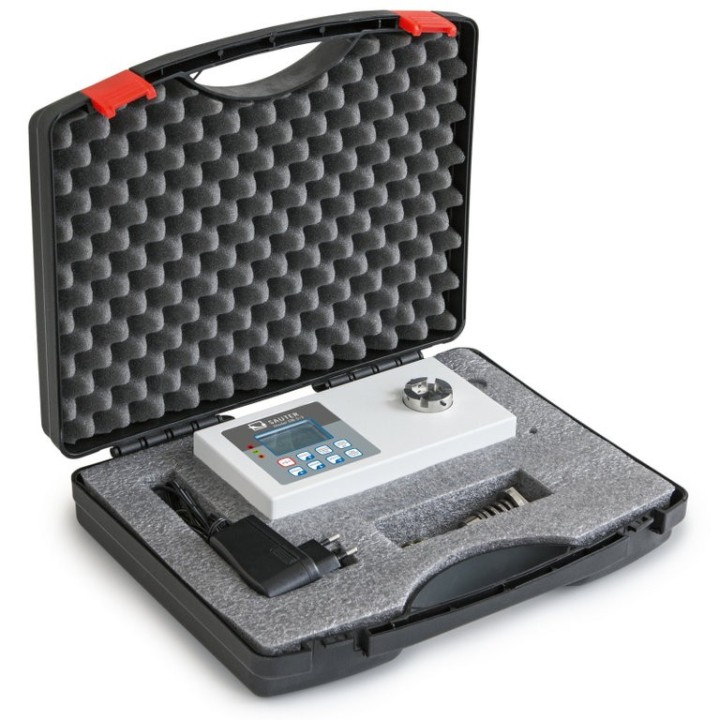

Scope of delivery: Torque pick-up, sturdy carry case
