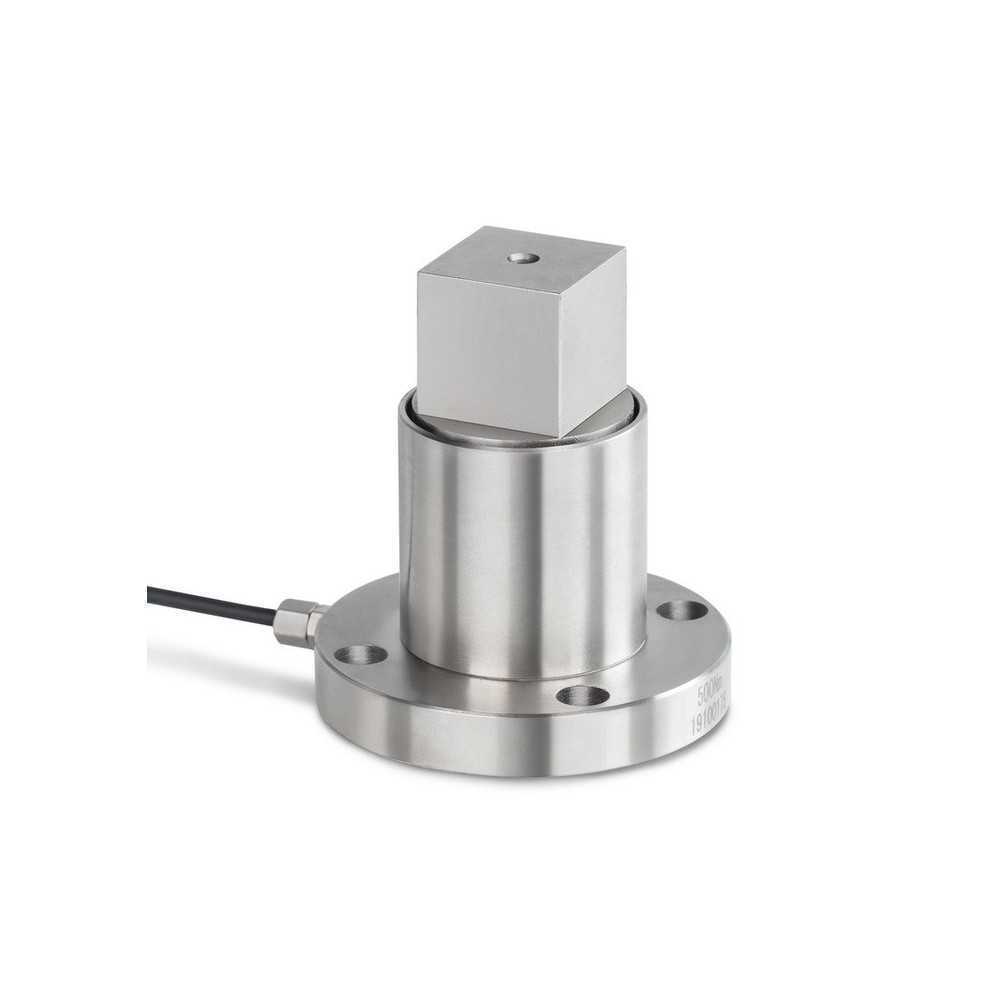

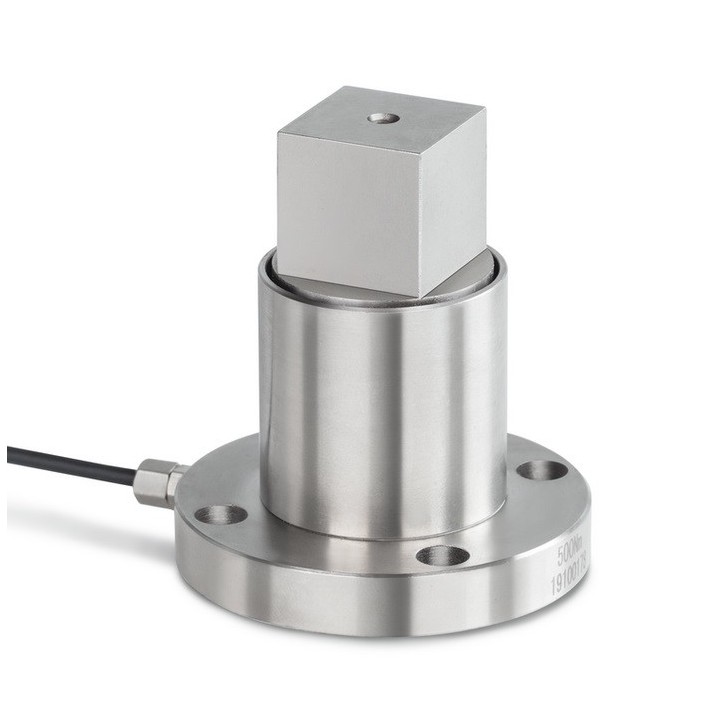

Torque sensor SAUTER DC 200-Y1

Measuring System

Measuring range torque [Max] 200 Nm

characteristic value - nominal 1,5 mV/V

characteristic value - variance 0,2 mV/V

connection 4-wire

Input resistance - nominal 380 Ω

Input resistance - variance 10 Ω

Output resistance - nominal 350 Ω

Output resistance - variance 3 Ω

Recommended exitation voltage [Min] 9 V

Recommended exitation voltage [Max] 12 V

Isolation resistance - [Min] 5000 MΩ

Combined error 0,5% Construction

Material steel

Cable length 2 m

Net weight approx. 0,40 kg
