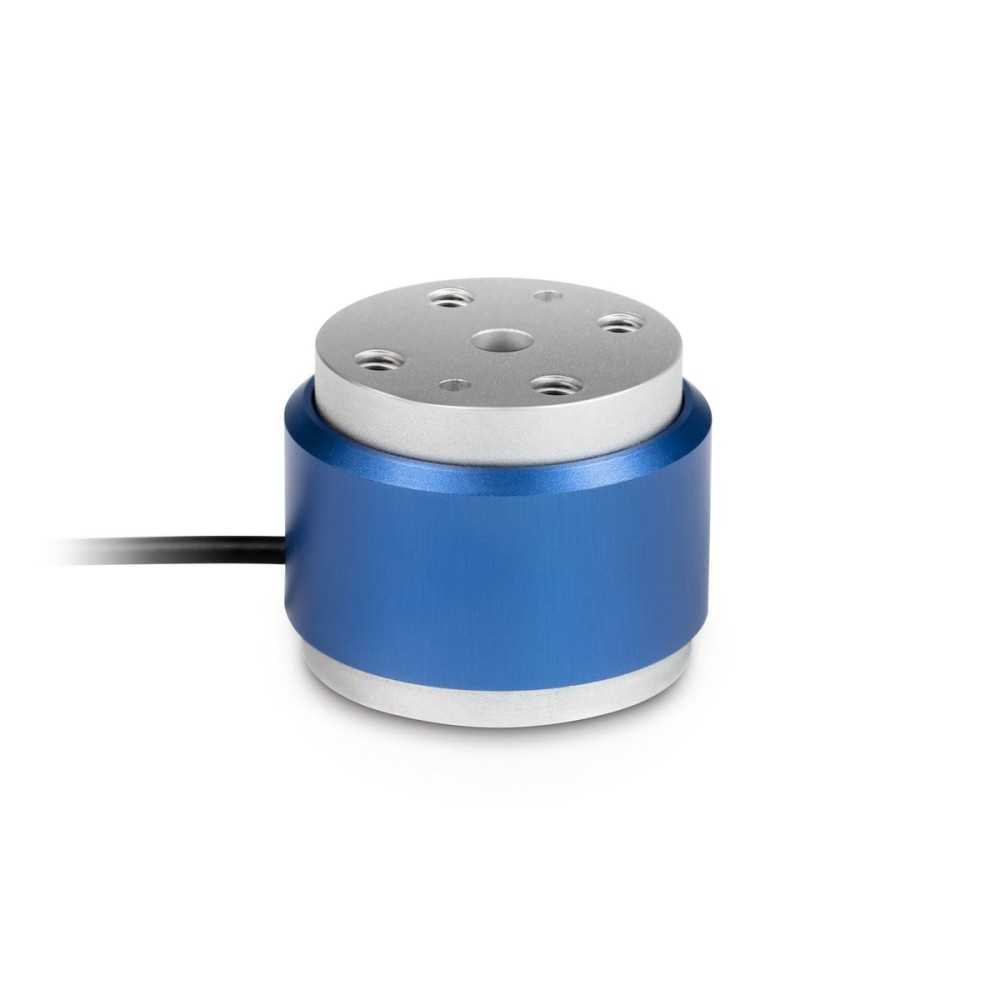

Torque sensor SAUTER DC 20-Y2

Name: Torque sensor SAUTER DC 20-Y2
Brand: SAUTER
SKU: DC 20-Y2
Price: 441.00 EUR
Availability: InStock

Brand : SAUTER

Reference : DC 20-Y2

Measuring System

Measuring range torque [Max] 20 Nm

IP protection - complete device IP65

characteristic value - nominal 1,5 mV/V

characteristic value - variance 0,5 mV/V

connection 4-wire

Input resistance - nominal 380 Ω

Input resistance - variance 10 Ω

Output resistance - nominal 350 Ω

Output resistance - variance 3 Ω

Recommended exitation voltage [Min] 9 V

Recommended exitation voltage [Max] 12 V

Isolation resistance - [Min] 5000 MΩ

Combined error 0,5% Construction

Material steel

Cable length 2 m

Net weight approx. 0,40 kg

Guarantee safe checkout

High precision (comprehensive error 0,5% F.S.)
RoHS compliant
For monitoring or measurement of static torques, tests of manual torque wrenches or transfer of static load torques
High torsional stiffness

Field of application / Area of application

Mechanical engineering
Test stands and quality assurance
Calibration services
Automotive industry
Research and development
Toolmaking and mould and die production

Reference : DC 20-Y2

Hurry! only 8 items left in stock.

Specific References

EAN13: 4045761248182
