SAUTER FC 100 compact force gauge

SAUTER FC 100 compact force gauge

SAUTER
FC 10

Compact force gauge for tensile and compressive force measurements

Technical Data SAUTER FC 100

Measuring range force [Max] (N) 100 N
Readability force [d] (N) 0,1 N
Tolerance (% of [Max]) 0,3%
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Memory function
Limit-setting function
Hold function
Peak function
Material housing metal
Dimensions completely mounted (W×D×H) 145×73×34 mm
Net weight approx. 0,50 kg
Interfaces RS-232 standard, USB-Device
Certificate : without Certificate
Hurry! only 5 items left in stock.
€373.50
€415.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Turnable display with backlight

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Metal housing for durable use in harsh environmental conditions

Capacity display: A bar lights up to show how much of the measuring range is still available

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, between 10 and 100 % of [Max], in pull and push direction. The process is supported by an acoustic and visual signal

Safety: If loads exceed 110 % of the measuring range, the device will give clear acoustic and visual signals

Internal memory for up to 500 measurement values

USB data interface and USB interface cable as standard

Selectable: AUTO-OFF function or permanent operation

Selectable measuring units: N, kgf, ozf, lbf

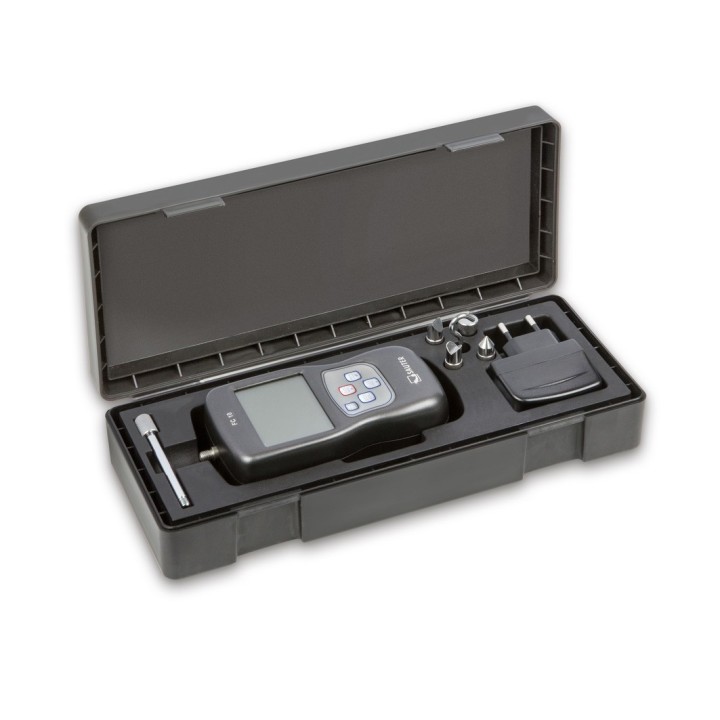

Delivered in a robust carrying case

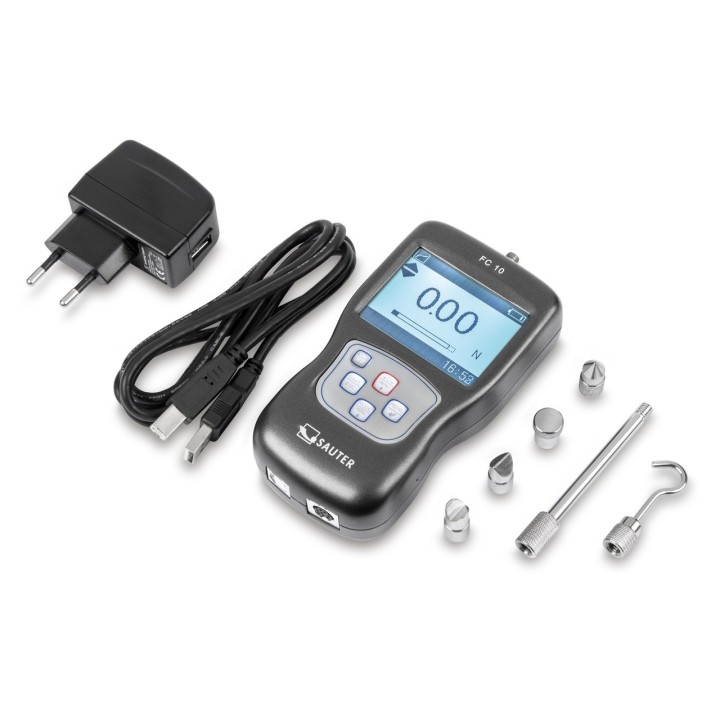

Standard attachments as shown, extension rod: 90 mm, included with the delivery

Can be mounted on all SAUTER test stands up to 5 kN

: FC 10
Hurry! only 5 items left in stock.

Specific References

EAN13
4045761160842
