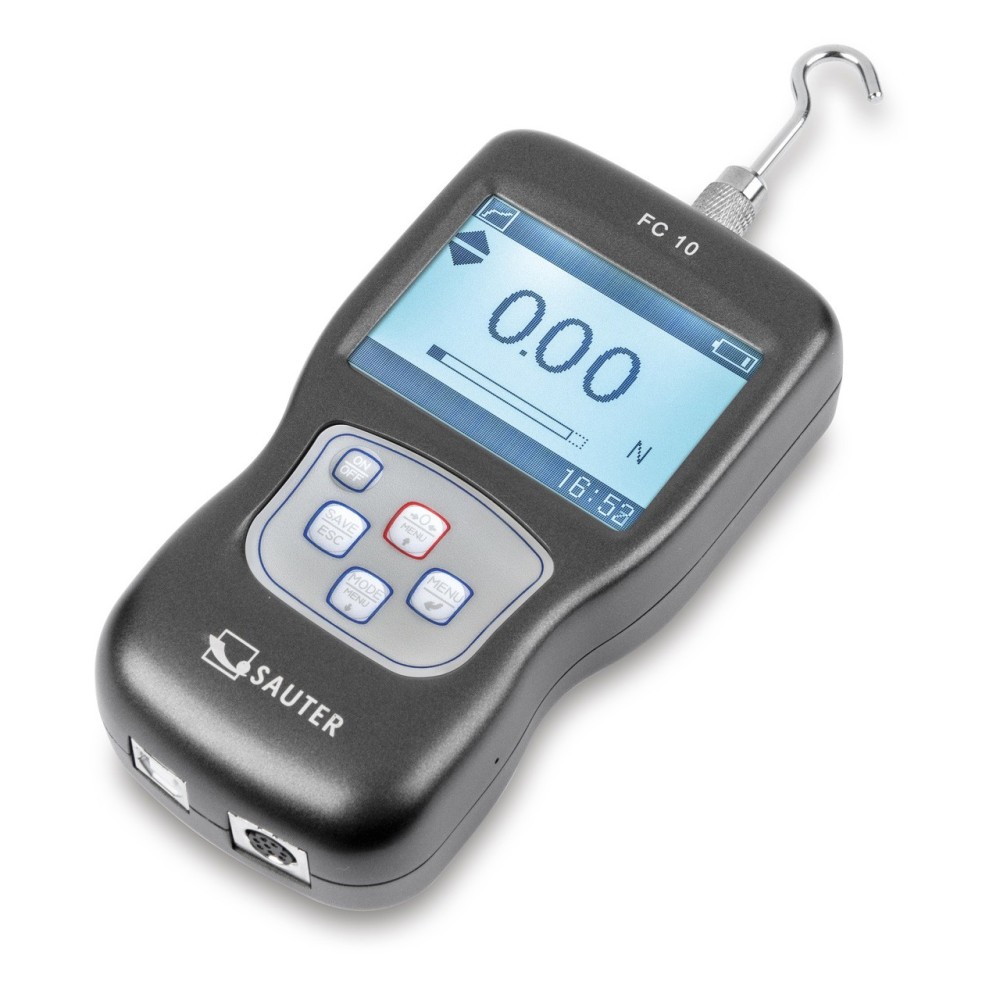

SAUTER FC 500 compact force gauge

Name: SAUTER FC 500 compact force gauge
Brand: SAUTER
SKU: FC 10
Price: 373.50 EUR
Availability: InStock

Brand : SAUTER

Reference : FC 10

Compact force gauge for tensile and compressive force measurements

Technical Data SAUTER FC 500

Measuring range force [Max] (N)	500 N
Readability force [d] (N)	0,1 N
Tolerance (% of [Max])	0,3%
Measuring head measuring frequency	1000 Hz
Number of platforms / channels	1
Supplied power supply	Accu & Power supply
Memory function
Limit-setting function
Hold function
Peak function
Material housing	metal
Dimensions completely mounted (W×D×H)	145×73×34 mm
Net weight approx.	0,50 kg
Interfaces	RS-232 standard, USB-Device

Guarantee safe checkout

Turnable display with backlight

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Metal housing for durable use in harsh environmental conditions

Capacity display: A bar lights up to show how much of the measuring range is still available

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, between 10 and 100 % of [Max], in pull and push direction. The process is supported by an acoustic and visual signal

Safety: If loads exceed 110 % of the measuring range, the device will give clear acoustic and visual signals

Internal memory for up to 500 measurement values

USB data interface and USB interface cable as standard

Selectable: AUTO-OFF function or permanent operation

Selectable measuring units: N, kgf, ozf, lbf

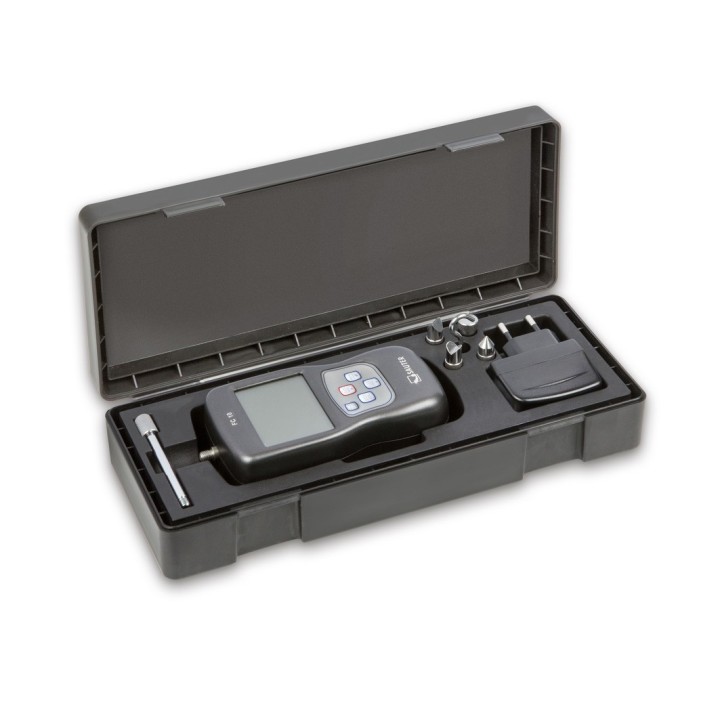

Delivered in a robust carrying case

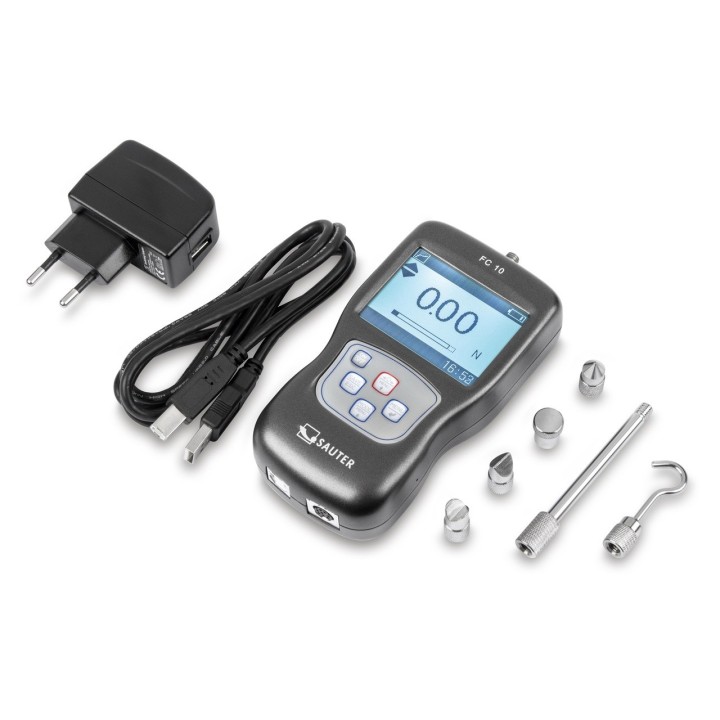

Standard attachments as shown, extension rod: 90 mm, included with the delivery

Can be mounted on all SAUTER test stands up to 5 kN

Reference : FC 10
