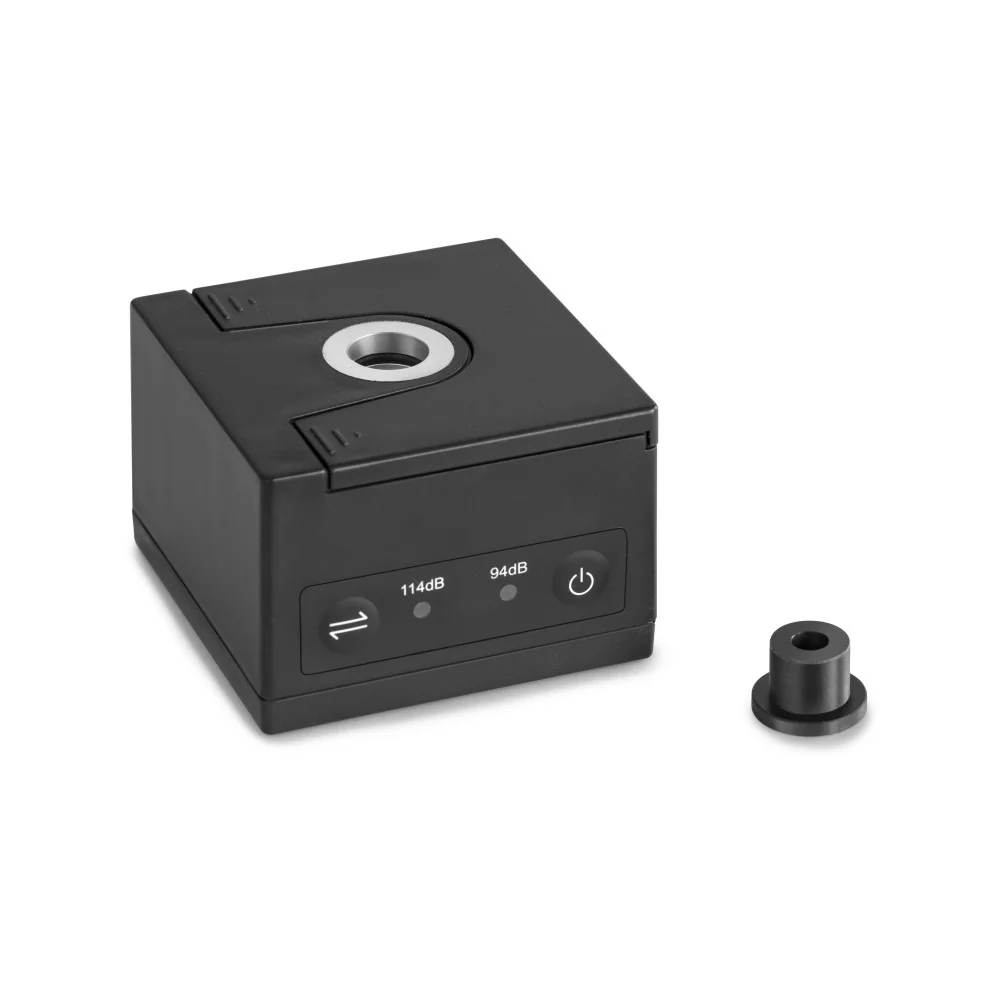

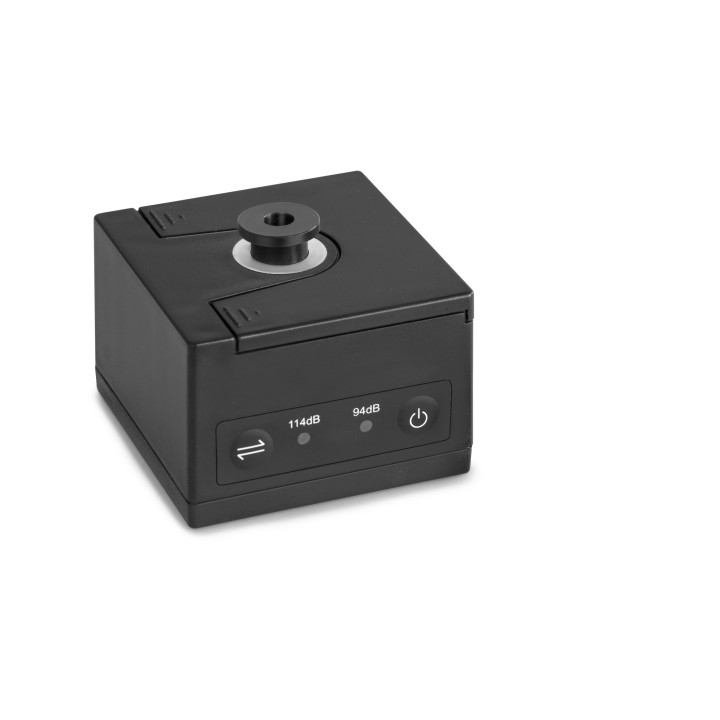

SAUTER BSWA-01 Calibrator for sound level meter

Calibrator for regular adjustment of the sound level meter, class 1, as well as testing the linearity of sound level meters

• - Applicable standards: IEC60942:2003 Class 1, ANSI S1.40-1984, GB/T 15173-1994.
• - Output frequency 1 kHz (+/- 0,5 %)
• - Output of acoustic pressure, can be selected at 94 dB or 114 dB (± 0.3 dB)
• - Distortion factor ˂ 2 %
• - Stabilisation time ˂ 10 s
• - Permissible ambient temperature range -10 °C/50 °C
• - The calibrator is designed for ½" as well as ¼" microphones (adapter included in the delivery) in accordance with the IEC 61094-4 standard
• - Battery operation, 2× 1.5 V AA, not standard, operating time up to 40 hours
• - Dimensions W×D×H 70×70×48 mm
• - Net weight approx. 137 g
