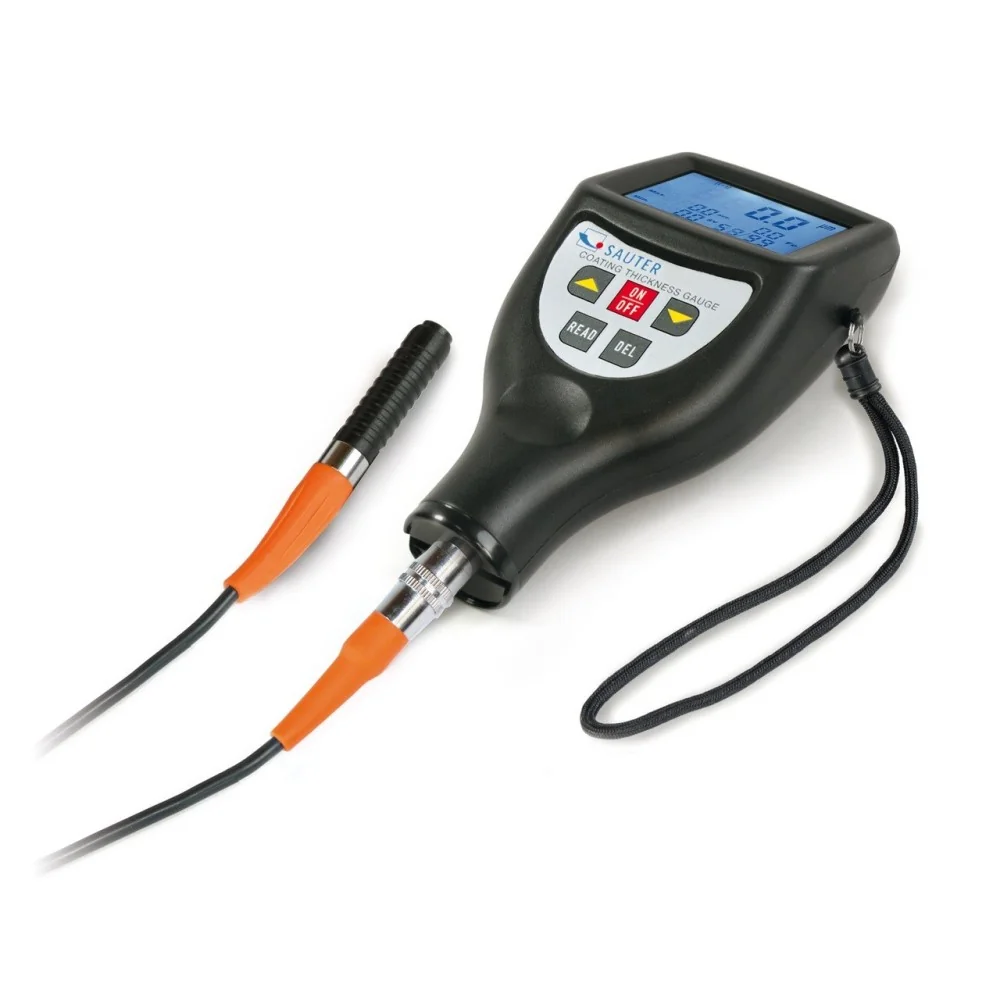

SAUTER TG 1250-0.1FN Coating thickness gauge - FE/NFE external

SAUTER TG 1250-0.1FN Coating thickness gauge - FE/NFE external

SAUTER
TG 1250-0.1FN

Premium coating thickness gauge for paint layer, lacquer layer etc.

TECHNICAL DATA

Measuring range coating thickness [d] (µm) 100 µm; 1250 µm
Readability coating thickness [d] (µm) 0,1 µm; 1 µm
Tolerance (% of [Max]) 3%
Units µm, inch (mil)
Coating thickness gauge sensor type FE, NFE
Test object thickness coating Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N
Battery 2×1.5 V AAA
Memory function
Statistic function
Increase in measurement accuracy possible
Continuous capture possible
Material housing plastic
Dimensions completely mounted (W×D×H) 130×64×32 mm
Cable length 1 m
Sensor placement position external
Certificate : without Certificate
Hurry! only 15 items left in stock.
€540.00
€600.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

External sensor for difficult-to-access measuring points

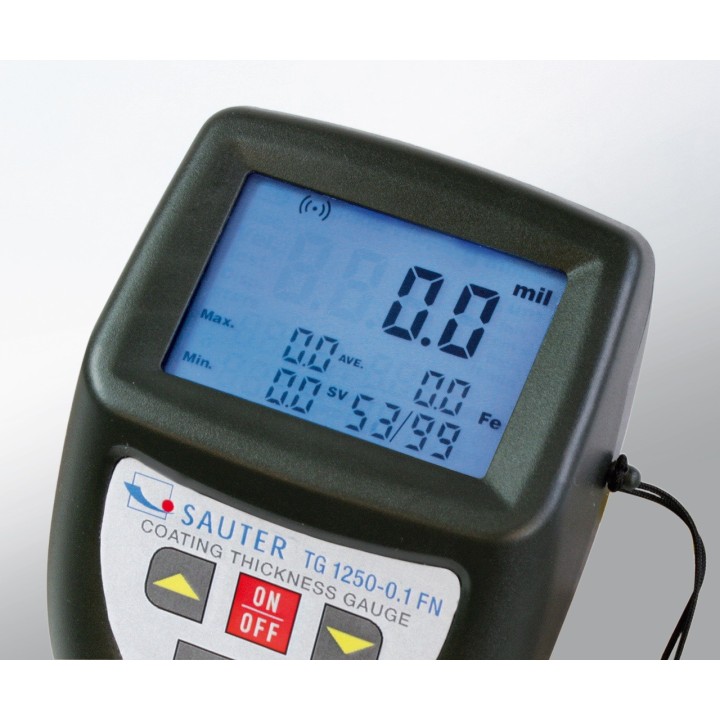

LCD display, backlit, display of all information at a glance

Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of 1 % (or less) of the measured value

Two different measuring modes: single measurement and scan mode for continuous measurement

Mini Statistics Kit: displays the measured result, the average value and the max and the min value

Internal memory for up to 99 measurement values

Selectable measuring units: µm inch (mil)

Base plate and calibration foils included

Data interface RS-232 as standard

Delivered in a robust carrying case

: TG 1250-0.1FN
