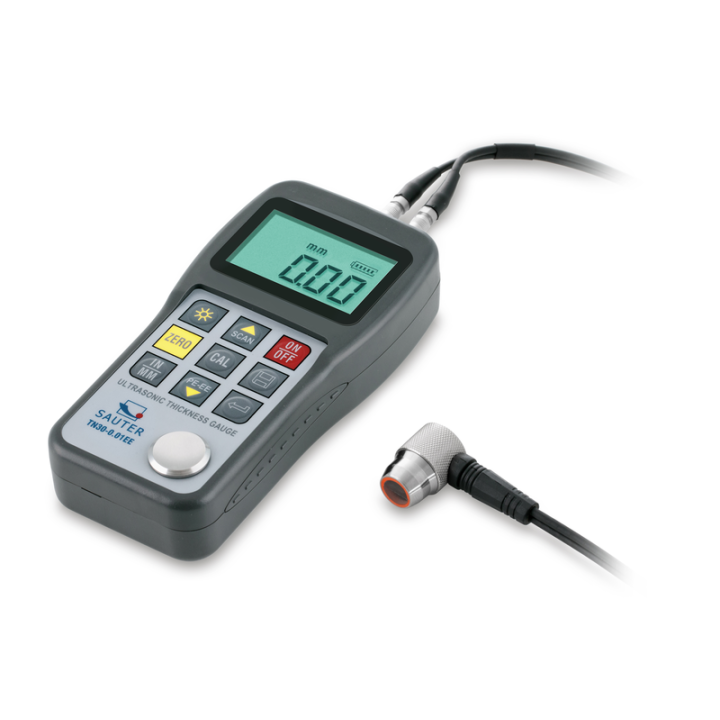

SAUTER TN 30-0.01EE Ultrasonic thickness gauge

SAUTER TN 30-0.01EE Ultrasonic thickness gauge

SAUTER
TN 30-0.01EE

Hand-held measuring device for ultrasonic material thickness testing in Echo-Echo principle

TECHNICAL DATA

Material thickness pulse-echo [Max] (mm)600 mm
Material thickness pulse-echo [Min] (mm)0,65 mm
Material thickness echo-echo [Max] (mm)30 mm
Material thickness echo-echo [Min] (mm)3 mm
Measuring range pulse-echo0,65 mm – 600 mm
Measuring range echo-echo3 mm – 30 mm
Readability material thickness [d] (mm)0,01 mm
Tolerance (% of [Max])0,5%
Unitsmm, inch
Speed of sound [Max] (m/s)9999 m/s
Speed of sound [Min] (m/s)1000 m/s
Speed of sound1000 m/s – 9999 m/s
Measuring head measuring frequency5 MHz
Battery2×1.5 V AA
Memory function
Material housingplastic
Dimensions completely mounted (W×D×H)150×74×32 mm
InterfacesUSB-Device
Cable length0,9 m
Certificate : without Certificate
Hurry! only 14 items left in stock.
€882.00
€980.00
Save 10%
Tax excluded
Quantity

  • External measuring head
  • USB data interface, as standard
  • Scan mode (10 measurements per sec.) or single point measuring mode possible
  • Internal memory for up to 20 files (with up to 100} values per file)
  • Selectable measuring units: mm inch
  • Two measuring modes to determine material thickness:
  • - Pulse-Echo mode
  • - Echo-Echo mode
  • Echo-Echo measuring: Determining the actual thickness of materials irrespective of any coating which might be present. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
  • Echo-Echo measurements are only possible with the measuring head included as part of the delivery (SAUTER ATU-US12, see accessories)
  • Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel

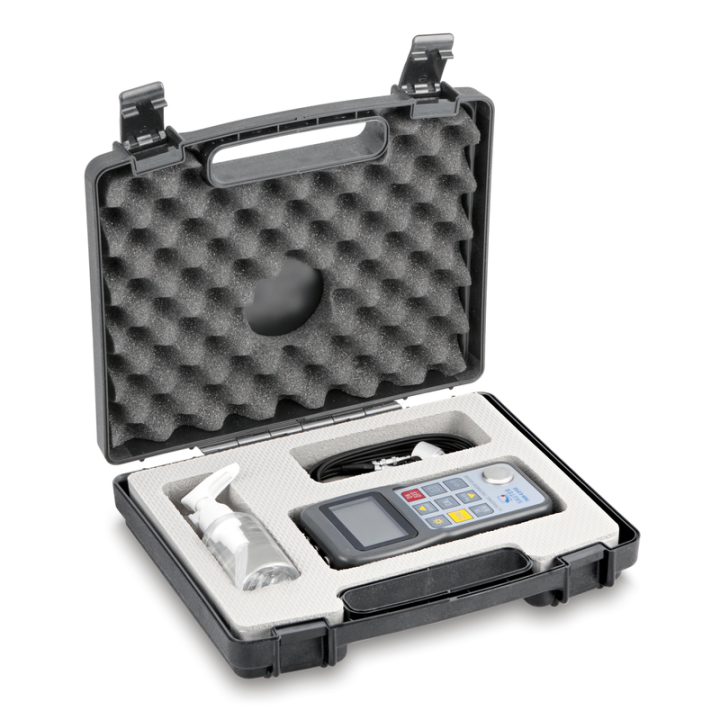

  • Delivered in a robust carrying case
: TN 30-0.01EE
