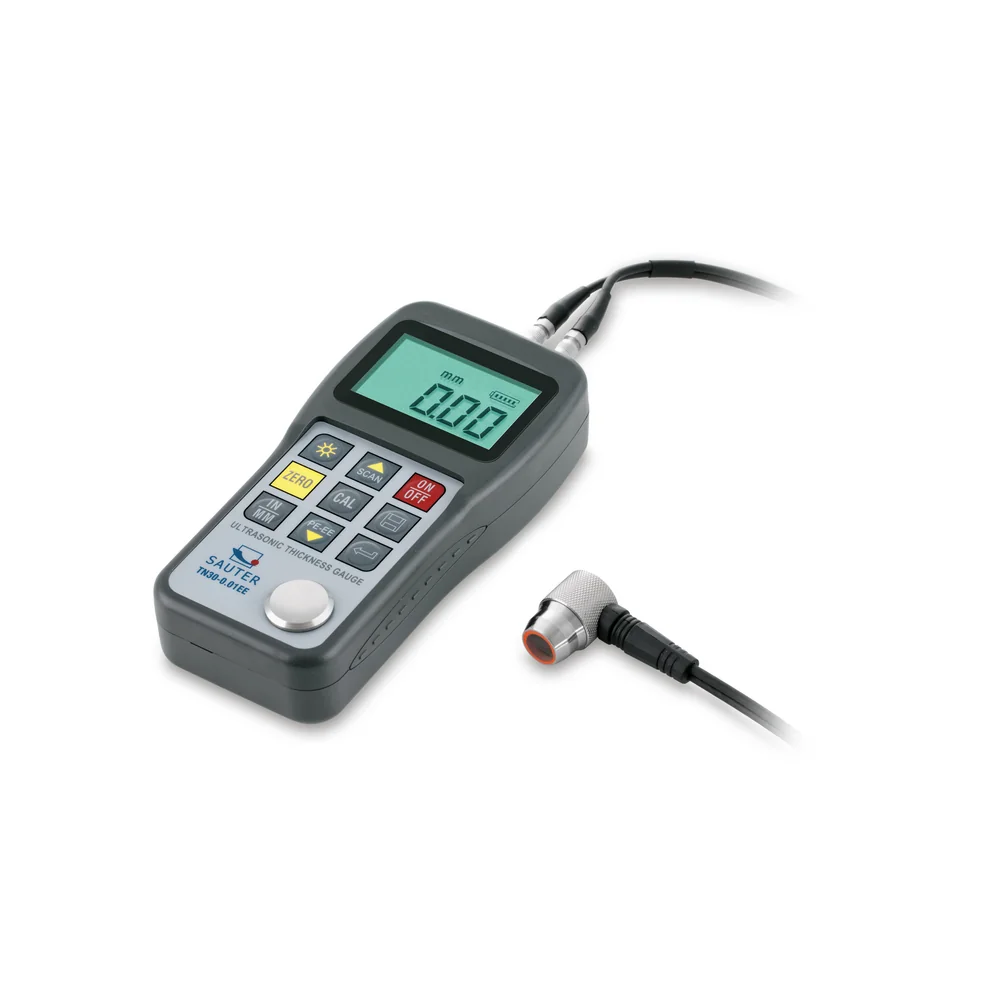

SAUTER TN 30-0.01EE Ultrasonic thickness gauge

882.00 €Save 10%

980.00 €

Tax excluded

Hand-held measuring device for ultrasonic material thickness testing in Echo-Echo principle

Material thickness pulse-echo [Max] (mm)	600 mm
Material thickness pulse-echo [Min] (mm)	0,65 mm
Material thickness echo-echo [Max] (mm)	30 mm
Material thickness echo-echo [Min] (mm)	3 mm
Measuring range pulse-echo	0,65 mm – 600 mm
Measuring range echo-echo	3 mm – 30 mm
Readability material thickness [d] (mm)	0,01 mm
Tolerance (% of [Max])	0,5%
Units	mm, inch
Speed of sound [Max] (m/s)	9999 m/s
Speed of sound [Min] (m/s)	1000 m/s
Speed of sound	1000 m/s – 9999 m/s
Measuring head measuring frequency	5 MHz
Battery	2×1.5 V AA
Memory function
Material housing	plastic
Dimensions completely mounted (W×D×H)	150×74×32 mm
Interfaces	USB-Device
Cable length	0,9 m

External measuring head
USB data interface, as standard
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100} values per file)
Selectable measuring units: mm inch
Two measuring modes to determine material thickness:
- Pulse-Echo mode
- Echo-Echo mode
Echo-Echo measuring: Determining the actual thickness of materials irrespective of any coating which might be present. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
Echo-Echo measurements are only possible with the measuring head included as part of the delivery (SAUTER ATU-US12, see accessories)
Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel
Delivered in a robust carrying case

Reference TN 30-0.01EE
