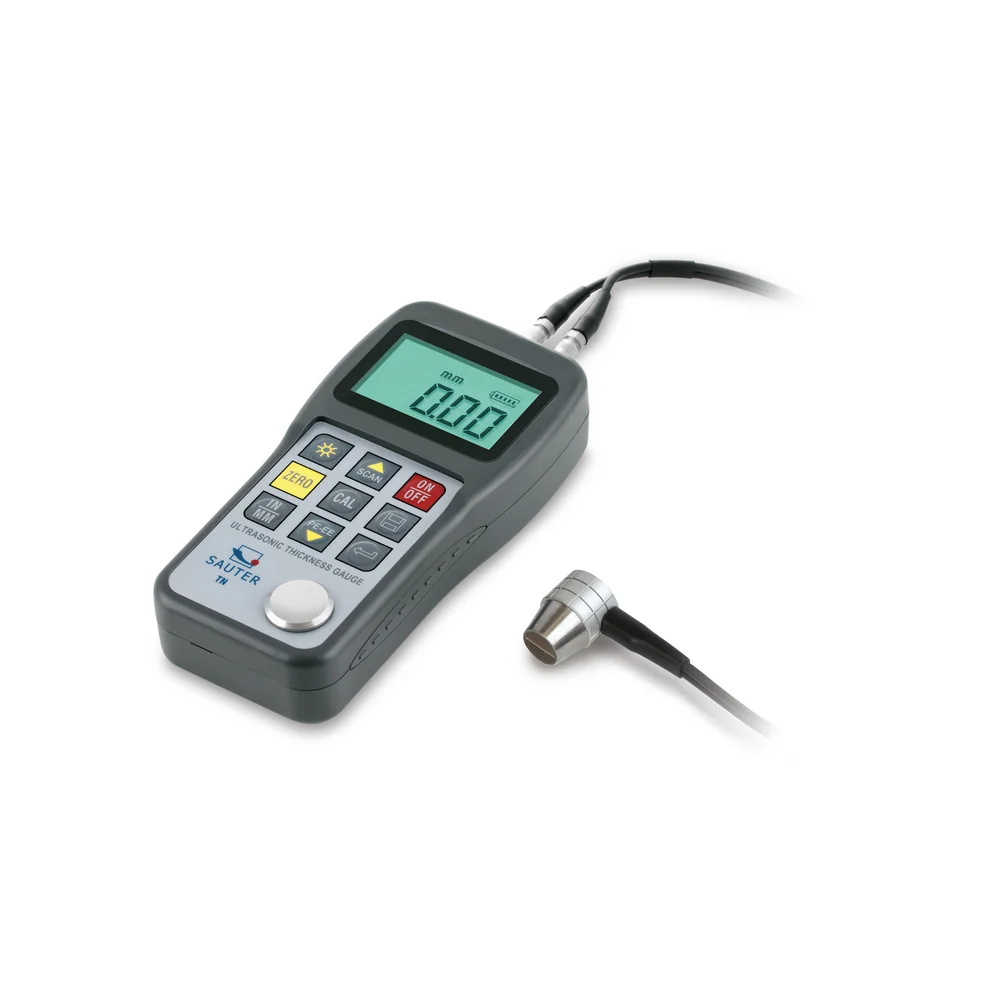

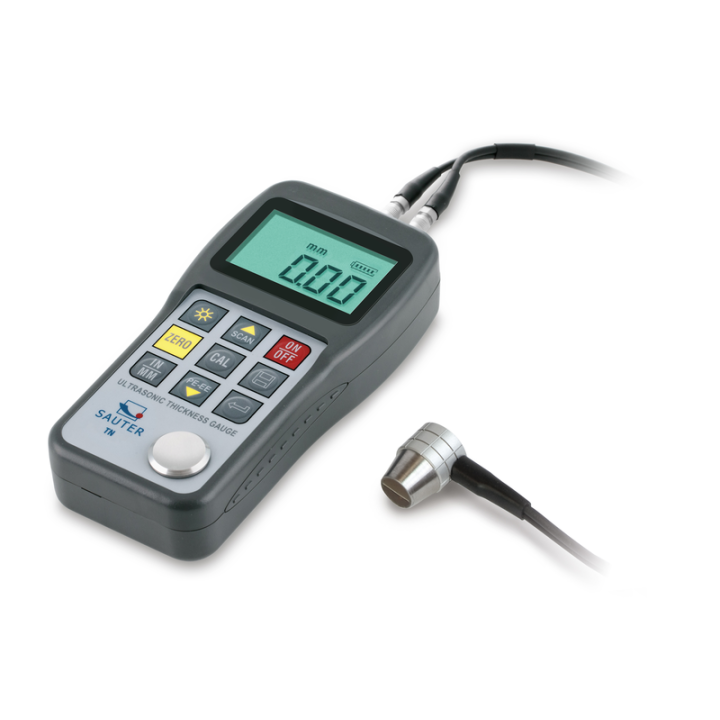

SAUTER TN 230-0.01US Ultrasonic thickness gauge

Name: SAUTER TN 230-0.01US Ultrasonic thickness gauge
Brand: SAUTER
SKU: TN 230-0.01US
Price: 630.00 EUR
Availability: InStock

Brand : SAUTER

Reference : TN 230-0.01US

Portable measuring device for ultrasonic material thickness testing

TECHNICAL DATA

Material thickness pulse-echo [Max] (mm)	230 mm
Material thickness pulse-echo [Min] (mm)	1,2 mm
Measuring range pulse-echo	1,2 mm – 230 mm
Measuring range echo-echo	–
Readability material thickness [d] (mm)	0,01 mm
Tolerance (% of [Max])	0,5%
Units	mm, inch
Speed of sound [Max] (m/s)	9999 m/s
Speed of sound [Min] (m/s)	1000 m/s
Speed of sound	1000 m/s – 9999 m/s
Measuring head measuring frequency	5 MHz
Battery	2×1.5 V AA
Material housing	plastic
Dimensions completely mounted (W×D×H)	150×74×32 mm
Cable length	0,9 m

Guarantee safe checkout

External measuring head
Data interface USB standard
Scan mode (10 measurements per sec.) or single point measuring mode possible
Internal memory for up to 20 files (with up to 100} values per file)
Selectable measuring units: mm inch
Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel

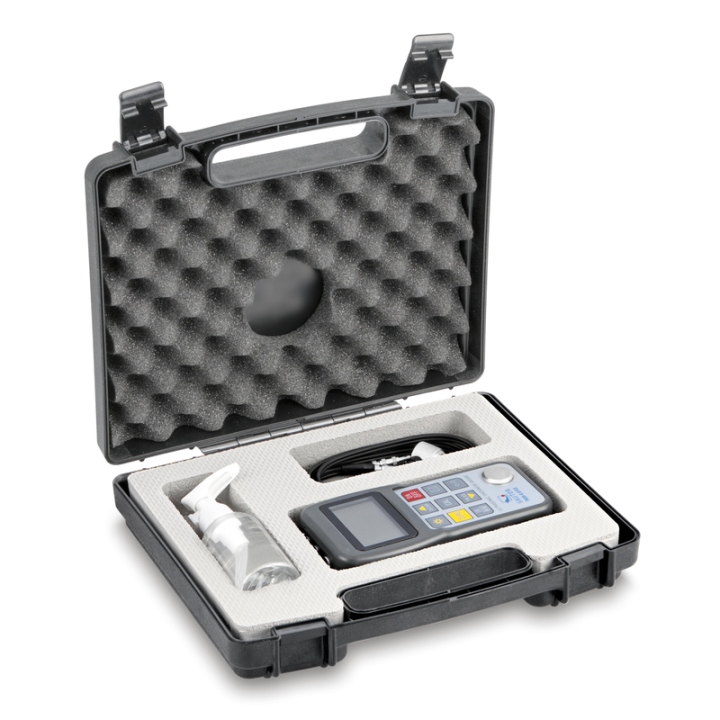

Delivered in a robust carrying case
