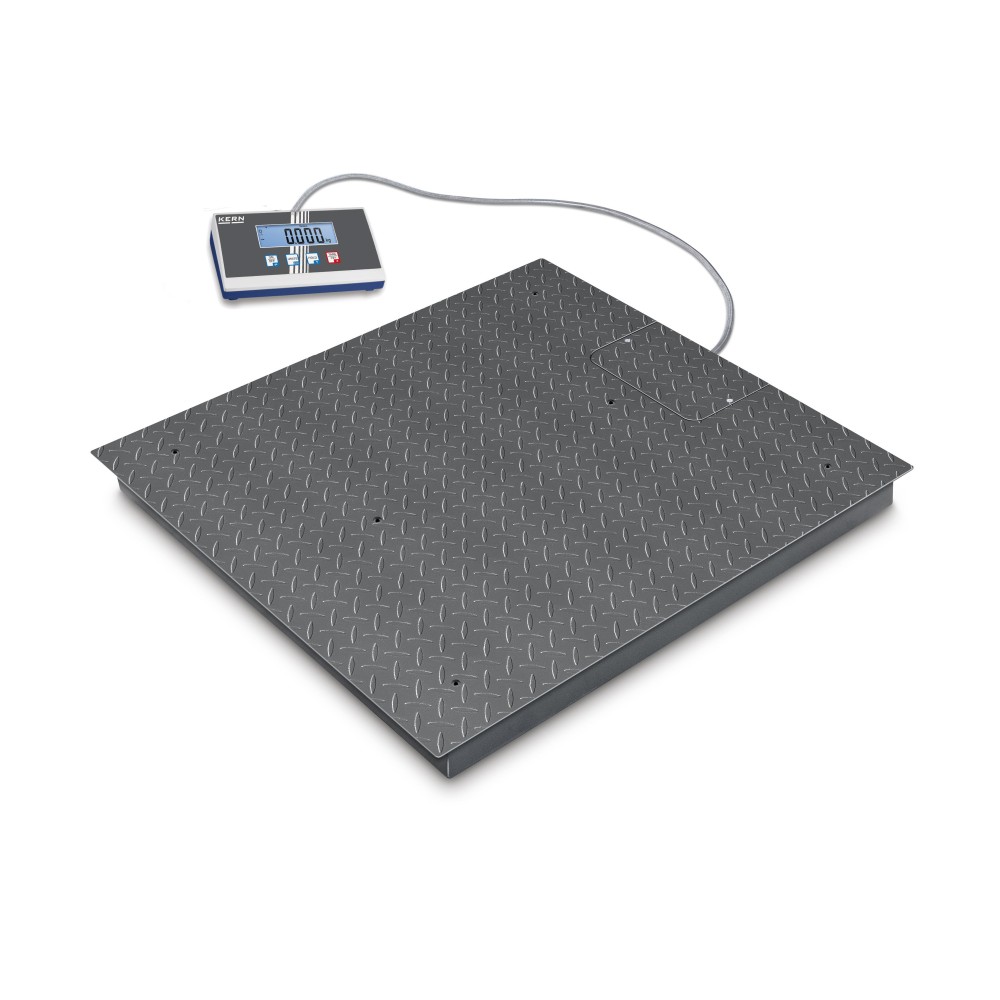

KERN BIC 1T-4S Floor scale IP67

KERN BIC 1T-4S Floor scale IP67

KERN
BIC 1T-4S

Weighing capacity [Max] 600 kg; 1500 kg
Readability [d] 0,2 kg; 0,5 kg
Units kg, lb
Dimensions weighing platform (W×D×H) 1000×1000×108 mm
Dimensions weighing surface (W×D) 1000×1000 mm
Reproducibility 0,2 kg; 0,5 kg
Linearity ± 0,6 kg; 1,5 kg
Ambient temperature -10 °C – 40 °C
Display type LCD
Display digit height 25 mm
Material weighing plate steel, powder-coated
Material platform steel, powder-coated
Display device cable length 5 m
Net weight approx. 70 kg
IP protection - platform IP67
IP protection - load cell IP67
Certificate : without Certificate
Hurry! only 5 items left in stock.
€828.00
€920.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

  • Floor scale: anti-slip corrugated steel plate, 4 silicone-coated steel load cells, protection against dust and water splashes IP67
  • Dual-range balance switches automatically to the next largest weighing range [Max.] and readout [d].
  • Easy levelling of the weighing bridge as well as access to the junction box from above
  • Simple and convenient 4-key operation
  • Wall mount for display device, standard
  • A clever plug-in connector means that you can easily separate the display device and the platform, e.g. for installing the balance in a packing and dispatch bench, pit frame etc. at a later date

Floor scale KERN BIC 1T-4S

  • Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
  • Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
  • IP 67 protection in accordance with DIN EN 60529: Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.
  • Battery operation: The battery type is specified for each device.
  • Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA, AUS
  • Strain gauge measuring system: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Fastening variants (optional)

  • Pair of base plates to fix the weighing bridge to the floor
  • Ascending ramp, steel, powder coated
  • Stable pit frame, steel, powder coated
