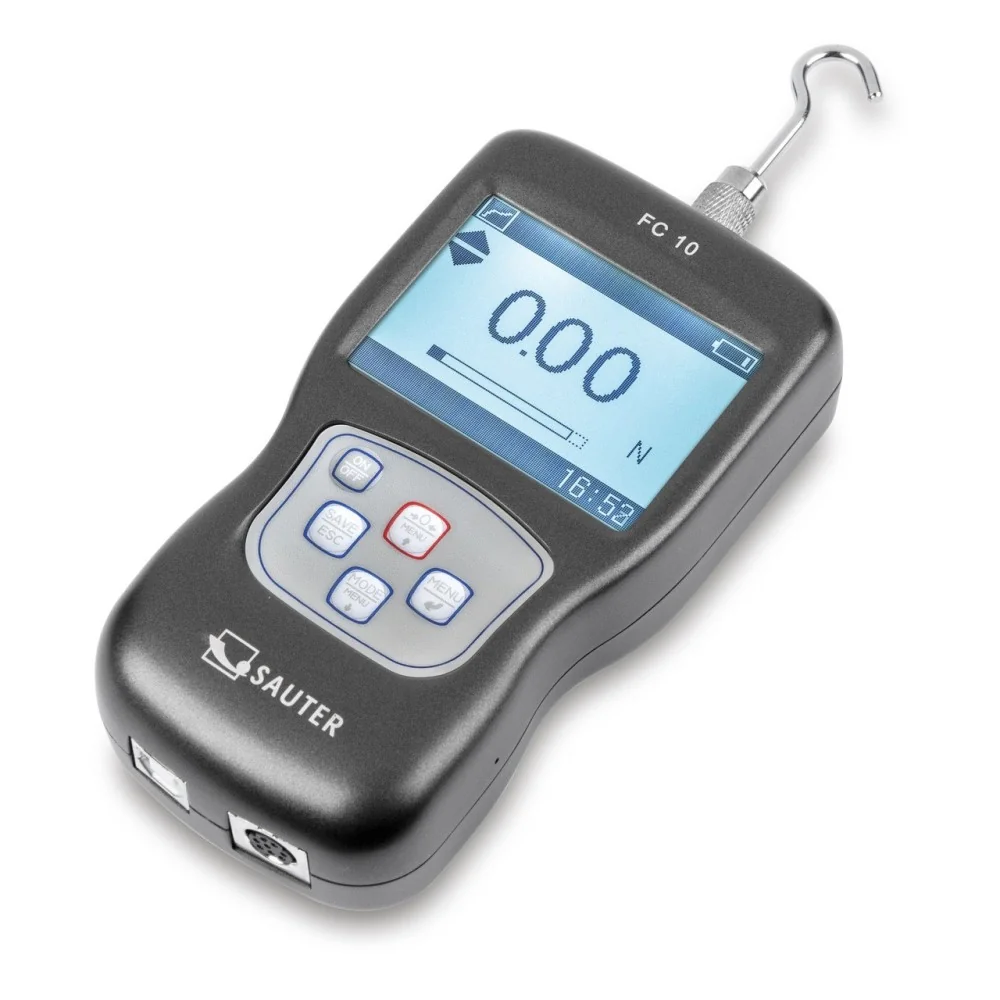

Tensile force gauge SAUTER FC 10

Tensile force gauge SAUTER FC compact in metal housing

• Turnable display with backlight
• Real time or Peak Hold Mode to observe transcients or capture peaks
• Metal housing for durable usage in harsh environmental conditions
• Capacity display: A bar lights up to show how much of the measuring range is still available
• Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed between 10 and 100 % of [Max], in pull and push direction. The process is supported by an acoustic and visual signal
• Safety: If loads exceed 110 % of the measuring range, the device will give clear acoustic and visual signals
• Internal memory for up to 1000 measurements
• USB data interfaces as standard
• Data interface RS-232 (only for connection to the printer)
• Selectable: AUTO-OFF function or permanent operation
• Delivered in a hard carrying case
• Selectable measuring units: N, kg, oz, lb
• Standard attachments: as shown below, extension rod: 90 mm
• Can be mounted on all SAUTER test stands (with adapter plate)

Technical data

• Precision: 0,3 % of [Max]
• Internal measuring frequency: 1000 Hz
• Overload protection: 150 % of [Max]
• Overall dimensions W×D×H 145×73×34 mm
• Thread: M6
• Net weight approx. 0,94 kg
• Permissible ambient temperature -10 °C/40 °C
