Force gauge set with external measuring cell SAUTER FS 2-100OY2
Force gauge set SAUTER FS 2-100OY2
Force gauge set with external measuring cell SAUTER FS 2-100OY2

Force gauge set with external measuring cell SAUTER FS 2-100OY2

SAUTER
€1,320.00 (Save 10%)
€1,188.00
Tax excluded

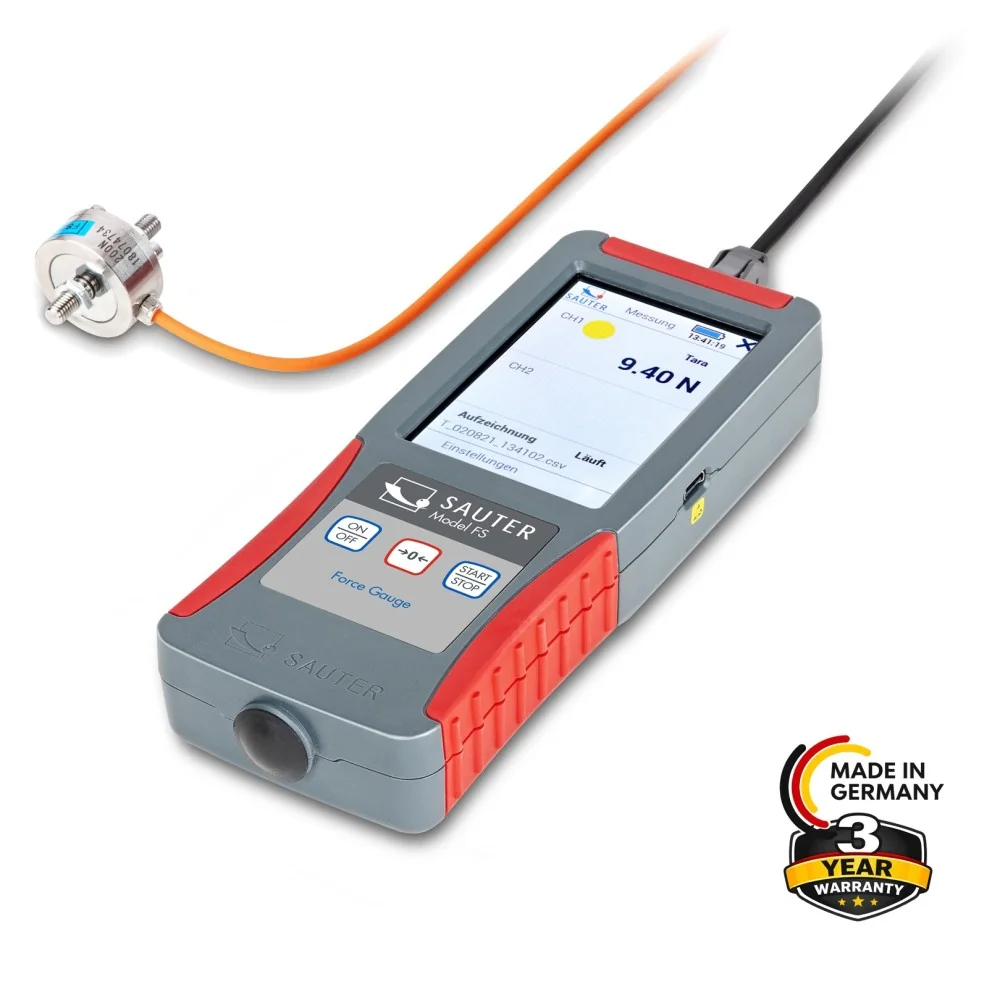

Ready-assembled set consisting of premium force gauge SAUTER FS 2 and external measuring cell CO 10-Y2 (For tensile force and compressive force measurements)

Technical Data

Measuring range force [Max] (N)100 N
Readability force [d] (N)0,02 N
Measuring head measuring frequency1000 Hz
Number of platforms / channels2
Supplied power supplyAccu & Power supply
Rechargeable battery3,7V, 2400mAh
Memory function
Statistic function
Peak function
Material housingplastic
Net weight approx.0,5 kg
InterfacesUSB-Device
Calibration
in stock
Share

Premium force gauge SAUTER FS 2

  • 3,5" touchscreen with touch pen
  • Measurement of forces in different tensile or compression directions possible with only one measuring device
  • Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
  • The specific data of an external sensor are stored directly in the connector
  • Track function for continuous measurement display
  • Peak value measurement
  • Tolerance function
  • Internal device memory (16 GB)
  • USB interface for data transfer and power supply as standard
  • Two-point adjustment with weights or numerical adjustment possible
  • Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C

Miniature cylindrical load cell made from stainless steel SAUTER CO 10-Y2

Weighing capacity [Max]10 kg
Measuring range force [Max] (N)100 N
DesignTension-/compression rod
Directions of forcetension, compression
Measuring applicationsforce, mass
Load cell - Combined error0,5%
Load cell OIML classG5
Load cell - characteristic value - nominal1 mV/V
IP protection - complete deviceIP65
Materialsteel, stainless
Load cell connection4-wire
Cable length2 m
Mounting - force applicationExternal thread M5
Mounting - force dissipationExternal thread M5

  • Brand
  • Reference
    FS 2-100OY2
