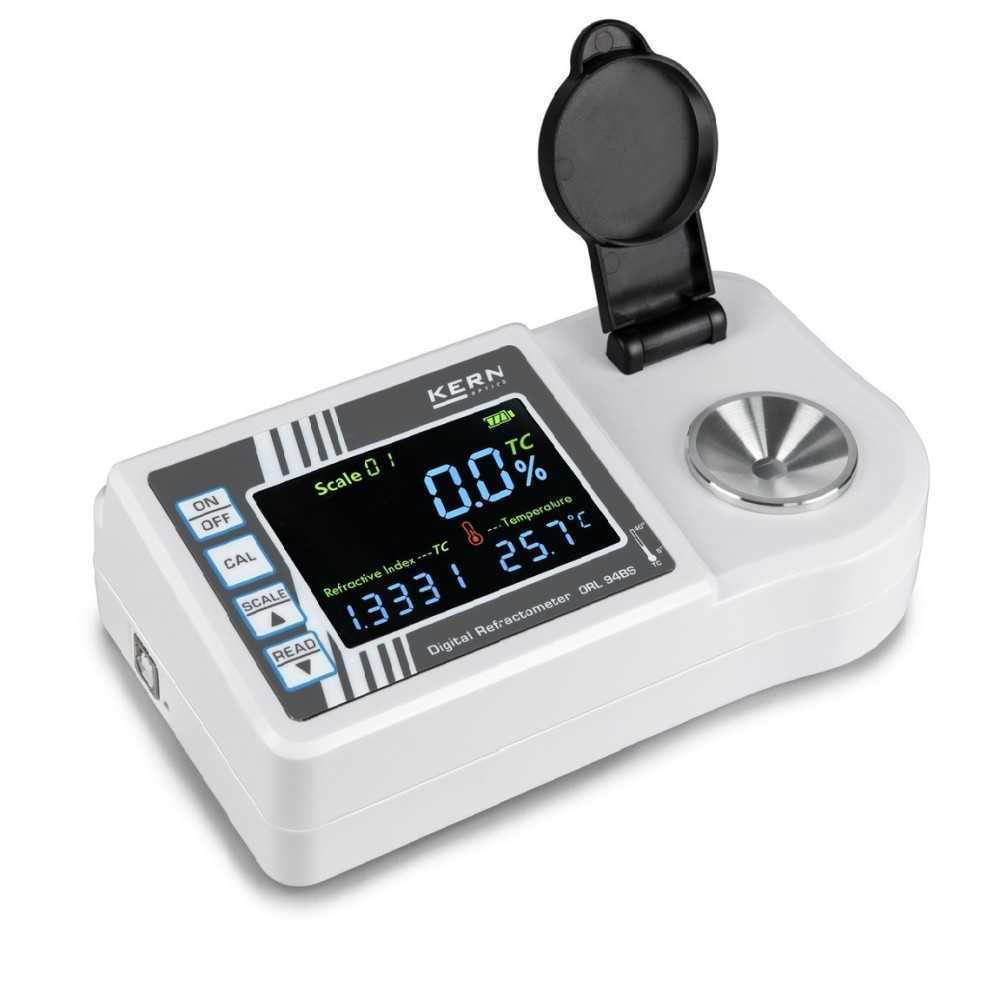

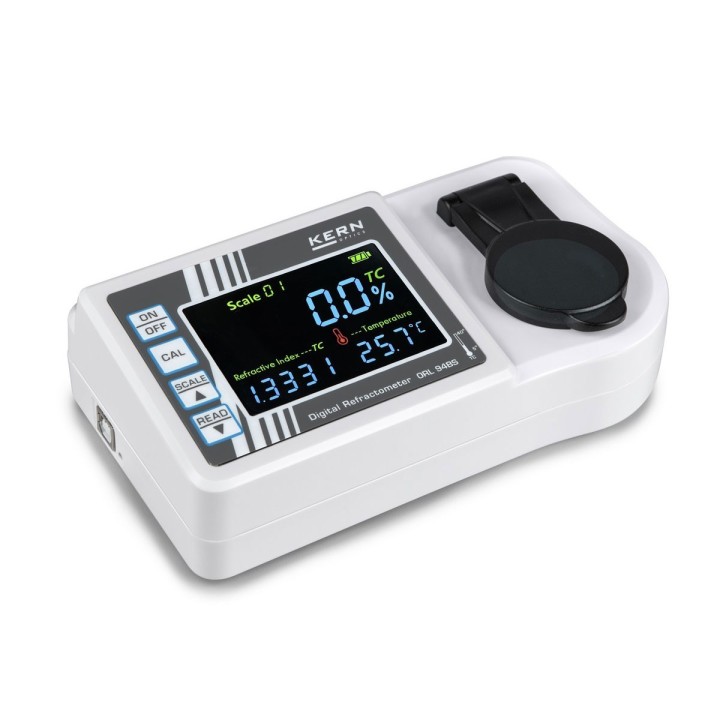

The KERN ORL 94IN is a accurate, universal and maintenance-free digital desktop refractometer
Other key features are the extra-large measuring range and a high degree of accuracy
With their handy design, they are ideal for convenient and rapid everyday use
The large, easy-to-read display with integrated temperature display supports the user to reliably determine the measurement
The integrated automatic temperature compensation (ATC), avoids the manual conversion of the measurement. This allows a quick and efficient usage of the instrument
A quick and user-friendly calibration of the refractometer is possible at any time using commercially available distilled water
Mean value measurements possible
Technical Data
Refractometer type | Desktop refractometer |
Scale - Display type | Digital |
Area of application | Automotive / Industry |
Measuring method | Total reflection |
Measurement temperature (°C) | 0 °C – 40 °C |
Automatic temperature compensation (ATC) | |
IP protection - complete device | IP43 |
Dimension (W×D×H) | 180×100×55 mm |
Brix scale | |
Measuring range Brix | 0 % – 94 % |
Readout Brix | 0,1 % |
Scale for Refractive index | |
Measuring range refractive index | 1,3330 nD – 1,5290 nD |
Readout refractive index | 0,0001 nD |
Scale batterie fluid | |
Meausring range batterie fluid | 1,000 kg/l – 1,500 kg/l |
Readout batterie fluid | 0,001 kg/l |
Scale for ethylene glycol (%) | |
Measuring range ethylene glycol (%) | 0 % – 100 % |
Readout ethylene glycol (%) | 0,1 % |
Scale for ethylene glycol (°C) | |
Measuring range ethylene glycol (°C) | -50 °C – 0 °C |
Readout ethylene glycol (°C) | 0,1 °C |
Scale propylene glycol (%) | |
Measuring range propylene glycol (%) | 0 % – 100 % |
Readout propylene glycol (%) | 0,1 % |
Scale propylene glycol (°C) | |
Measuring range propylene glycol (°C) | -60 °C – 0 °C |
Readout propylene glycol (°C) | 0,1 °C |
Scale windshield washer fluid | |
Measuring range windshield washer fluid | -60 °C – 0 °C |
Readout windshield washer fluid | 0,1 °C |
