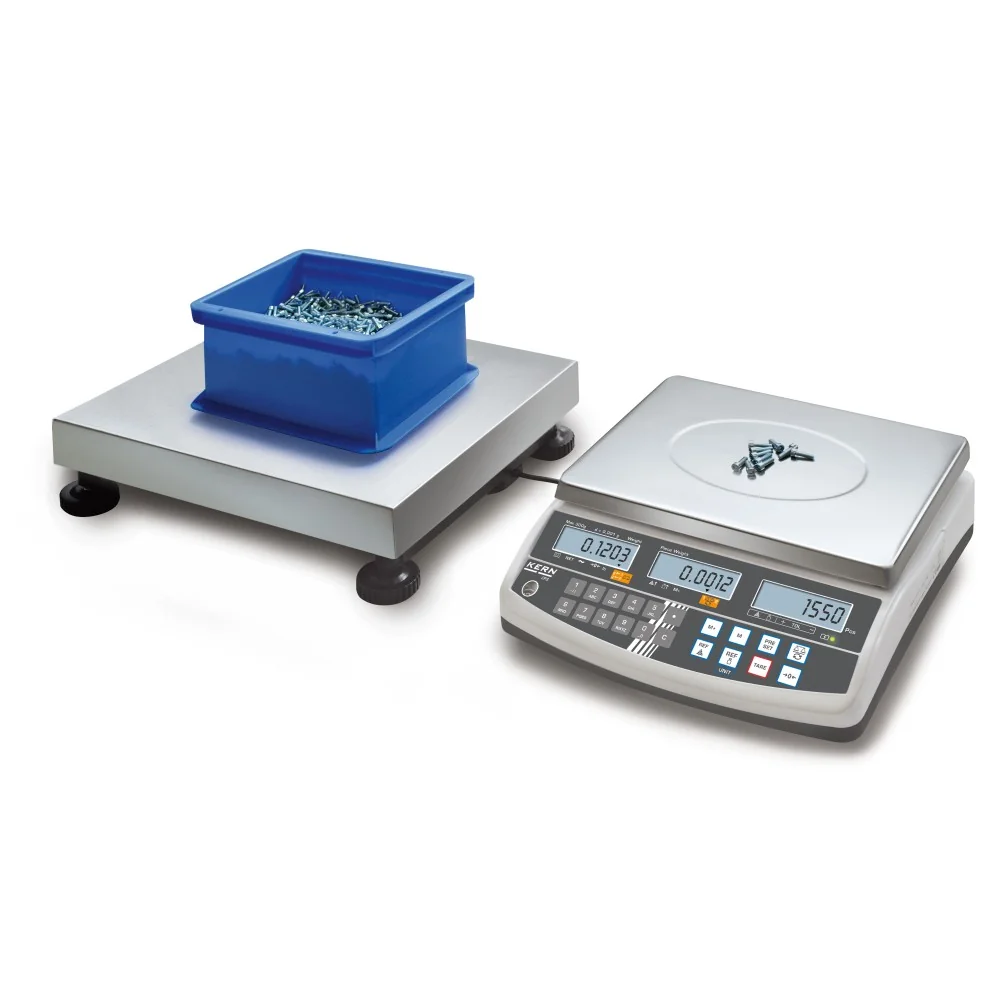

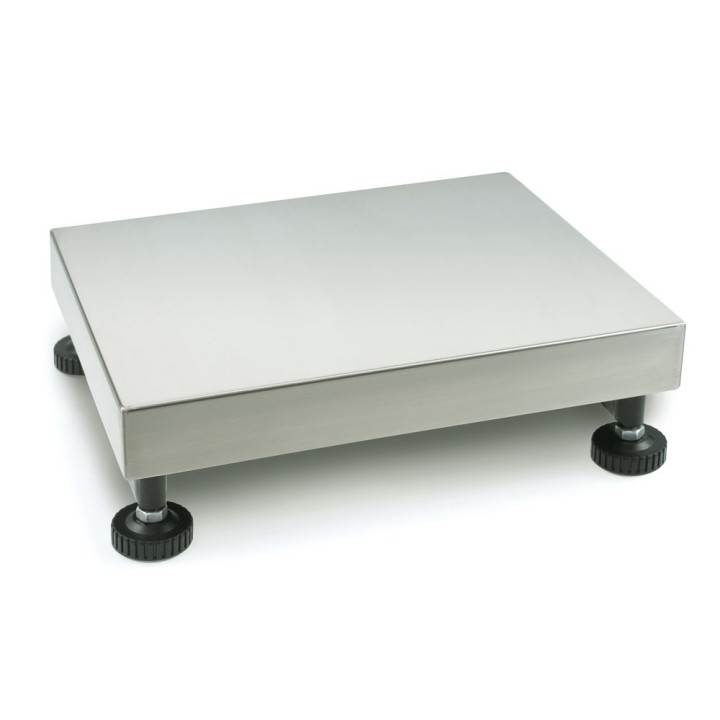

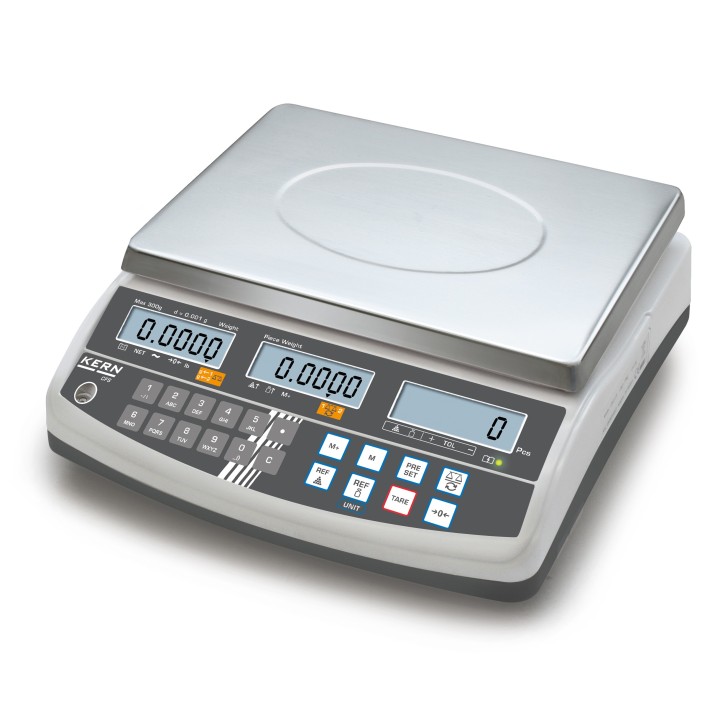

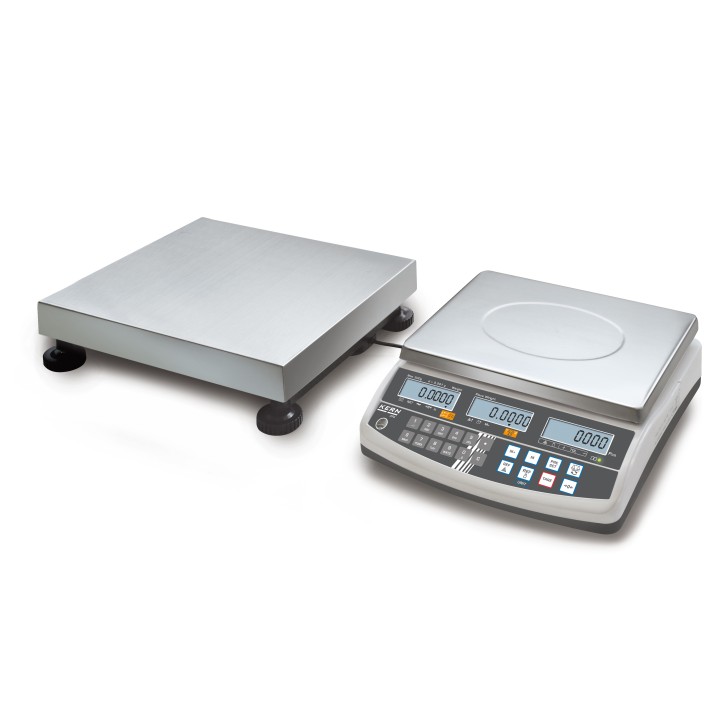

Counting scale system KERN CCS 150K0.01
CCS 150K0.01
Counting system to count the smallest parts in large quantities, maximum number of parts which can be displayed is 999,999
TECHNICAL DATA
Quantity scale - Weighing capacity [Max] | 150 kg |
Reference scale - Readability [d] | 10 mg |
Units | kg, lb |
Dimensions weighing platform (W×D×H) | 500×400×124 mm |
Dimensions weighing surface (W×D) | 500×400 mm |
Reproducibility | 0,00002 kg |
Reference scale - Linearity | 100 mg |
Quantity scale - Linearity | 0,02 kg |
Ambient temperature | 0 °C – 40 °C |
Smallest piece weight when piece counting - normal conditions | 500 mg |
Display type | LCD |
Display digit height | 20 mm |
Material weighing plate | stainless steel |
Display device cable length | 3 m |
Material housing | plastic |
Net weight approx. | 13 kg |
IP protection - display | IP23 |
IP protection - platform | IP65 |
IP protection - load cell | IP65 |
