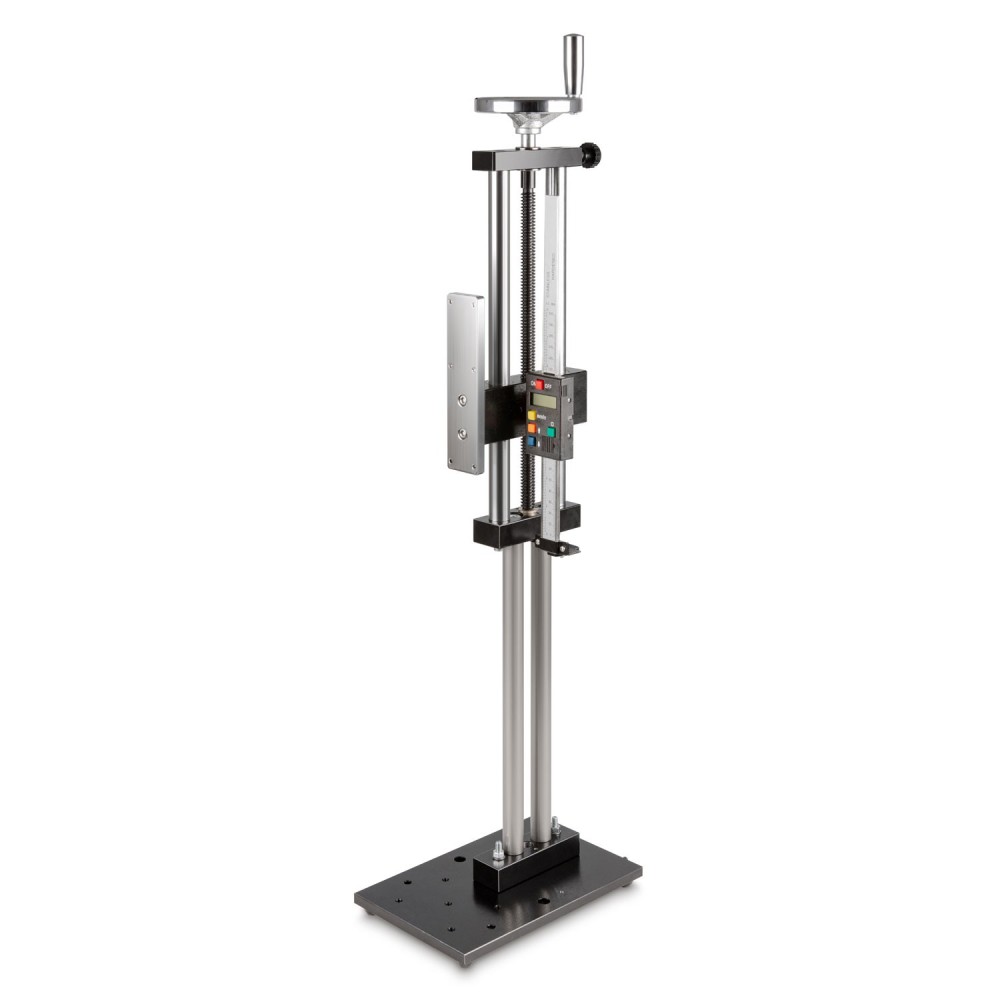

SAUTER TVL-XLS mechanical test stand with length measurement

Name: SAUTER TVL-XLS mechanical test stand with length measurement
Brand: SAUTER
SKU: TVL-XLS
Price: 684 EUR
Availability: InStock

SAUTER

€760.00 (Save 10%)

€684.00

Tax excluded

Mechanical test stand for highly accurate tensile and compressive force measurements, with length measurement

Technical Data SAUTER TVL-XLS

Generated force [Max]	500 N
Traverse distance [Max]	230 mm
Type of drive	mechanical crank handle
Length measuring device	Length measuring device with display
Material housing	metal, lacquered
Dimensions completely mounted (W×D×H)	200×300×800 mm
Travel distance per knob rotation (stroke per one turn)	3 mm

Set consisting of test stand SAUTER TVL and extension kit SAUTER TVL-XL. This extends the working area by 340 mm, so that larger test pieces can also be measured. The traverse distance (spindle height from base plate) remains the same

For vertical and horizontal use

Precise measurement results

High level of security at repeated measurements

Large base plate with high versatility of fastening objects

Suitable for all SAUTER force measuring devices with internal measuring cell up to 1000 N (not included in delivery)

Digital length meter SAUTER LA (without interface) as standard

- Measuring range: max. 200 mm

- Readability: 0,01 mm

- Zero setting possible

- Pre-length can be set manually
