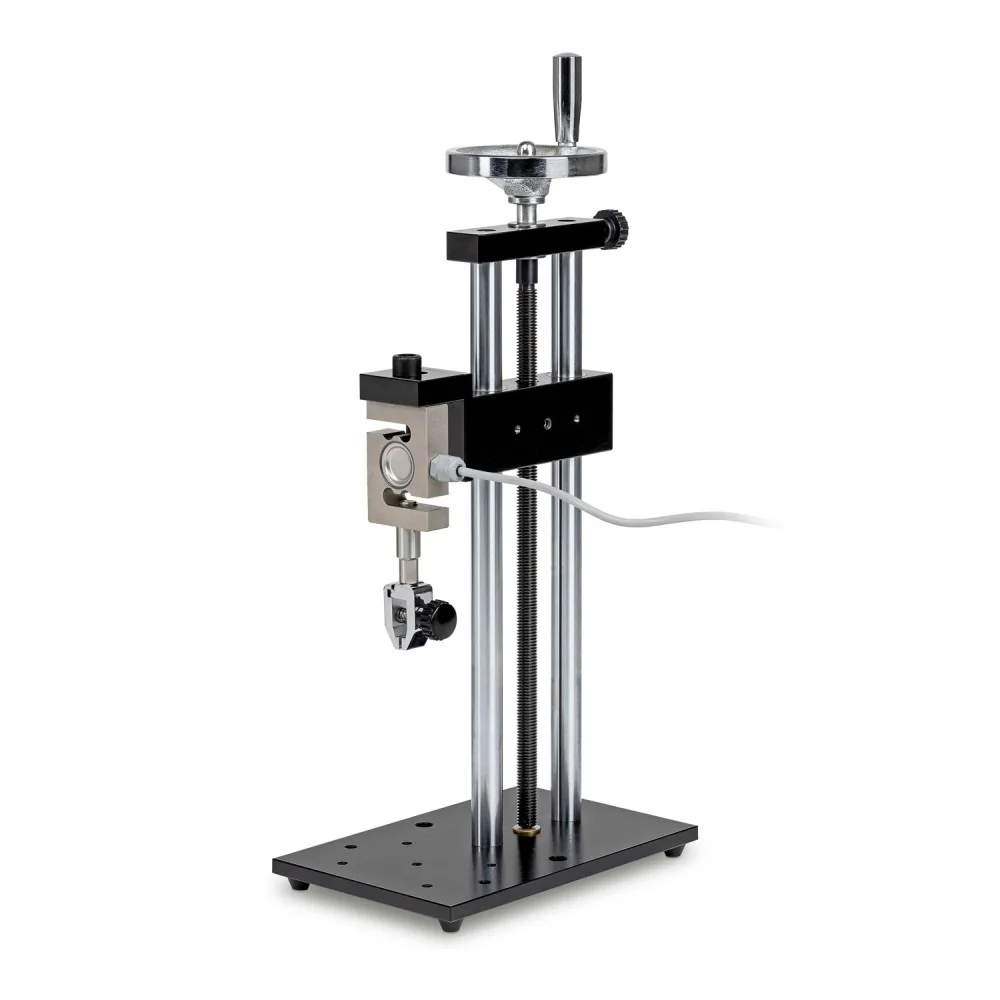

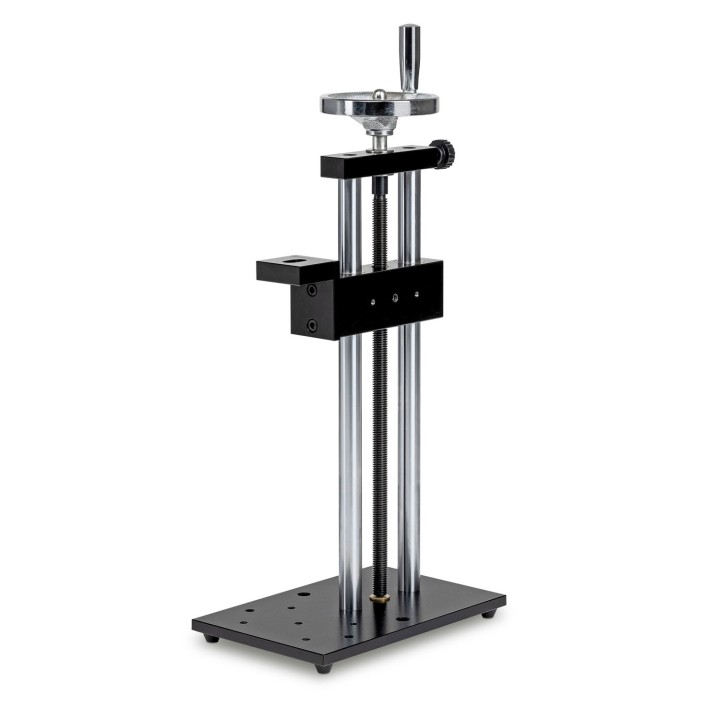

SAUTER TVL-E mechanical test stand for external cell
549.00 €Save 10%
610.00 €
Tax excluded
Mechanical test stand for force gauges with an external measuring cell
Technical Data SAUTER TVL-E
| Generated force [Max] | 2 kN |
| Traverse distance [Max] | 290 mm |
| Type of drive | manual crank handle |
| Length measuring device | Length measuring device with display and data interface (optional) |
| Material housing | metal, lacquered |
| Dimensions completely mounted (W×D×H) | 154×240×550 mm |
| Measurement alignment | vertical |
| Travel distance per knob rotation (stroke per one turn) | 2 mm |
For vertical and horizontal use
Precise measurement results
High level of security at repeated measurements
Large base plate with high versatility of fastening objects
Suitable for all SAUTER force measuring devices with external measuring cell up to 2000 N (not included in delivery)
TVL-E
Mechanical test stand for force gauges with an external measuring cell
Technical Data SAUTER TVL-E
| Generated force [Max] | 2 kN |
| Traverse distance [Max] | 290 mm |
| Type of drive | manual crank handle |
| Length measuring device | Length measuring device with display and data interface (optional) |
| Material housing | metal, lacquered |
| Dimensions completely mounted (W×D×H) | 154×240×550 mm |
| Measurement alignment | vertical |
| Travel distance per knob rotation (stroke per one turn) | 2 mm |
