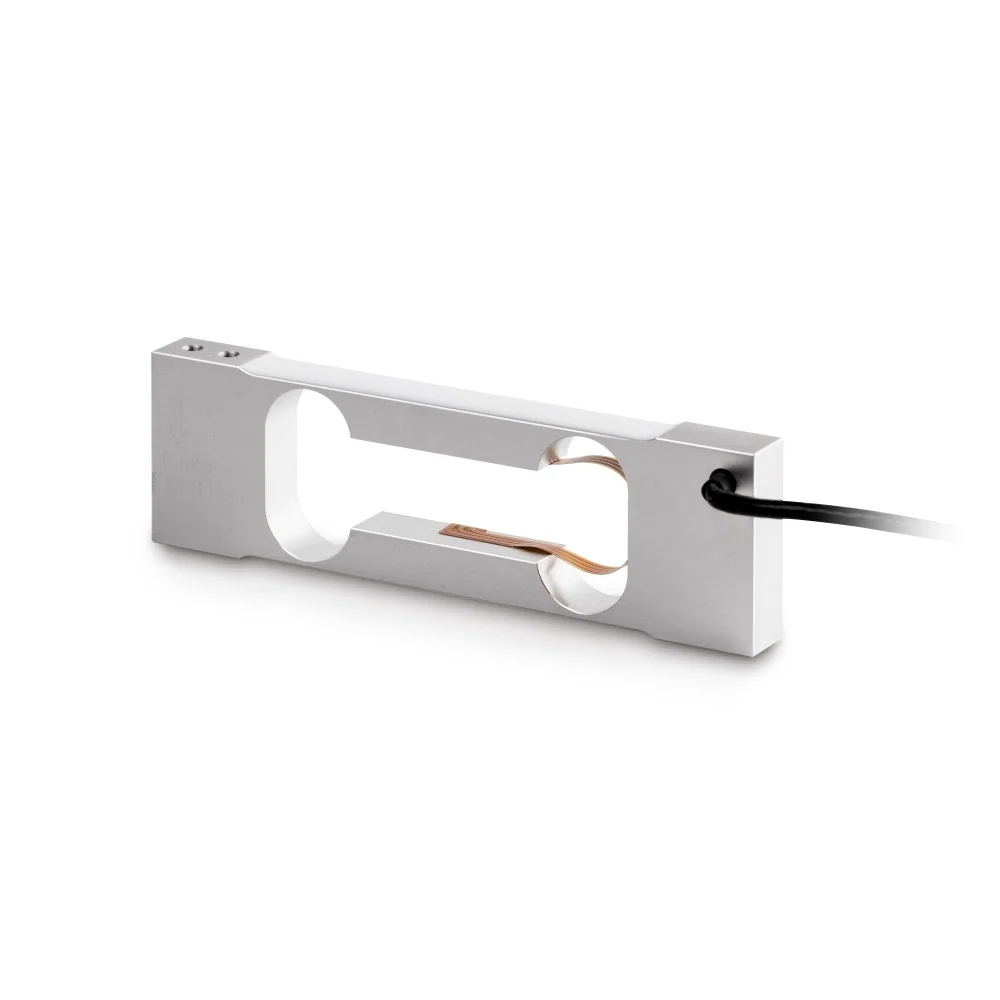

Singlepoint load cell SAUTER CP-P4
60.00 €
Tax excluded
- CE and RoHS compliant
- Accuracy class L
- protection against dust and water splashes IP65 (in accordance with EN 60529)
- Aluminium, anodised
- Suitable for price-computing scales, bench scales, platform scales, etc.
- Maximum platform size 200×200 mm
- 4-wire connection
- Nominal sensitivity: 0,9 mV/V
Aluminium singlepoint load cell SAUTER CP-P4
- Cable length: 40 cm
- Dimensions (W×D×H): 110 x 33 x 10 mm
- Dimensions of weighing plate (W×D×H): 200 x 200 mm
Measuring system
- Load cell connection: 4-wire
- Nominal sensitivity: 0,900
- OIML class: L
- Resolution Load cell – Verifiable: 3000 e
- Weighing capacity [Max]: 300 g
- Y value: 4667
Models
- CP 300-0P4 - 0,3 kg
- CP 600-0P4 - 0,6 kg
CP-P4
