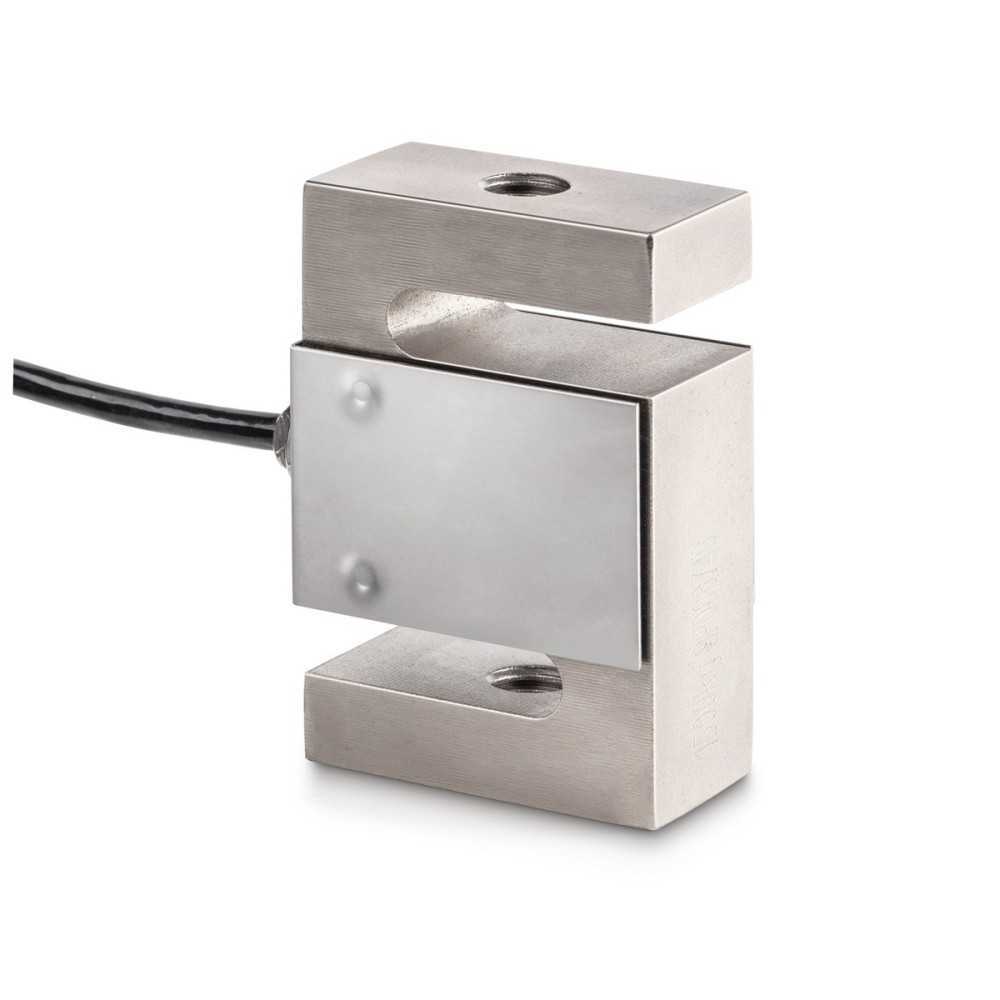

Load and force measuring cell SAUTER CS 50-3P1

Load and force measuring cell SAUTER CS 50-3P1

SAUTER
€200.00 (Save 10%)
€180.00
Tax excluded

4-wire “S” measuring cell made of nickel-plated steel for force and mass measurement

Technical Data

Weighing capacity [Max]50 kg
Measuring range force [Max] (N)500 N
Design"S" shaped cell
Directions of forcetension, compression
Measuring applicationsforce, mass
Load cell - Combined error0,02%
Load cell OIML classC3
Load cell - Resolution (verifiable)3000 e
Load cell - Y-value10000
Load cell - characteristic value - nominal2 mV/V
IP protection - complete deviceIP67
Materialsteel, nickel-plated
Load cell connection4-wire
Cable length3 m
Mounting - force applicationThreaded hole M8
Mounting - force dissipationThreaded hole M8
in stock
Share

  • RoHS compliant
  • Area of application: for tensile and compressive force measurement
  • Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test stands

Field of application / Area of application

  • Mechanical engineering and plant construction
  • Testing technology and material testing
  • Conveyor technology and logistics
  • Container and silo weighing
  • Medical technology and research

  • Brand
  • Reference
    CS 50-3P1
  • EAN13
    4045761221567
