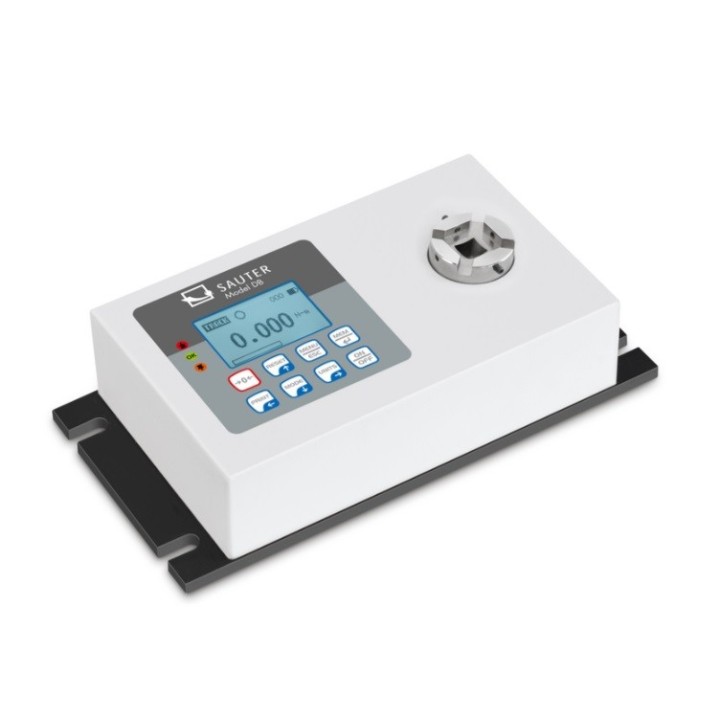

SAUTER DB 500-2 Torque gauge
Convenient way to test the torque of tools
Technical Data
Measuring range torque | 25 Nm – 500 Nm |
Readability torque [d] (Nm) | 0,1 Nm |
Tolerance (% of [Max]) | 0,5% |
Units | Nm, kgf/cm, kgf/m, in/lbs, ft/lbs |
Supported torque pickups | 3/4 " |
Overload protection (% of [Max]) | 120% |
Memory function | |
Internal data memory: Number of individual values | 500 |
Peak function | |
Limit-setting function | |
Internal measuring frequency | 1000 Hz |
Supplied power supply | Accu & Power supply |
Battery / accumulator type | NiMH |
Rechargeable battery operating time - backlight off | 18 h |
Auto-off interval(s) in battery mode/rechargeable battery mode | 1 - 60 min |
Interfaces | RS-232 standard, USB-Device |
Display type | LCD graphic |
Display resolution | 128×64 |
Material housing | metal, lacquered |
Dimension (W×D×H) | 200×100×50 mm |

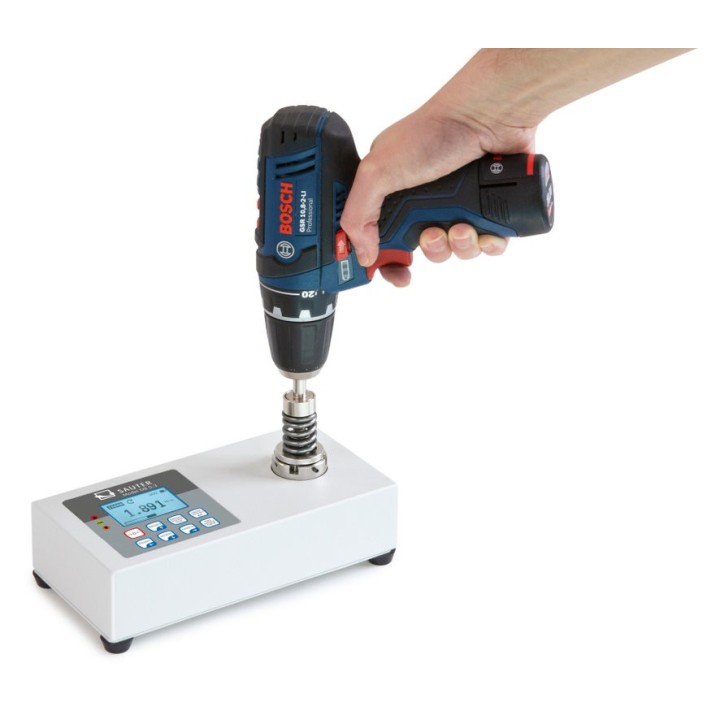

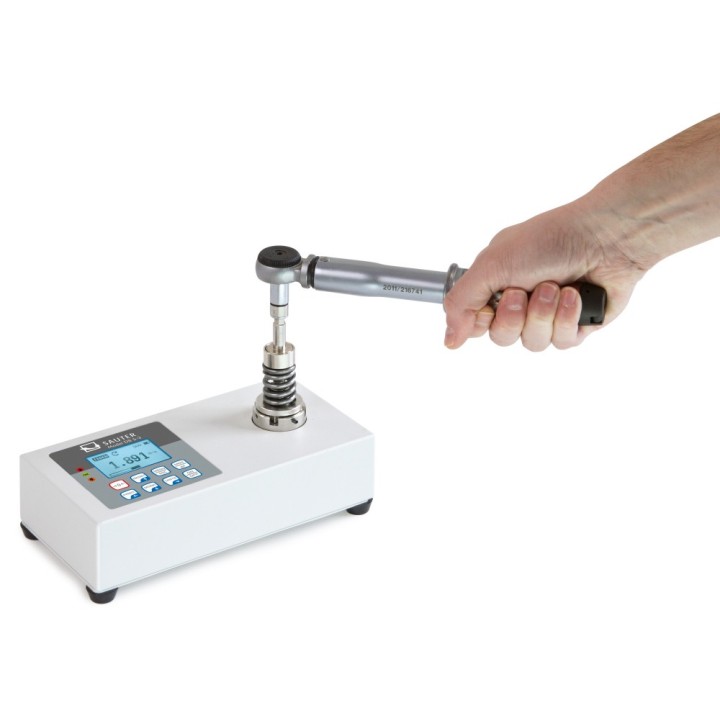

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers
Metal housing for durable use in harsh environmental conditions
Capacity display: A bar lights up to show how much of the measuring range is still available

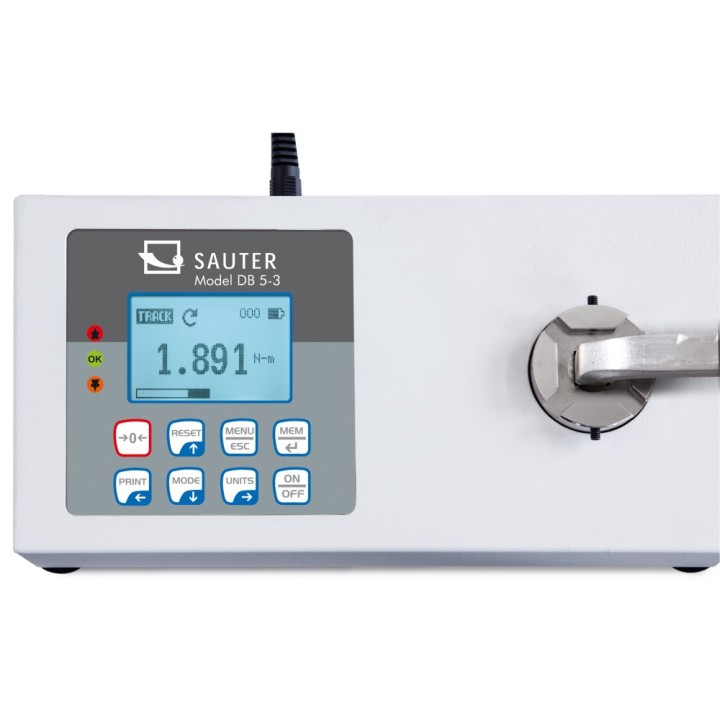

LCD graphics display with backlight
Stable mounting plate for solid fixation
Data interface USB and RS-232 included
Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software
Peak-Hold function to capture the peak value or Track function for continuous display of measurement
Can be used in both directions of rotation
Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
AUTO-OFF function

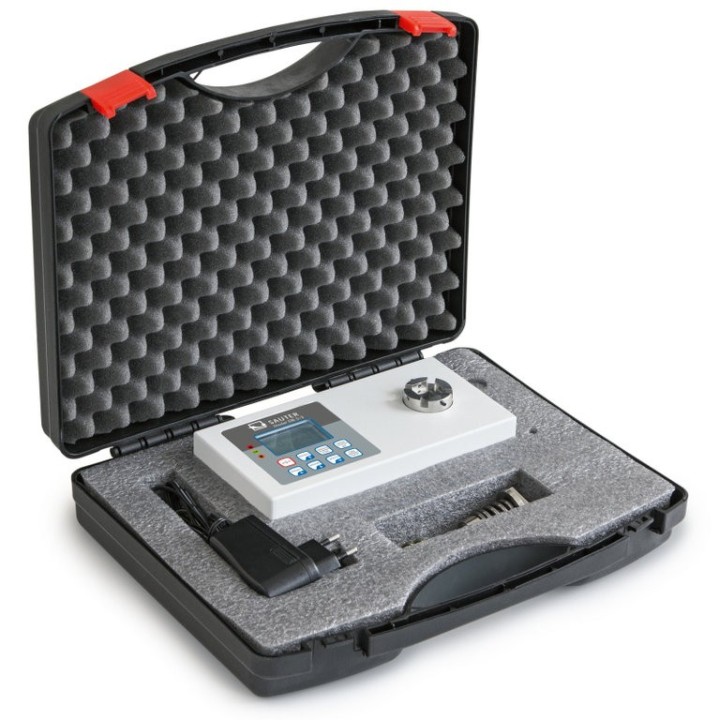

Scope of delivery: Torque pick-up, sturdy carry case, mounting plate
Specific References
- EAN13
- 4045761193499
