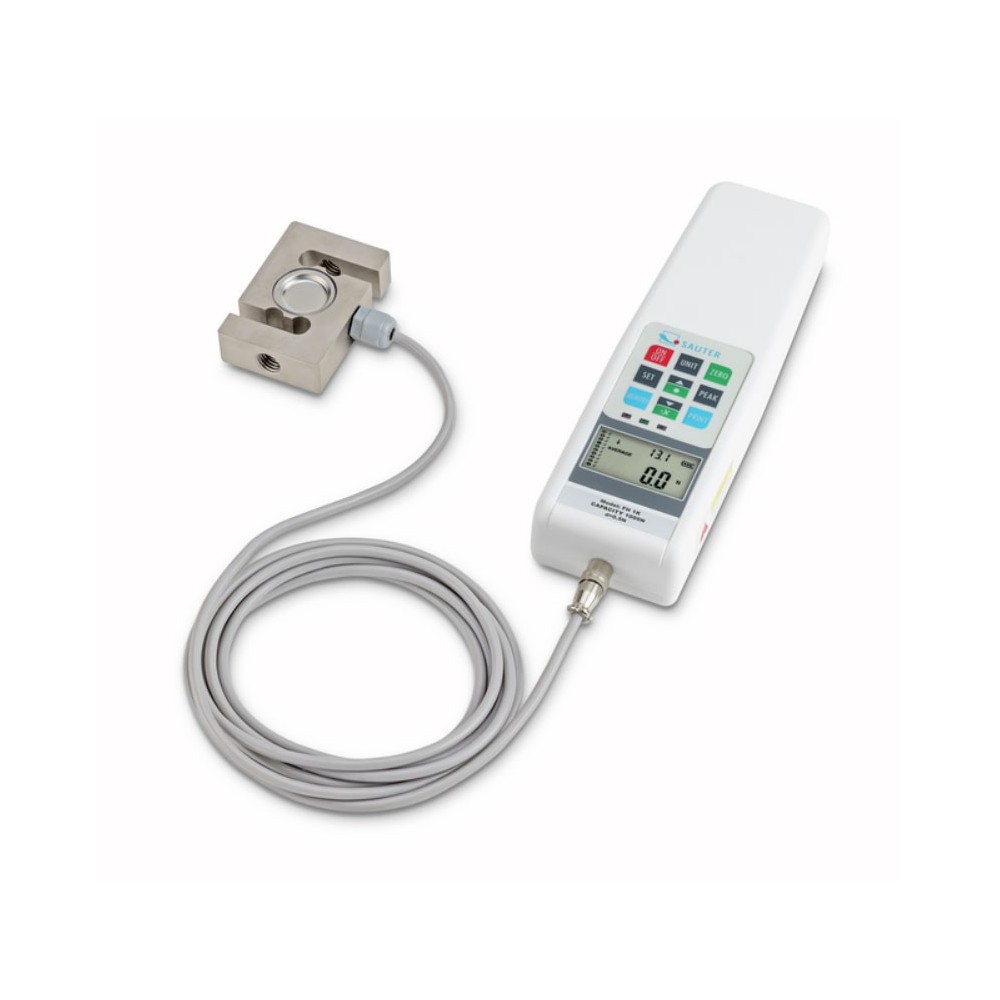

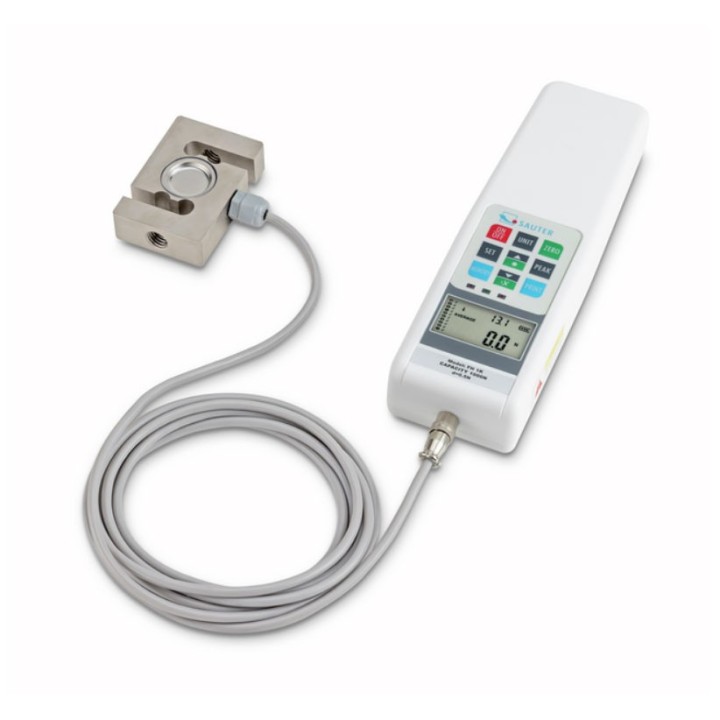

SAUTER FH 20K force gauge with external load cell


SAUTER FH 20K force gauge with external load cell

SAUTER
FH 20K

Universal digital force gauge for tensile and compressive force measurements with external load cell

Technical Data SAUTER FH 20K

Measuring range force [Max] (N) 20 kN
Readability force [d] (N) 10 N
Tolerance (% of [Max]) 0,5%
Measuring head measuring frequency 2 kHz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Rechargeable battery 8,4V / 1200mAh Ni-Hi
Memory function
Statistic function
Limit-setting function
Hold function
Peak function
Dimensions completely mounted (W×D×H) 230×66×36 mm
Interfaces RS-232 standard
Cable length 3 m
Certificate : without Certificate
Hurry! only 5 items left in stock.
€1,350.00
€1,500.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Peak hold function: capturing a peak value within a measuring process. Push and Pull: the measuring device can capture tension and compression forces. Memory: Balance contains memories, e.g. for tare weights, weighing data, item data, PLU etc. Data interface RS-232: To connect the balance to a printer, PC or network Statistics: using the saved values, the device calculates statistical data, such as average value, standard deviation etc. Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning. Return display to zerosetting Rechargeable battery pack: rechargeable set Mains adapter: 230V/50Hz in standard version for Germany. On request GB or USA version. 2 years warranty

Turnable display with backlight

NEW: USB interface for data transfer and power supply as standard

Data interface RS-232 as standard

Selectable measuring units: N, kN, kgf, tf

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal

Auto-Power-Off

Internal memory for up to 10 measurement values

Mini Statistics Kit: calculates the average result from up to 10 stored measured values, as well as min., max., n

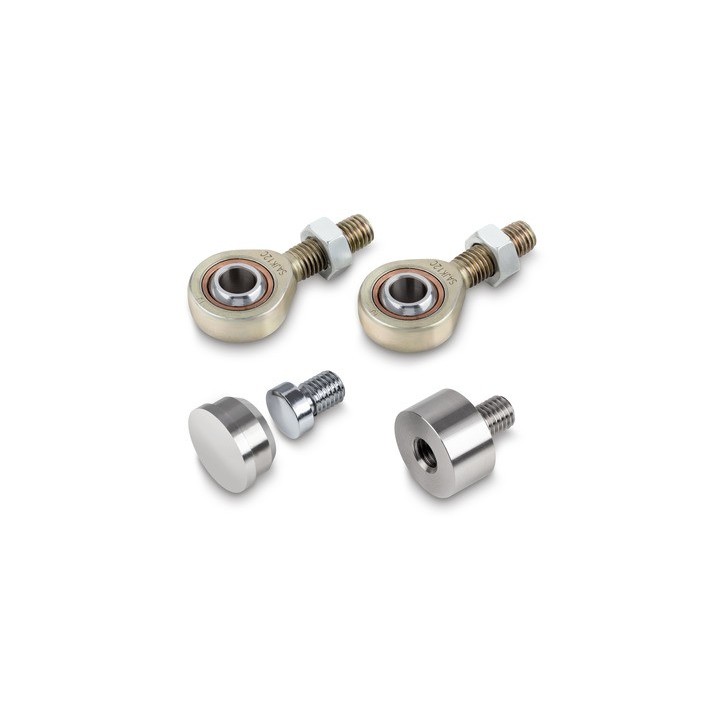

Tension loops and compression plates are included in delivery

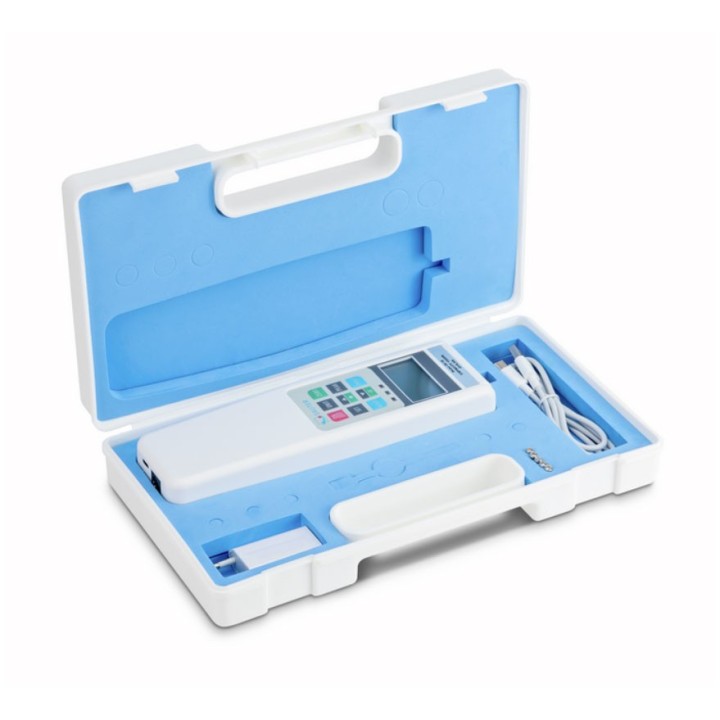

Delivered in a robust carrying case

: FH 20K
