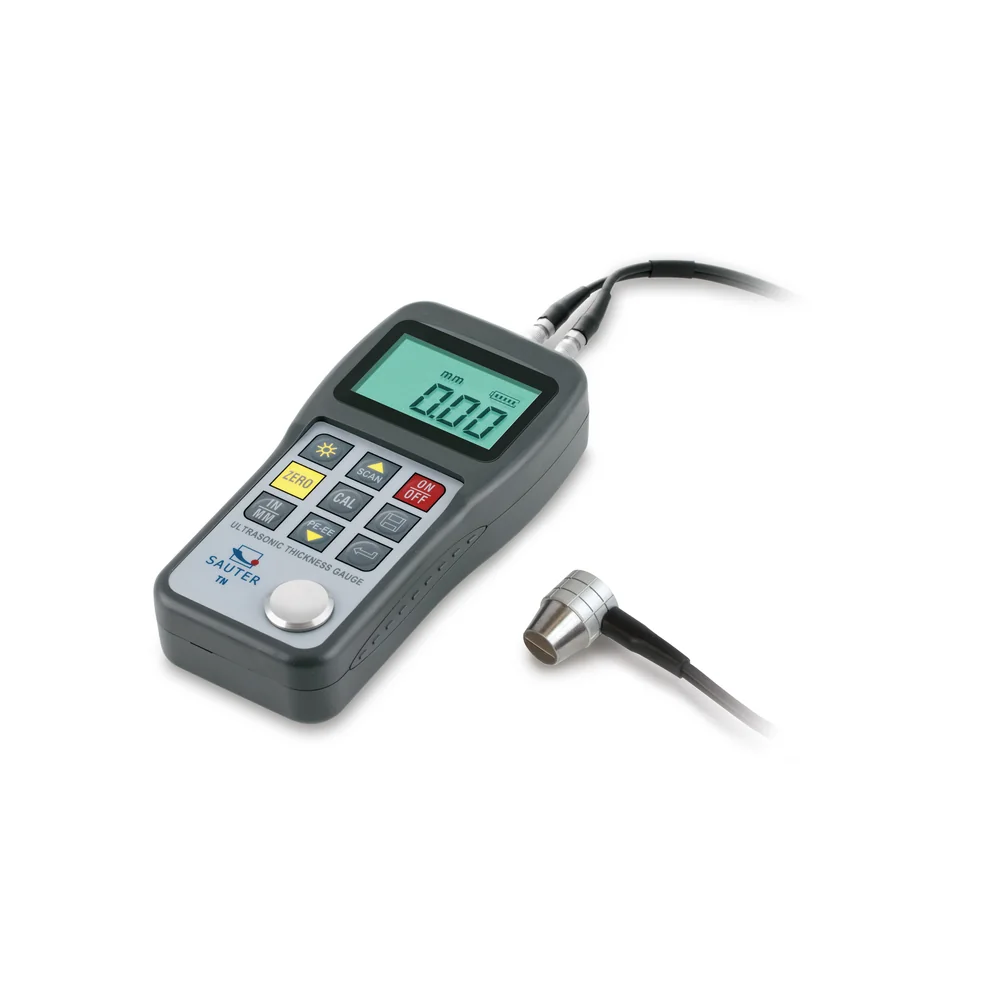

SAUTER TN 230-0.1US Ultrasonic thickness gauge
567.00 €Save 10%
630.00 €
Tax excluded
Portable measuring device for ultrasonic material thickness testing
TECHNICAL DATA
| Material thickness pulse-echo [Max] (mm) | 230 mm |
| Material thickness pulse-echo [Min] (mm) | 1,2 mm |
| Measuring range pulse-echo | 1,2 mm – 230 mm |
| Measuring range echo-echo | – |
| Readability material thickness [d] (mm) | 0,1 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound [Max] (m/s) | 9999 m/s |
| Speed of sound [Min] (m/s) | 1000 m/s |
| Speed of sound | 1000 m/s – 9999 m/s |
| Measuring head measuring frequency | 5 MHz |
| Battery | 2×1.5 V AA |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 150×74×32 mm |
| Cable length | 0,9 m |
- External measuring head
- Data interface USB standard
- Scan mode (10 measurements per sec.) or single point measuring mode possible
- Internal memory for up to 20 files (with up to 100} values per file)
- Selectable measuring units: mm inch
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel
- Delivered in a robust carrying case
TN 230-0.1US.
Specific References
- EAN13
- 4045761139879
