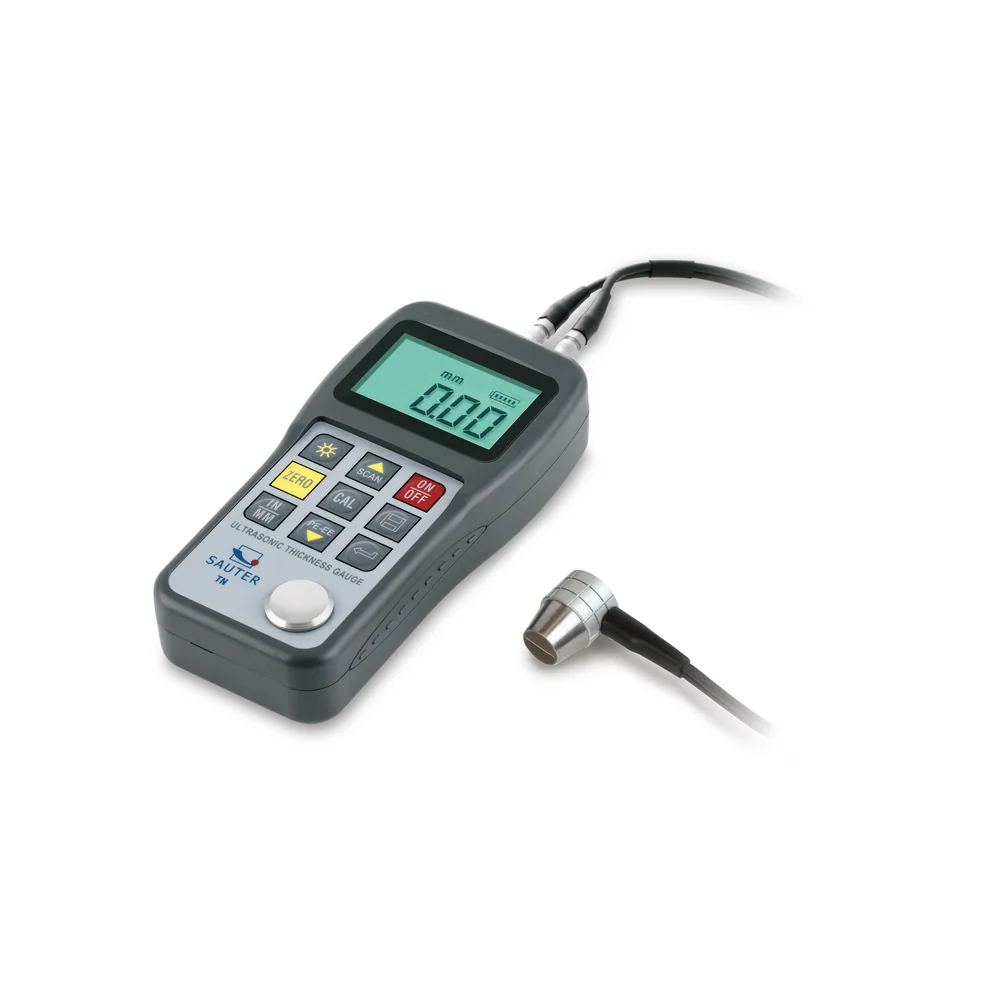

SAUTER TN 300-0.01US Ultrasonic thickness gauge
SAUTER TN 300-0.01US Ultrasonic thickness gauge

SAUTER TN 300-0.01US Ultrasonic thickness gauge

SAUTER
€800.00 (Save 10%)
€720.00
Tax excluded

Portable measuring device for ultrasonic material thickness testing

TECHNICAL DATA

Material thickness pulse-echo [Max] (mm)300 mm
Material thickness pulse-echo [Min] (mm)3 mm
Measuring range pulse-echo3 mm – 300 mm
Measuring range echo-echo–
Readability material thickness [d] (mm)0,01 mm
Tolerance (% of [Max])0,5%
Unitsmm, inch
Speed of sound [Max] (m/s)9999 m/s
Speed of sound [Min] (m/s)1000 m/s
Speed of sound1000 m/s – 9999 m/s
Measuring head measuring frequency2,5 MHz
Battery2×1.5 V AA
Material housingplastic
Dimensions completely mounted (W×D×H)150×74×32 mm
Cable length0,9 m
Product familyTN-US
Calibration
in stock
Share

  • External measuring head
  • Data interface USB standard
  • Scan mode (10 measurements per sec.) or single point measuring mode possible
  • Internal memory for up to 20 files (with up to 100} values per file)
  • Selectable measuring units: mm inch
  • Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel
  • Delivered in a robust carrying case

  • Brand
  • Reference
    TN 300-0.01US
