Set for force-displacement-measurements SAUTER TVS 50KN80-LD


Set for force-displacement-measurements SAUTER TVS 50KN80-LD

SAUTER
TVS 50KN80-LD

Practical set for force-displacement-measurements in laboratory and industry

Technical Data SAUTER TVS 50KN80-LD

Generated force [Max] 50 kN
Traverse distance [Max] 210 mm
Type of drive Stepper motor
Length measuring device Length measuring device with data interface
Input voltage power supply / power [Max] 230 V AC, 50 Hz
Limit switch
Repeat function
Speed display
Material housing metal, lacquered
Dimensions completely mounted (W×D×H) 480×255×1670 mm
Transversal movement speed [Min] 1 mm/min
Transversal movement speed [Max] 70 mm/min

Set includes:

  • Premium motorised test stand up to 50 kN
  • length measuring system LD
  • interface cable
  • data transfer software AFH LD
  • interface converter AFH 12
  • mounting for force gauge

Detailed description of the SAUTER TVS

please select the appropriate measuring device

Hurry! only 11 items left in stock.
€10,161.00
€11,290.00
Save 10%
Tax excluded
Quantity

in stock

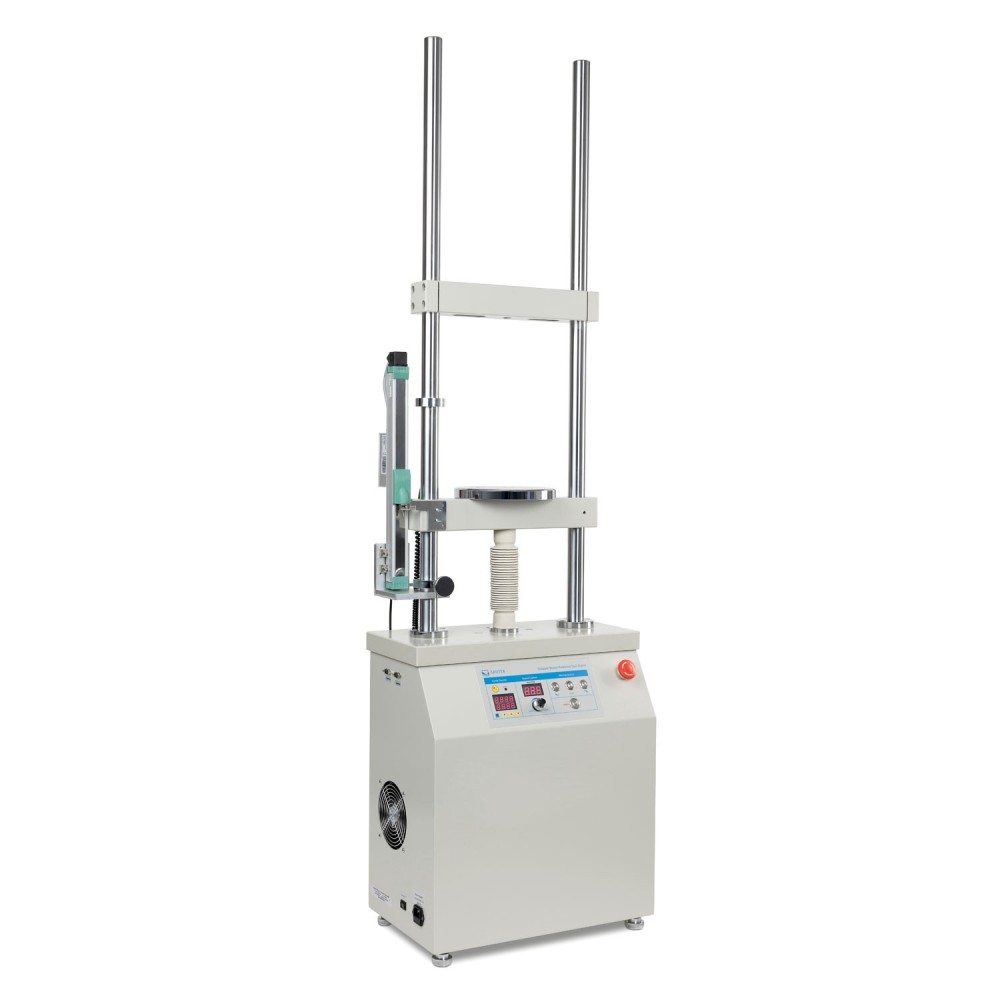

Five in one – premium motorised test stand, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting

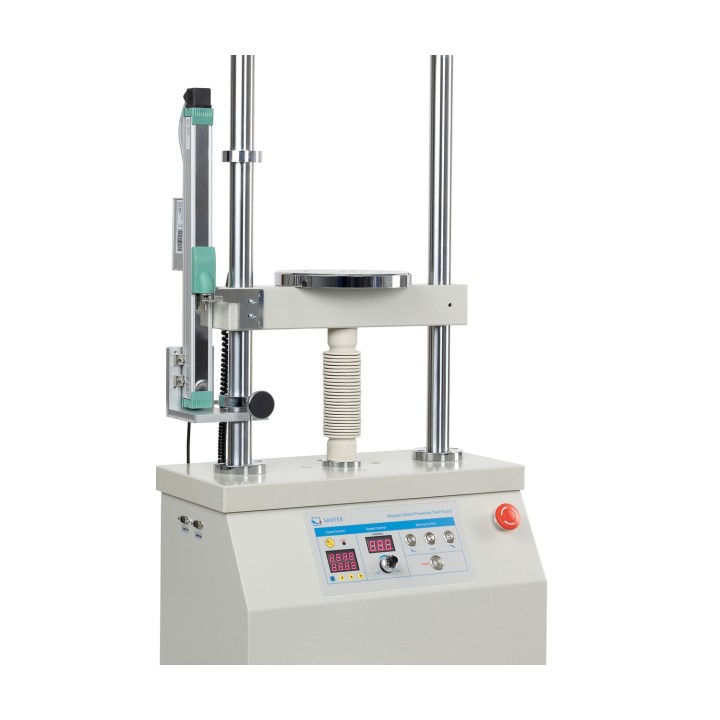

With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 210 mm, readability 0,01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1,5 m, high data acquisition speed

Motorised test stand for tension/compression force measurements

Stepper motor for greatest ease of use

- for constant speed from the smallest to the maximum load

- allows testing at minimum speed and full load

- for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds

- precise adjustment of the displacement speed using the information shown on the display

Maximum displacement protected by electronic end switches

Large working area by means of long guide columns as standard, which allows a wide range of fixing options

Particularly flexible mounting options for variable force measuring devices, such as, for example, SAUTER FC, FH, FK, FL:

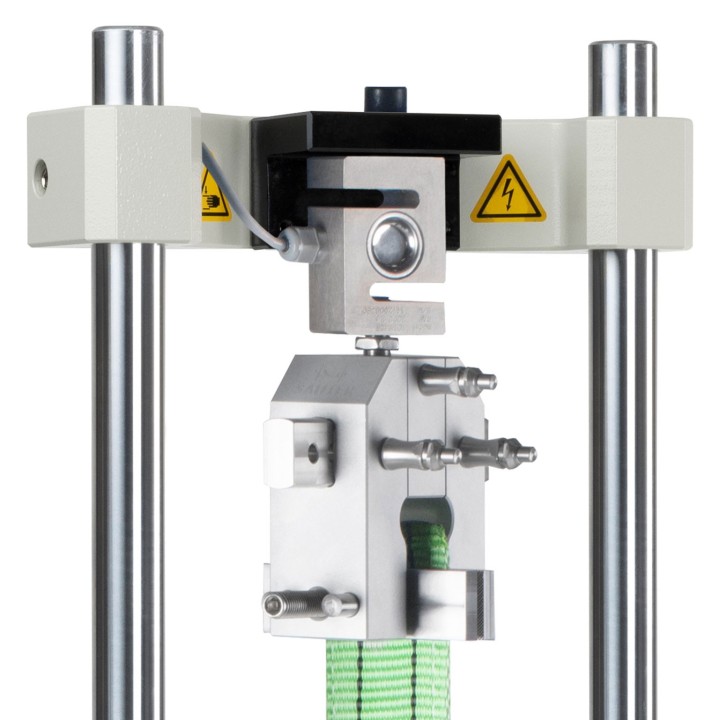

- Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher

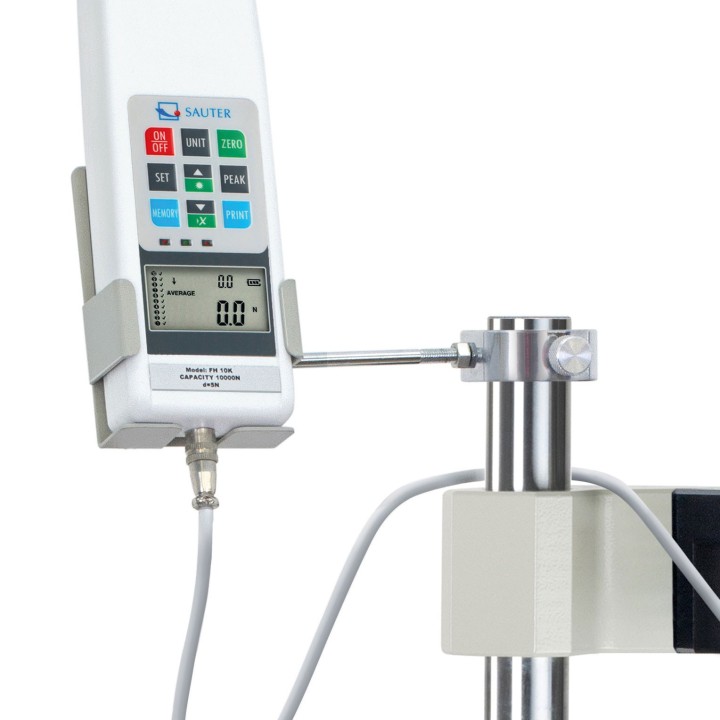

- Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)
