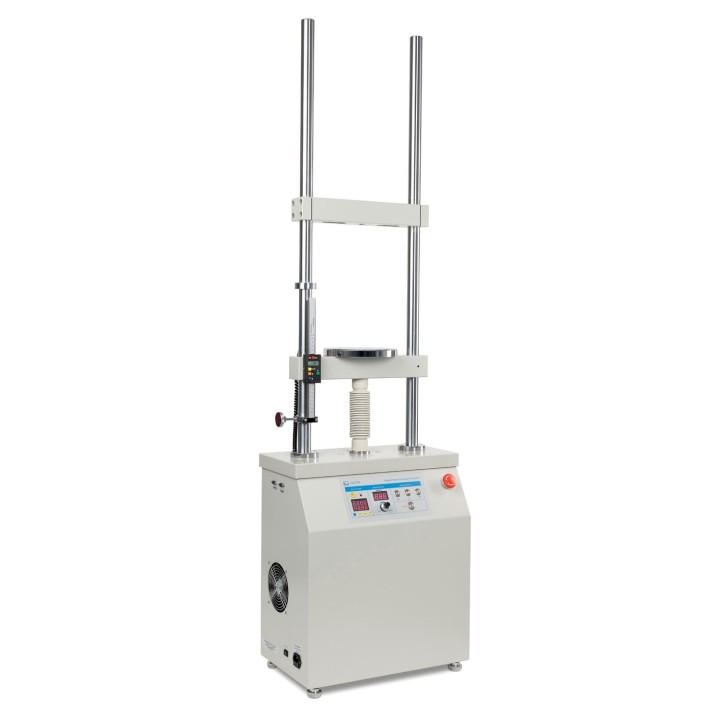

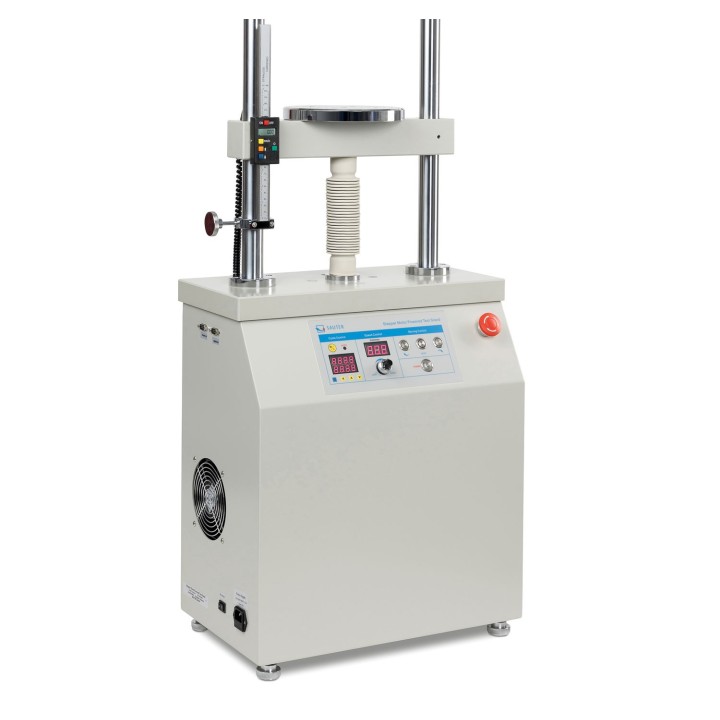

SAUTER TVS 5000N240 motorized force test stand

SAUTER TVS 5000N240 motorized force test stand

SAUTER
TVS 5000N240

Premium test stand with step motor for precise testing up to 5 kN

Technical Data

Generated force [Max] 5 kN
Traverse distance [Max] 210 mm
Type of drive Stepper motor
Length measuring device Length measuring device with display
Input voltage power supply / power [Max] 230 V AC, 50 Hz
Repeat function
Speed display
Material housing metal, lacquered
Dimensions completely mounted (W×D×H) 400×250×1550 mm
Transversal movement speed [Min] 1 mm/min
Transversal movement speed [Max] 240 mm/min
Hurry! only 11 items left in stock.
€5,085.00
€5,650.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Motorised test stand for tension/compression force measurements

Stepper motor for greatest ease of use

- for constant speed from the smallest to the maximum load

- allows testing at minimum speed and full load

- for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds

- precise adjustment of the displacement speed using the information shown on the display

Maximum displacement protected by electronic end switches

Large working area by means of long guide columns as standard, which allows a wide range of fixing options

SAUTER LA length measuring device as standard, to read the travel distance with a readability of 0,01 mm

Particularly flexible mounting options for variable force measuring devices, such as, for example, SAUTER FC, FH, FK, FL:

- Direct mounting of measuring devices with internal load cell up to a measuring range of 500 N

- Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher

- Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)

For force-displacement testing: Please order the optional LD length measuring device as well as the AFH software with the product
