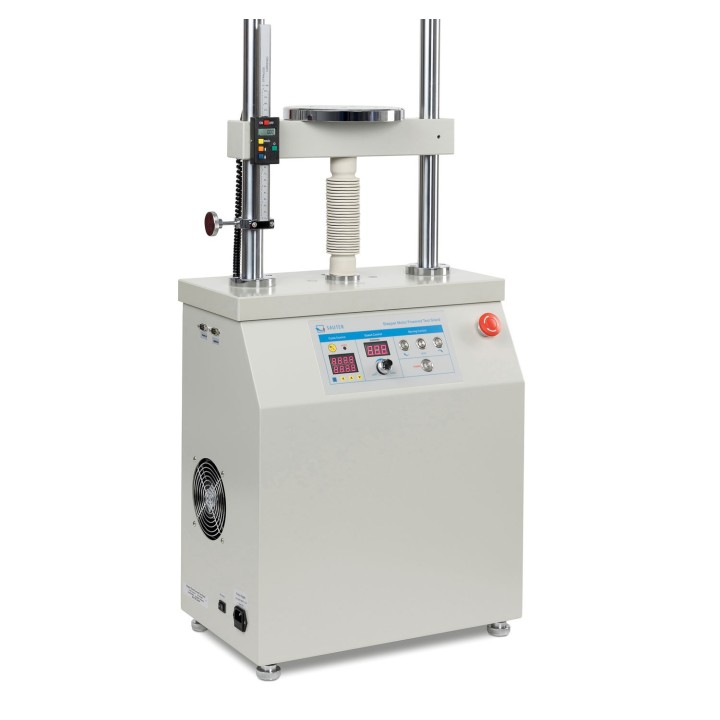

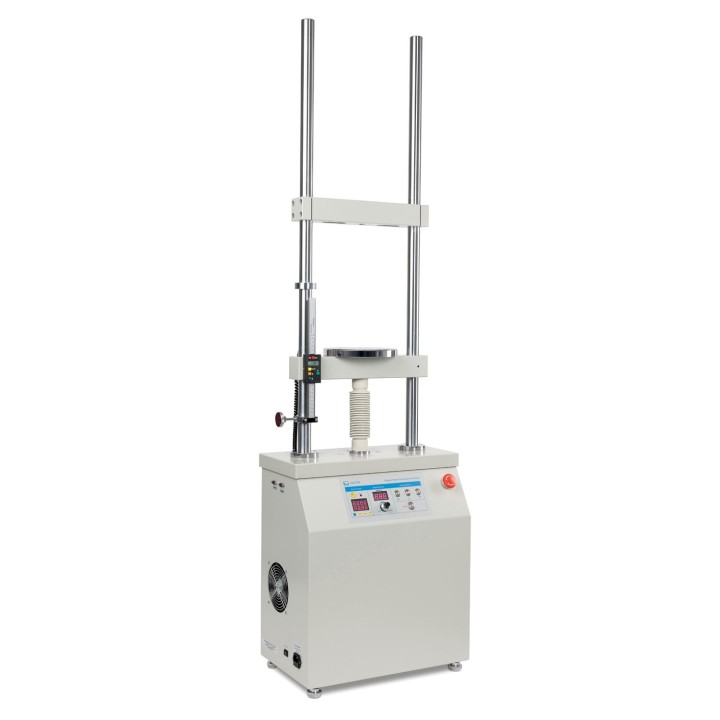

SAUTER TVS 10KN100 Premium test stand
  • SAUTER TVS 10KN100 Premium test stand
  • SAUTER TVS 10KN100 Premium test stand

SAUTER TVS 10KN100 Premium test stand

6,480.00 €Save 10%
7,200.00 €
Tax excluded

Premium test stand with step motor for precise testing up to 10 kN

TECHNICAL DATA

Generated force [Max]10 kN
Traverse distance [Max]210 mm
Type of driveStepper motor
Length measuring deviceLength measuring device with display
Input voltage power supply / power [Max]230 V AC, 50 Hz
Repeat function
Speed display
Material housingmetal, lacquered
Dimensions completely mounted (W×D×H)400×250×1550 mm
Transversal movement speed [Min]1 mm/min
Transversal movement speed [Max]200 mm/min

Motorised test stand for tension/compression force testing

Stepper motor for greatest ease of use

- for constant speed from the smallest to the maximum load

- allows testing at minimum speed and full load

- for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds

- precise adjustment of the displacement speed using the information shown on the display

Maximum displacement protected by electronic end switches

Large working area by means of long guide columns as standard, which allows a wide range of fixing options

SAUTER LA length measuring device as standard, to read the travel distance with a readability of 0,01 mm

Particularly flexible mounting options for variable force measuring devices, such as, for example, SAUTER FC, FH, FK, FL:

- Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher

- Holder for force measuring devices of the SAUTER FH range with external load cell

For force-displacement testing: Please order the optional LD length measuring device as well as the AFH software with the product

TVS 10KN100
