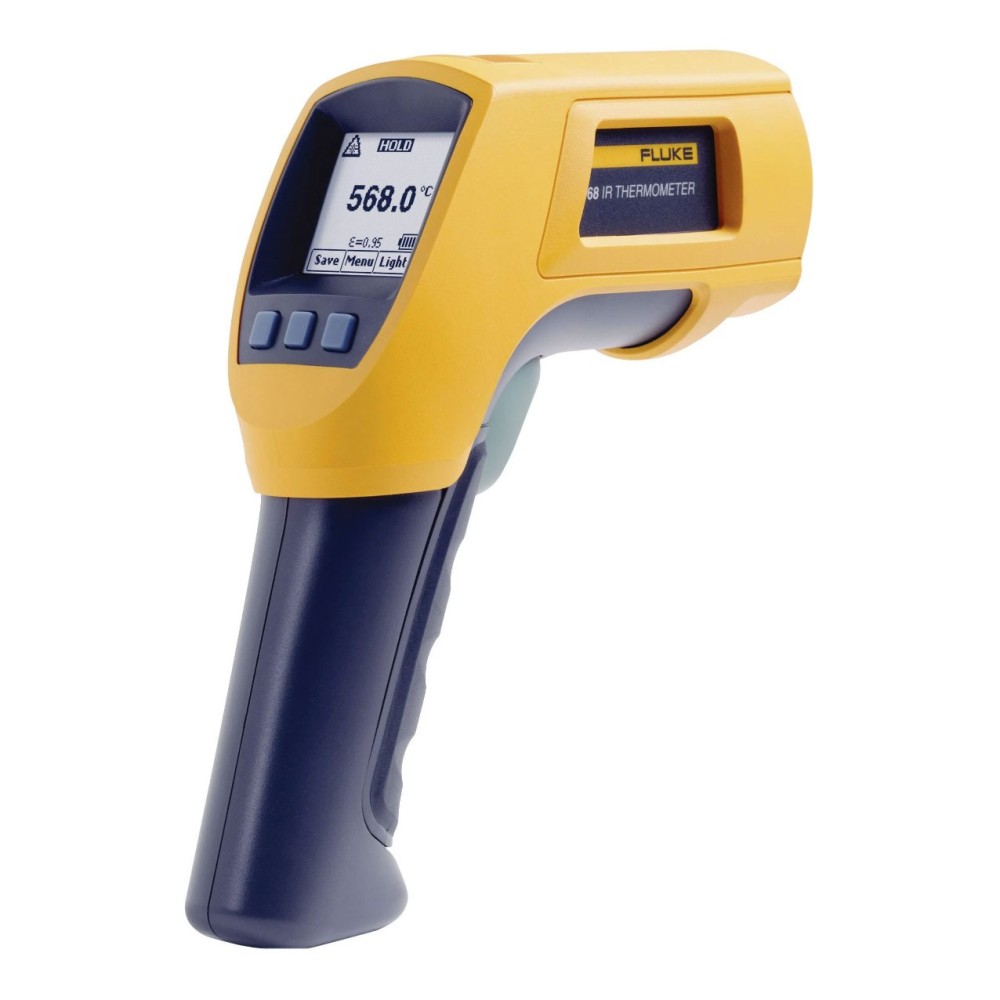

Fluke 568 Contact & Infrared Temperature Gun
Looking for a temperature gun that can handle a wide temperature range? Look no further than the Fluke 568 two-in-one infrared and contact thermometer. This versatile thermometer offers more features than most other infrared thermometers, all controlled through an intuitive graphical display and menu.
With a 50:1 distance-to-spot ratio, you can measure smaller objects from further away. And the rugged, ergonomic design is built to withstand tough industrial, electrical, HVAC, and mechanical environments.

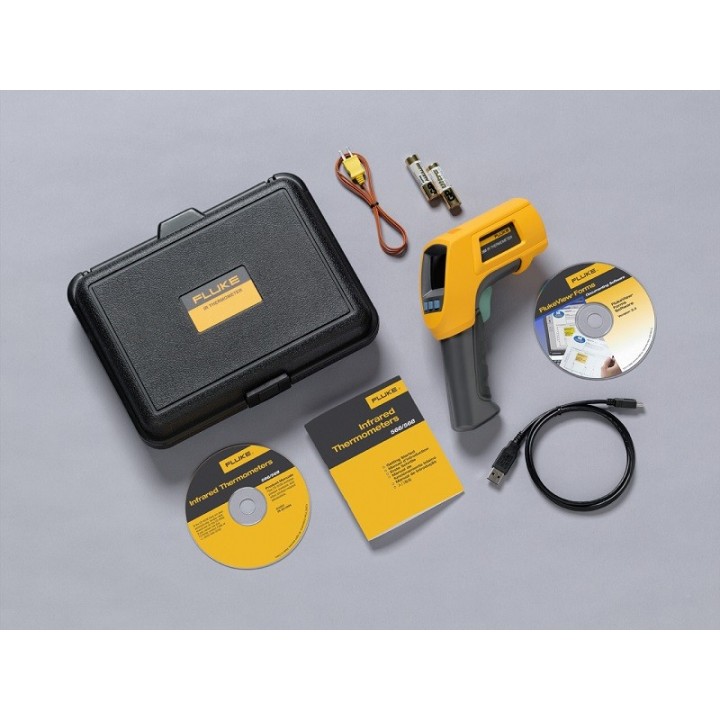

But that's not all - the Fluke 568 also includes a thermocouple K bead probe, durable hard case, and two-year warranty.
Other key features include:
- Simple, three-button on-screen menu interface (in 7 languages)
- Captures up to 99 points of data for quick downloading to a PC through the USB connection
- Includes FlukeView® Forms software for easy trending and data analysis
- Can be powered from your laptop via USB to extend battery life
- Easily adapts to lighting conditions with a two-level backlight
- Instantly alerts to measurements outside of set limits with audible and visual alarms
- Provides 1% measurement accuracy
Whether you're working in industrial, electrical, HVAC, or mechanical environments, the Fluke 568 has everything you need to work more efficiently. Don't wait - get your Fluke 568 temperature gun today and start measuring with confidence.
| Product Specifications |
| Infrared temperature range |
-40°C to 800°C (-40°F to 1472°F) |
| Infrared accuracy |
< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); |
| > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater |
| Display resolution |
0.1°C / 0.1°F |
| Infrared spectral response |
8 µm to 14 µm |
| Infrared response time |
< 500 msec |
| Thermocouple Type-K input temperature range |
-270°C to 1372°C (-454°F to 2501°F) |
| Thermocouple Type-K input accuracy |
-270°C to -40°C |
±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) |
| -40°C to 1372°C |
±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater |
| D:S (distance to measurement spot size) |
50:1 |
| Laser sighting |
Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm |
| Minimum spot size |
19 mm (0.75 in) |
| Emissivity adjustment |
By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 |
| Data storage with date/time stamp |
99 points |
| PC interface and cable |
USB 2.0 with FlukeView® Forms software |
| Hi/Low alarms |
Audible and two-color visual |
| Min/Max/Avg/Dif |
Yes |
| Display |
Dot matrix 98 x 96 pixels with function menus |
| Backlight |
Two levels, normal and extra bright for darker environments |
| Trigger lock |
Yes |
| Switchable Celsius and Fahrenheit |
Yes |
| Power |
2 AA/LR6 Batteries and USB when used with a PC |
| Battery life |
If used continuously |
Laser and backlight on,12 hours; laser and backlight off, 100 hours |
| Operating temperature |
0°C to 50°C (32°F to 122°F) |
| Storage temperature |
-20°C to 60°C (-40°F to 140°F) |
| Bead thermocouple Type-K range |
-40°C to 260°C (-40°F to 500°F) |
| Bead thermocouple Type-K accuracy |
±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F) |
Frequently asked questions for the Fluke 568 Contact & Infrared Temperature Gun
What is the best temperature gun?
The Fluke 568 two-in-one infrared and contact thermometer is considered one of the best temperature guns on the market.
What is a temperature gun called?
A temperature gun is also known as an infrared thermometer or an IR thermometer.
What gun is used to measure temperature?
An infrared thermometer, also known as a temperature gun, is used to measure temperature.
How far should you hold a temperature gun?
The distance at which a temperature gun should be held can vary depending on the specific model. The Fluke 568 two-in-one infrared and contact thermometer, for example, has a distance-to-spot ratio of 50:1, which means it can measure a 1-inch target from a distance of 50 inches.
What is the temperature range of the Fluke 568 thermometer?
The Fluke 568 two-in-one infrared and contact thermometer has a temperature range of -40°C to 800°C (-40°F to 1472°F).
What is the emissivity of the Fluke 568 thermometer?
The Fluke 568 two-in-one infrared and contact thermometer has adjustable emissivity, which means it can measure a variety of surfaces accurately.
Can the Fluke 568 thermometer measure contact temperature?
Yes, the Fluke 568 two-in-one infrared and contact thermometer has a K-type thermocouple input that allows it to measure contact temperature.
What is the accuracy of the Fluke 568 thermometer?
The Fluke 568 two-in-one infrared and contact thermometer has an accuracy of ±1% or ±1°C, whichever is greater.
What is the response time of the Fluke 568 thermometer?
The Fluke 568 two-in-one infrared and contact thermometer has a fast response time, with a 500 ms (95%) response time for infrared measurements and a 300 ms response time for contact measurements.
What is the warranty for the Fluke 568 thermometer?
The Fluke 568 two-in-one infrared and contact thermometer comes with a two-year warranty.
