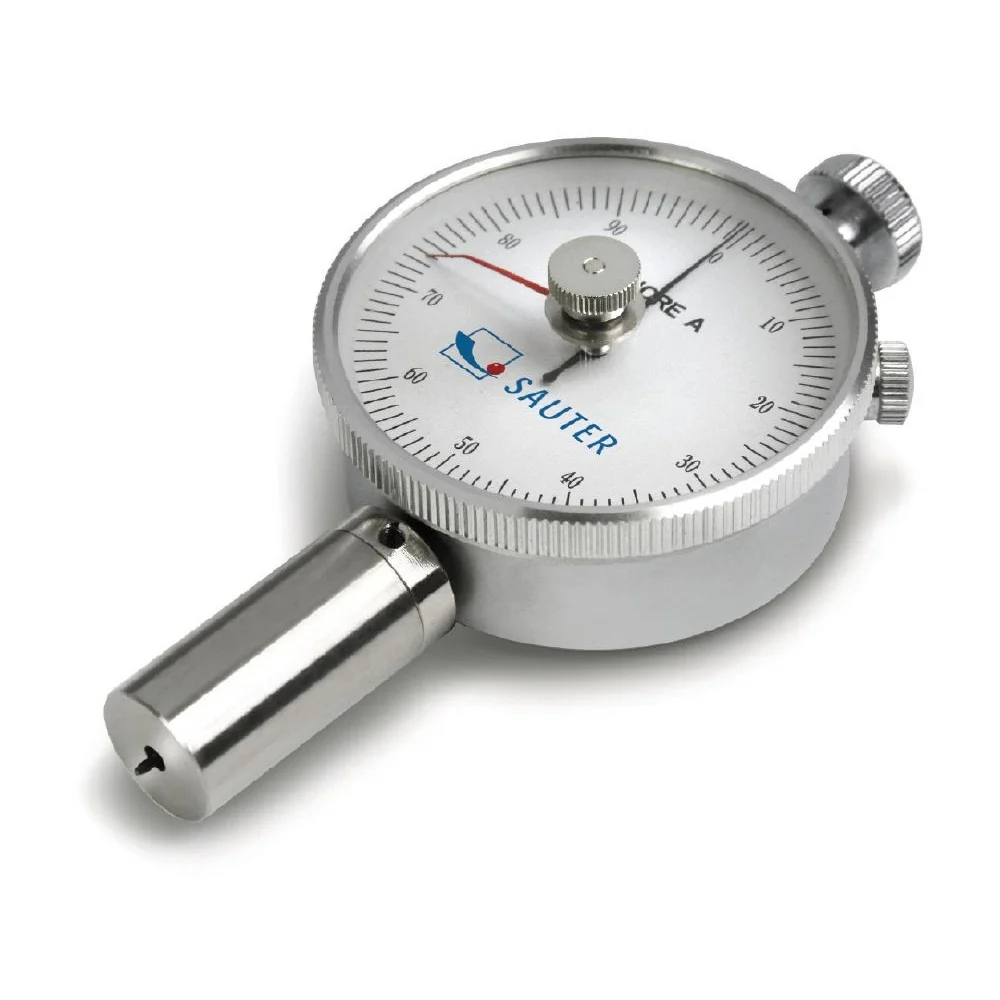

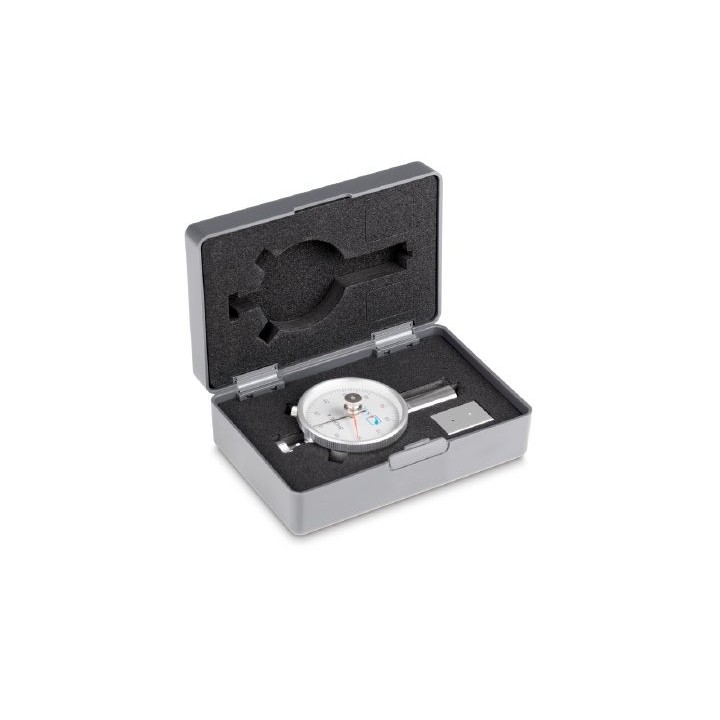

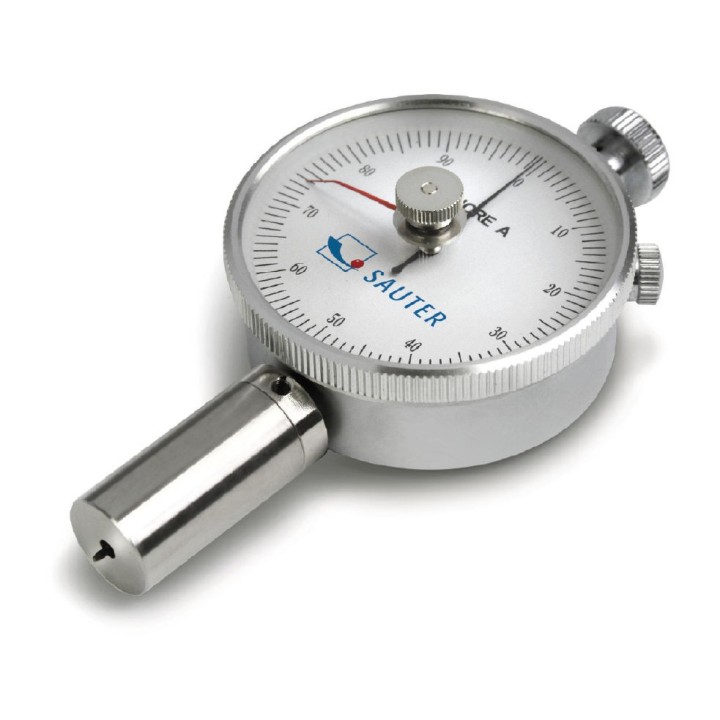

SAUTER HBD 100-0. Analogue Shore hardness tester
  • SAUTER HBD 100-0. Analogue Shore hardness tester
  • SAUTER HBD 100-0. Analogue Shore hardness tester
  • SAUTER HBD 100-0. Analogue Shore hardness tester

SAUTER HBD 100-0. Analogue Shore hardness tester

€145.00
€130.50 Save 10%
Tax excluded
Quantity
In Stock

  • Typical application: measurement of penetration (Shore)
  • Particularly recommended for internal comparison measurement. Standard calibrations e. g. to DIN 53505 are often not possible because of very narrow standard tolerances

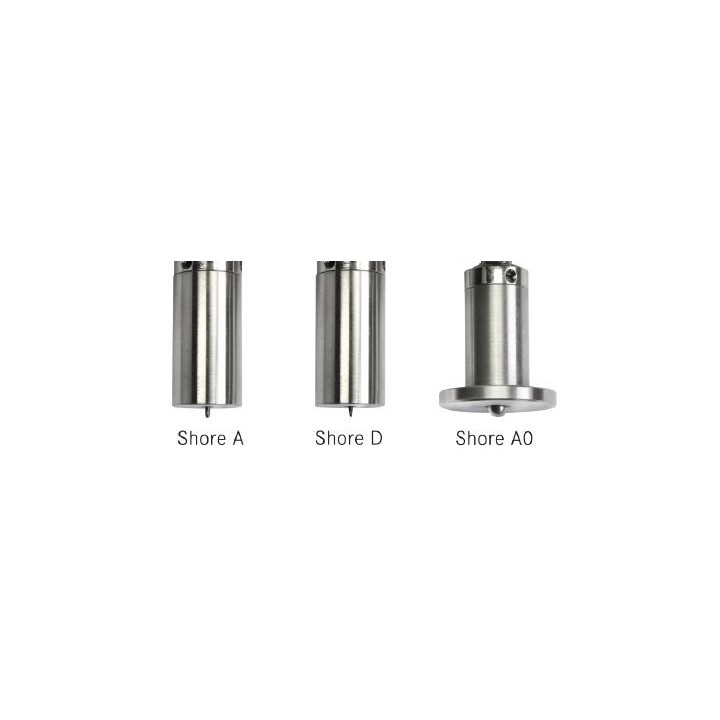

  • Shore A rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar material
  • Shore D plastics, formica, epoxides, plexiglass etc.
  • Shore A0 foam, sponge etc.
  • Max mode: Holds the maximum value in the display
  • Point mode: Shows one instant value
  • Can be attached to the test stands SAUTER TI-A0 (for Shore A and A0), TI-D. (for Shore D)


hardness comparison plates see SAUTER AHBA-01 and SAUTER AHBD-01

Peak hold function: capturing a peak value within a measuring process. 2 years warranty

ALL MODELS
Item number
Hardness type
Measuring range


[Max]
Readout


[d]
HBA 100-0.
Shore A
100 HA
1,0 HA
HB0 100-0.
Shore A0
100 HA0
1,0 HA0
HBD 100-0.
Shore D
100 HD
1,0 HD
HBD 100-0.

Download

SAUTER HB Datasheet

Download (180.93k)
