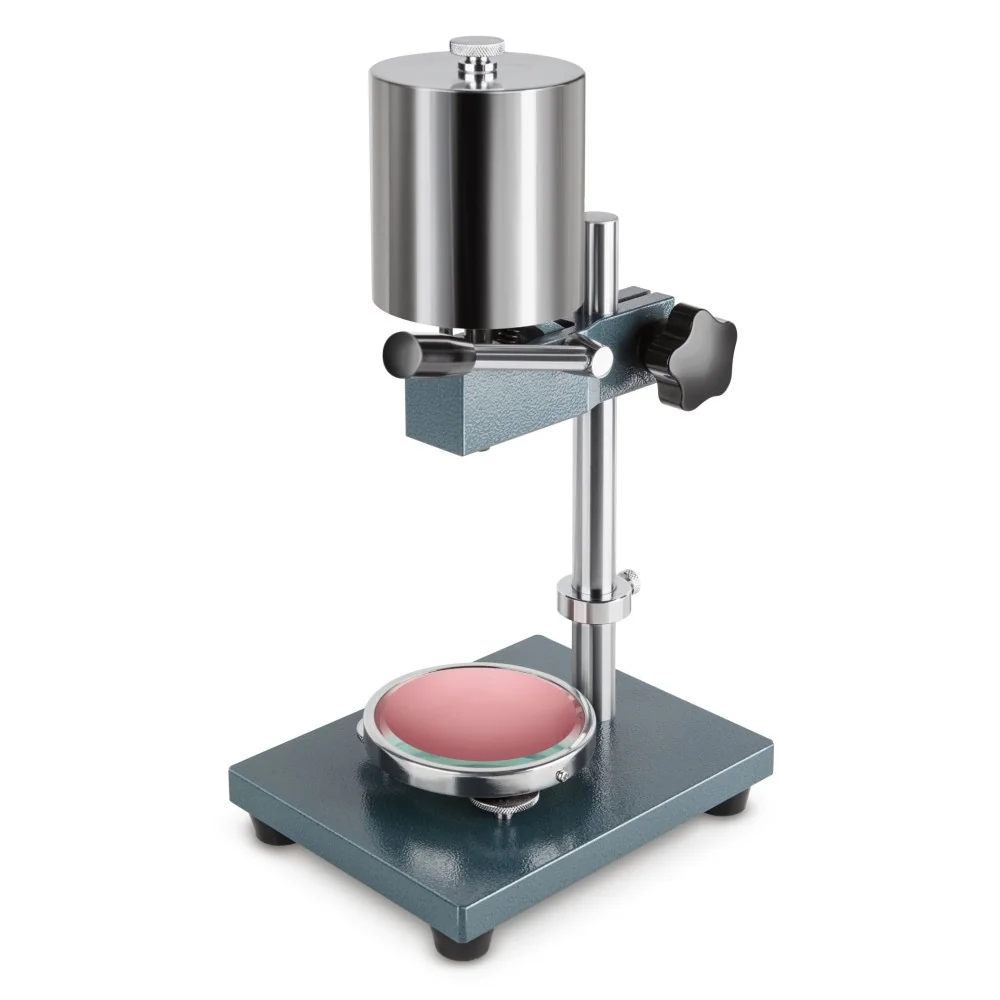

Manual shore test stand SAUTER TI-AC
  • Manual shore test stand SAUTER TI-AC
  • Manual shore test stand SAUTER TI-AC
  • Manual shore test stand SAUTER TI-AC

Manual shore test stand SAUTER TI-AC

€218.05Save 11%
€245.00
Tax excluded

Lever operated test stand for hardness testing of plastics, leather etc.

  • Length of column: 245 mm
  • Control weight: 1 kg
  • Stroke length: 15 mm
  • Maximum test object height: 63 mm
  • Base plate ∅ 75 mm
  • Overall dimensions W×D×H: 150×110×330 mm
  • Net weight: 4,5 kg

Fast move: the total length of travel can be covered by a single lever movement. 2 years warranty

Manual shore test stand SAUTER TI-AC

  • For Shore hardness testing of plastics, leather etc.

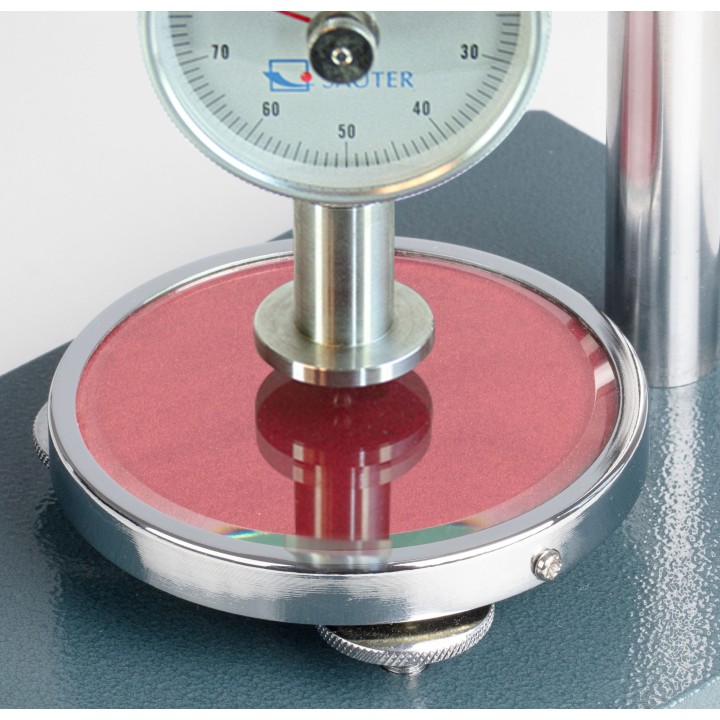

  • Glass plate: Providing a higher base hardness and superior accuracy
  • Mechanical construction: Robust design for precise measuring
  • Level adjustment: For the precise levelling of the base plate blate
  • Adjustable base plate for the correction of inhomogeneous test objects
  • Hardness tester not included

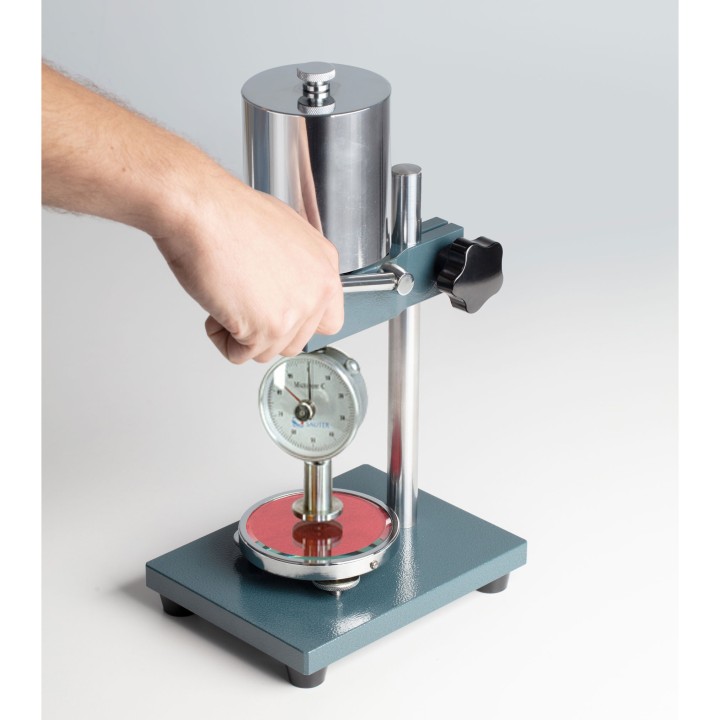

Operation:

  • 1. The SAUTER hardness testing device HBA/HB0 is fitted in a suspended position
  • 2. The test object is placed on the round testing table right under the durometer pin
  • 3. By lowering the handle lever, the measurement instrument is pressed in a controlled manner into the test object

The accuracy of the displayed result is approx. 25 % higher than in a manual operated test

TI-AC.
