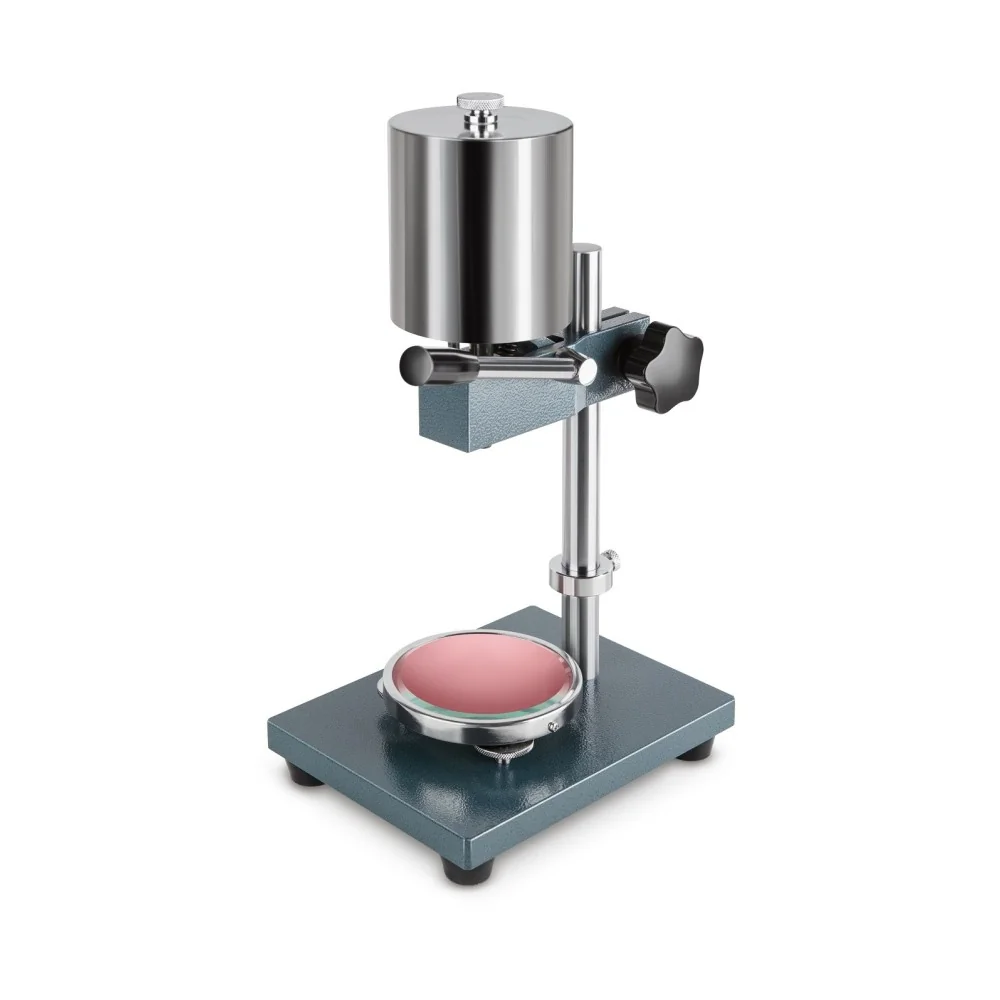

Manual shore test stand SAUTER TI-D
300.00 €
Tax excluded
Lever operated test stand for hardness testing of plastics, leather etc.
- Length of column: 245 mm
- Control weight: 5 kg
- Stroke length: 15 mm
- Maximum test object height: 63 mm
- Base plate ∅ 75 mm
- Overall dimensions W×D×H: 150×110×400 mm
- Net weight: 8,5 kg
Manual shore test stand SAUTER TI-D
- For Shore hardness testing of plastics, leather etc.

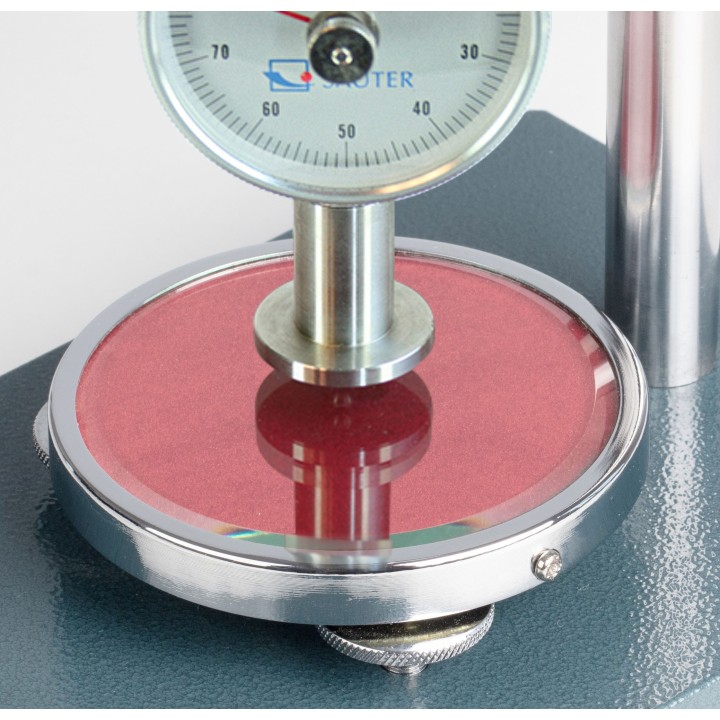

- Glass plate: Providing a higher base hardness and superior accuracy
- Mechanical construction: Robust design for precise measuring
- Level adjustment: For the precise levelling of the base plate blate

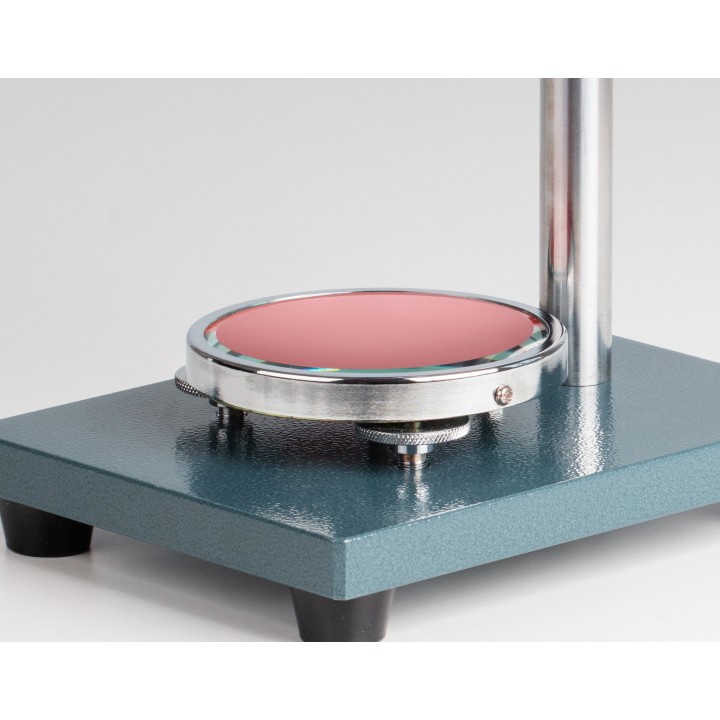

- Adjustable base plate for the correction of inhomogeneous test objects
- Hardness tester not included

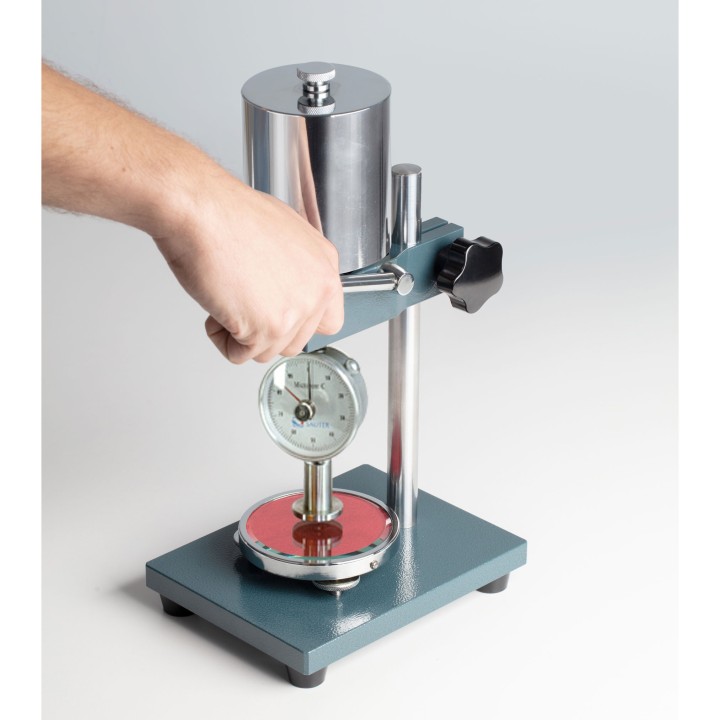

Operation:
- 1. The SAUTER hardness testing device HBD is fitted in a suspended position
- 2. The test object is placed on the round testing table right under the durometer pin
- 3. By lowering the handle lever, the measurement instrument is pressed in a controlled manner into the test object
The accuracy of the displayed result is approx. 25 % higher than in a manual operated test
TI-D
Accessories
hardness-testing-of-plastics
SAUTER AHBD-01 hardness comparison plates for Shore Dhardness comparison plates for Shore D, tolerance up to ± 2 HD Suitable for SAUTER-models HB and HD 3 pcs.
75.00 € From Price
Lever operated test stand for hardness testing of plastics, leather etc.
- Length of column: 245 mm
- Control weight: 5 kg
- Stroke length: 15 mm
- Maximum test object height: 63 mm
- Base plate ∅ 75 mm
- Overall dimensions W×D×H: 150×110×400 mm
- Net weight: 8,5 kg
