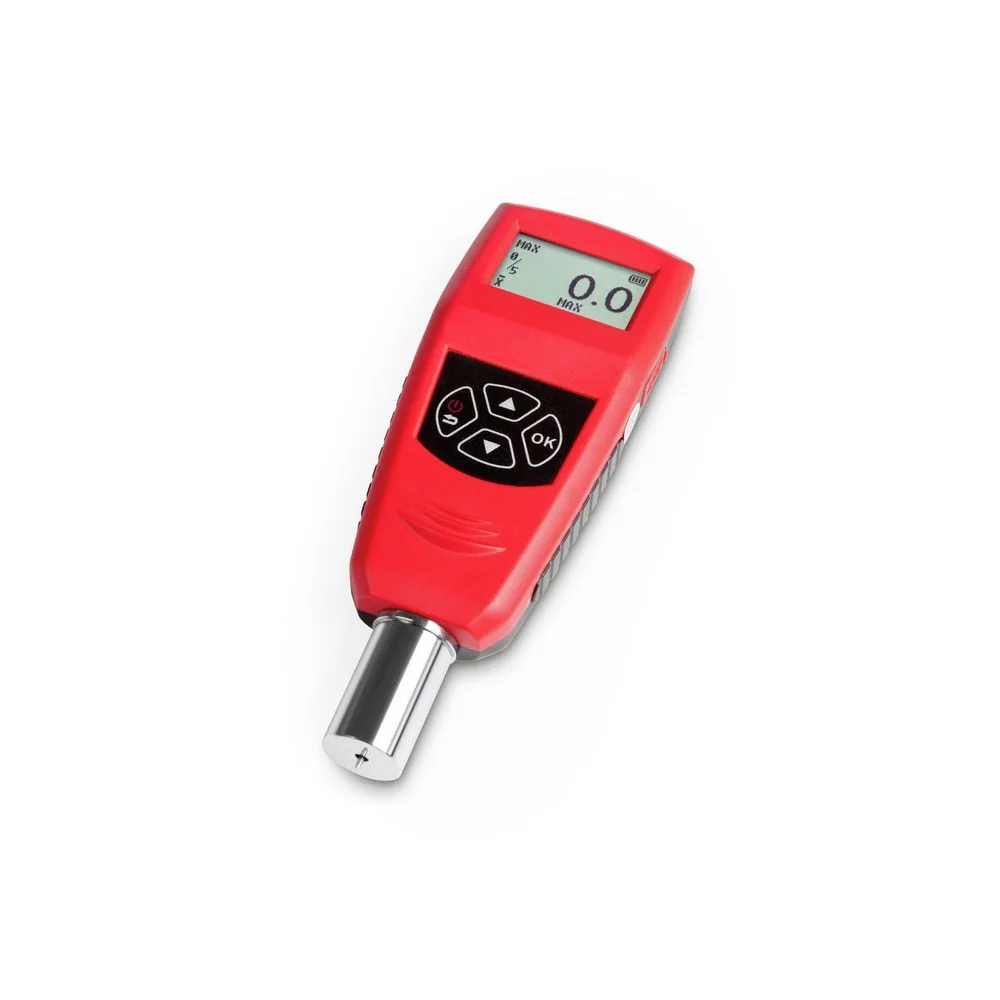

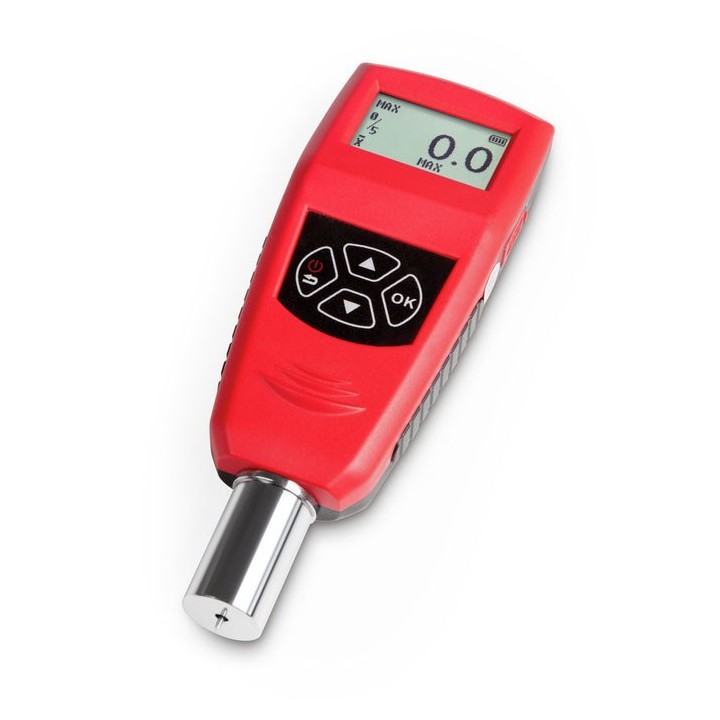

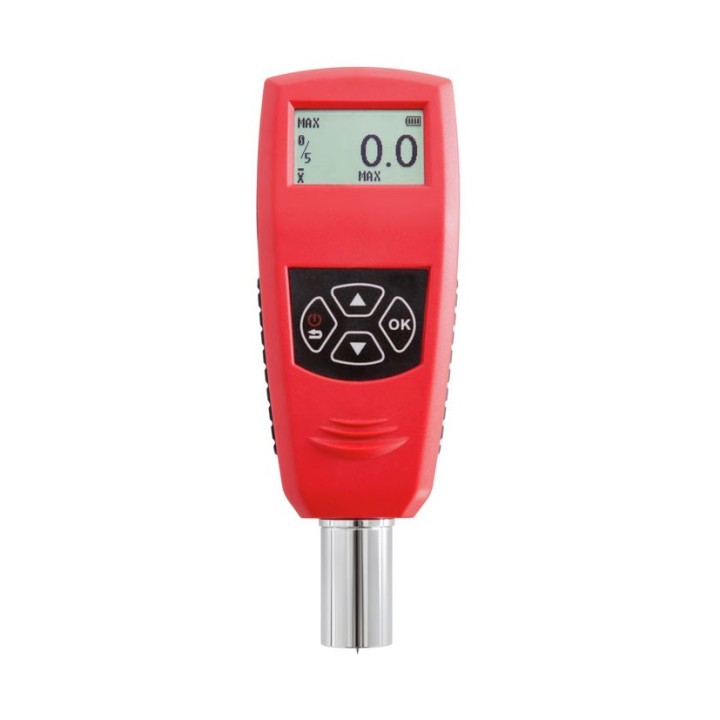

SAUTER HED 100 hardness tester Shore D
SAUTER HED 100 hardness tester Shore D
SAUTER HED 100 hardness tester Shore D
SAUTER HED 100 hardness tester Shore D
SAUTER HED 100 hardness tester Shore D

SAUTER HED 100 hardness tester Shore D

SAUTER
€750.00 (Save 10%)
€675.00
Tax excluded

To measure the hardness of plastics through penetration measurement

Shore D: Plastics, formica, epoxides,  plexiglass etc

Different measuring modes: Average value, maximum value, chronological sequence

Limit alarm function, which triggers an audible and visual signal when the value goes below or above the defined limits

Entering the workpiece number is possible

Setting the measuring time from 0 to 99 seconds

Recommended for internal comparison measurement

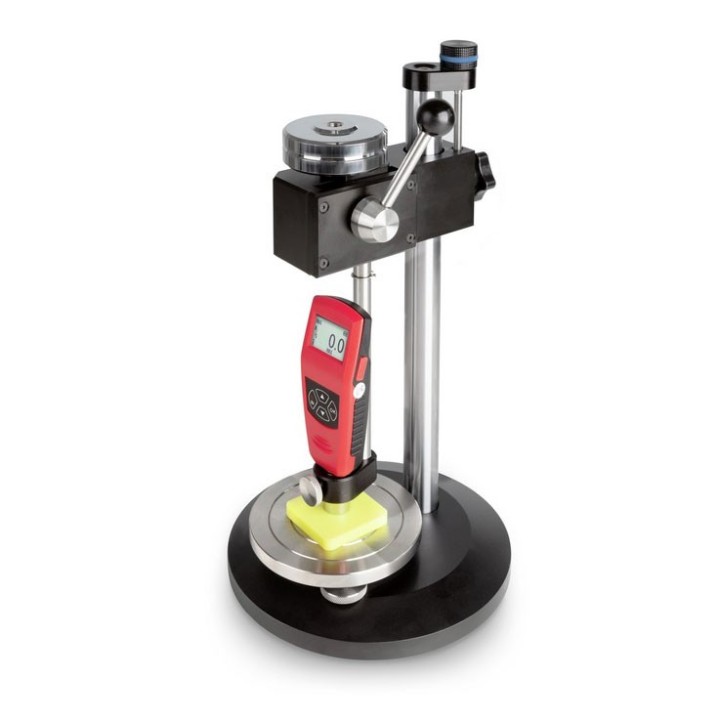

Can be attached to the test stand SAUTER TI-HED  to improve the measurement result

Large display with backlight

Battery status indicator

USB data interface, as standard

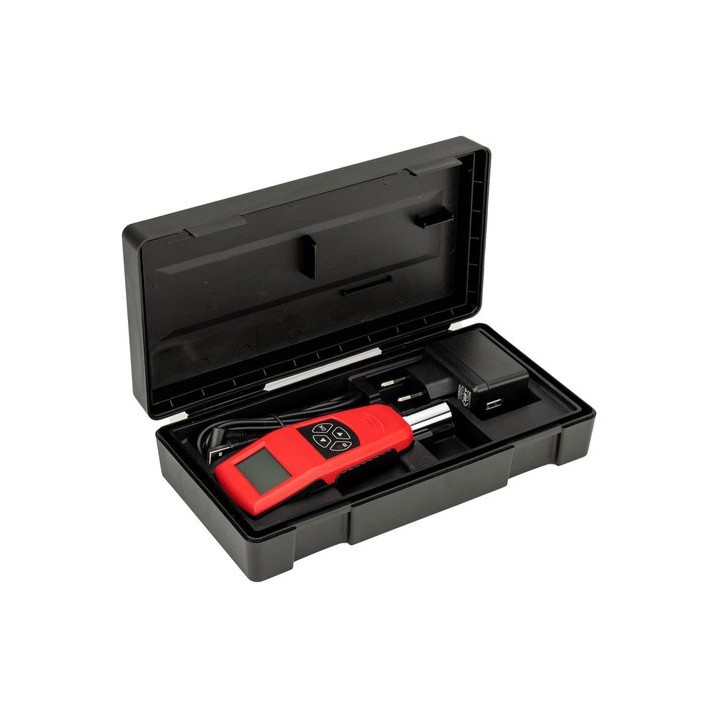

Delivered in a robust carrying case

in stock
Share

Technical Data SAUTER HED 100

Hardness scalesShore D
Measuring range Shore [Max]100 HD
Readability Shore [d]0,1 HD
Tolerance (% of [Max])1%
Hold function
Peak function
Function for averaging
InterfacesUSB-Device
Material housingplastic
Measuring probe diameter18 mm
Test force Hardness measurement50 N
Product familyHE
