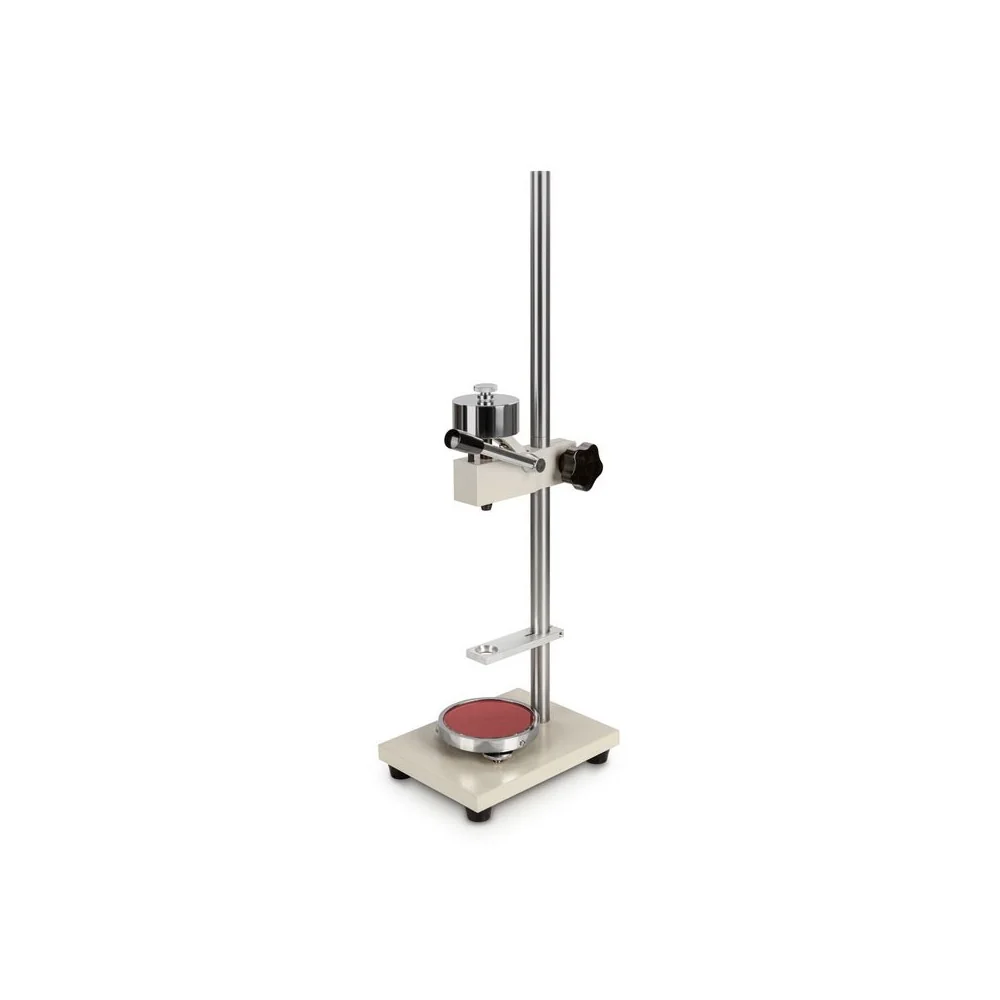

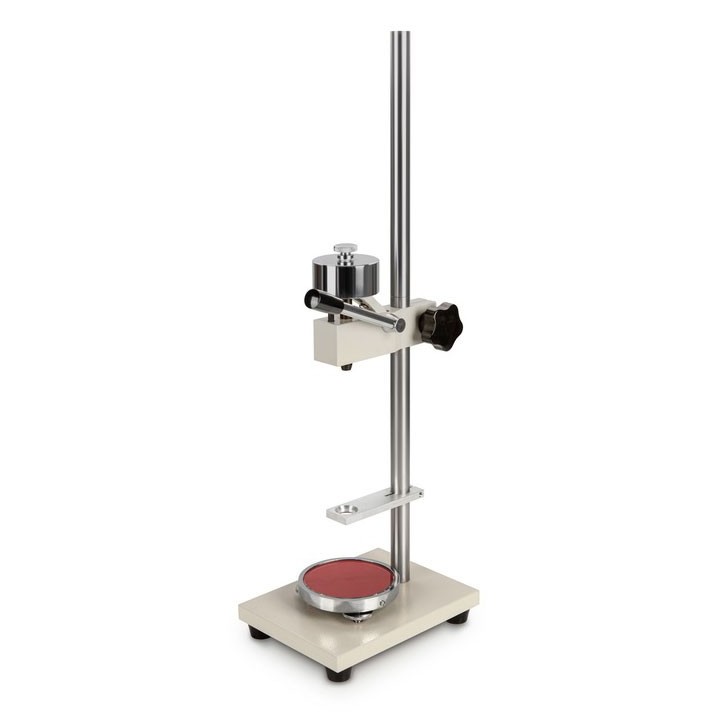

Manual test stand shore SAUTER TI-ACL
    • Manual test stand shore SAUTER TI-ACL
    • Manual test stand shore SAUTER TI-ACL

    Manual test stand shore SAUTER TI-ACL

    325.00 €
    Tax excluded

    Lever operated test stand for hardness testing with base plate made of glass

    TECHNICAL DATA

    Compatible withHDA, HD0
    Hardness scalesShore A
    Test force Hardness measurement10 N
    Material housingmetal, lacquered
    Dimensions completely mounted (W×D×H)150×200×580 mm
    Versandgewicht7 kg
    Quantity
    In Stock

    Manual shore test stand SAUTER TI-ACL

    For Shore hardness testing of plastics, leather etc.

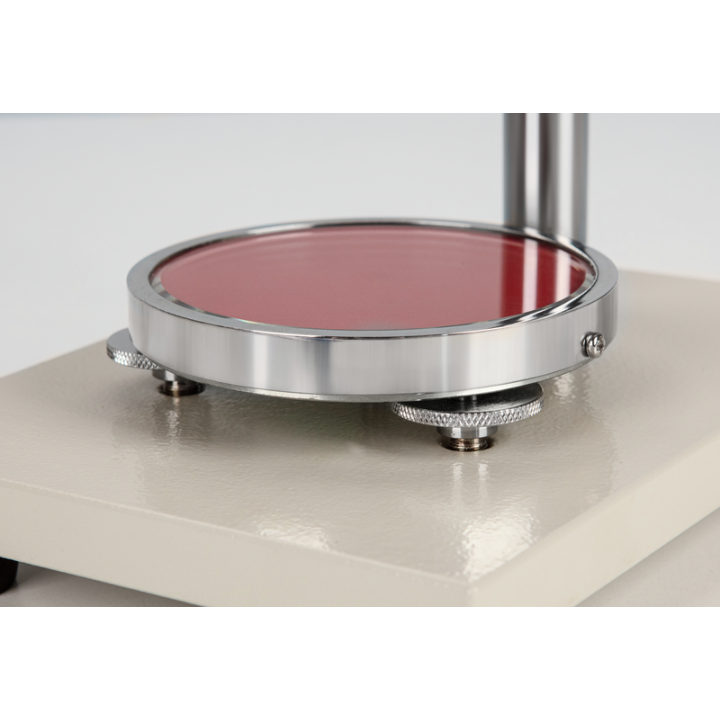

    Glass plate: high measurement accuracy by means of superior hardness of the glass plate

    Mechanical construction: Robust design enables accurate measuring movements

    Level adjustment: For the precise levelling of the base plate, e.g. for the correction of inhomogeneous test objects

    Hardness tester is not included with delivery

    Operation:

    • 1. The SAUTER hardness testing device HDA/HD0 is fitted in a suspended position
    • 2. The test object is placed on the round testing table right under the durometer measuring tip
    • 3. By pressing the lever down, the test weight will be released, and this then presses the measuring tip into the test object with its own weight (see test force hardness measurement)

    The accuracy of the displayed result is about 25 % higher than in a manual operated test

    TI-ACL
