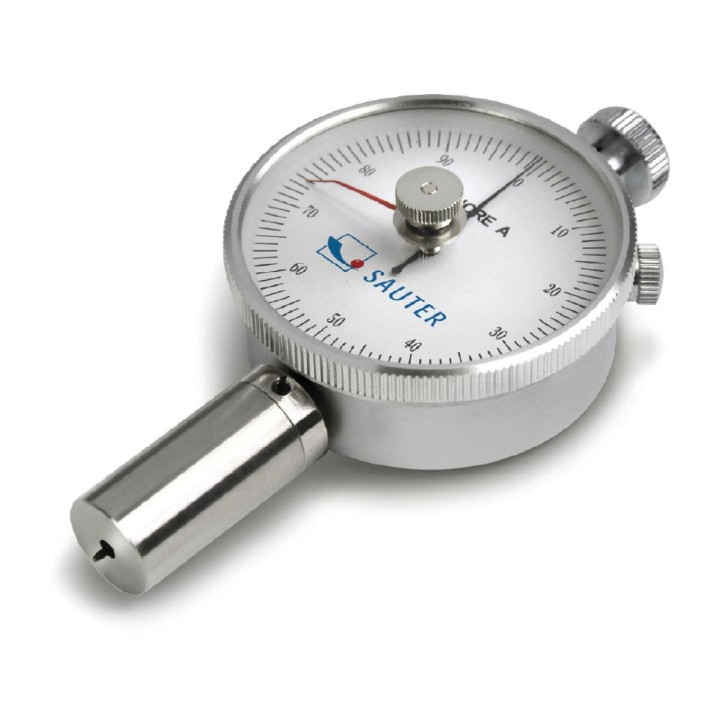

SAUTER HBA 100-0. Analogue Shore hardness tester
    • SAUTER HBA 100-0. Analogue Shore hardness tester
    • SAUTER HBA 100-0. Analogue Shore hardness tester
    • SAUTER HBA 100-0. Analogue Shore hardness tester

    SAUTER HBA 100-0. Analogue Shore hardness tester

    €105.00
    Tax excluded

    Volume discounts

    QuantityUnit priceYou Save
    2€105.00€10.50
    3€105.00€31.50
    5€105.00€78.75
    10€105.00€210.00
    Quantity
    In Stock
    equalizer Compare cached
    favorite_border Wishlist cached

    • Typical application: measurement of penetration (Shore)
    • Particularly recommended for internal comparison measurement. Standard calibrations e. g. to DIN 53505 are often not possible because of very narrow standard tolerances
    • Shore A rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar material
    • Shore D plastics, formica, epoxides, plexiglass etc.
    • Shore A0 foam, sponge etc.
    • Max mode: Holds the maximum value in the display
    • Point mode: Shows one instant value
    • Can be attached to the test stands SAUTER TI-A0 (for Shore A and A0), TI-D. (for Shore D)

    hardness comparison plates see SAUTER AHBA-01 and SAUTER AHBD-01
    STANDARD
    Peak hold function: capturing a peak value within a measuring process.
    2 years warranty

    ALL MODELS
    Item number
    Hardness type
    Measuring range


    [Max]
    Readout


    [d]
    HBA 100-0.
    Shore A
    100 HA
    1,0 HA
    HB0 100-0.
    Shore A0
    100 HA0
    1,0 HA0
    HBD 100-0.
    Shore D
    100 HD
    1,0 HD
    HBA 100-0.
