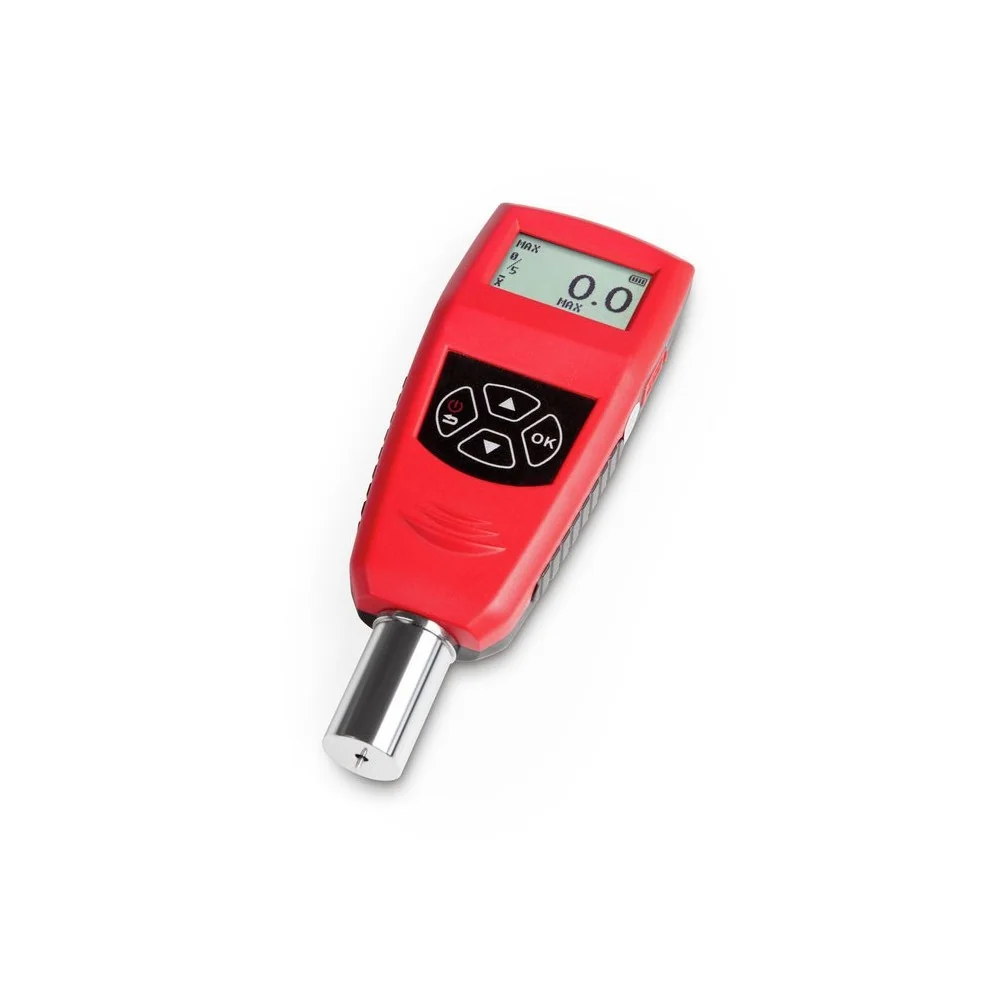

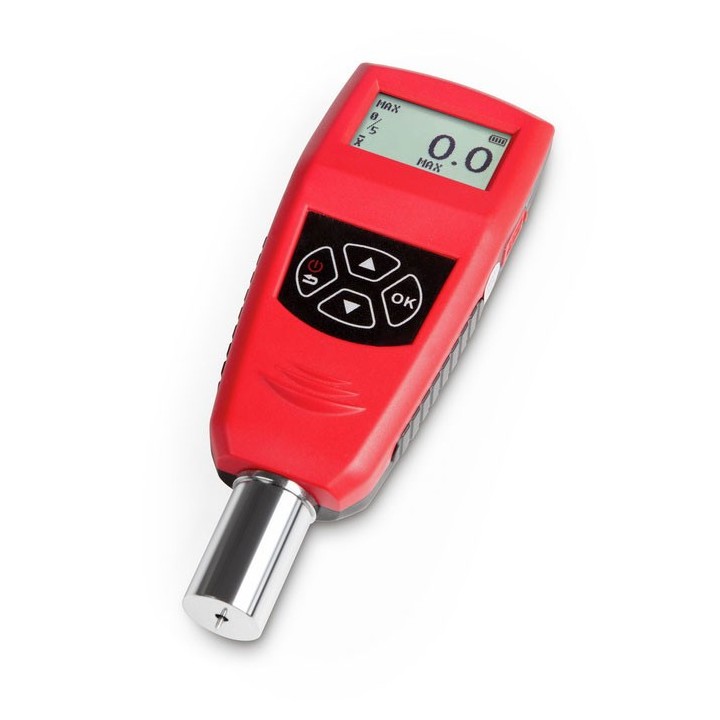

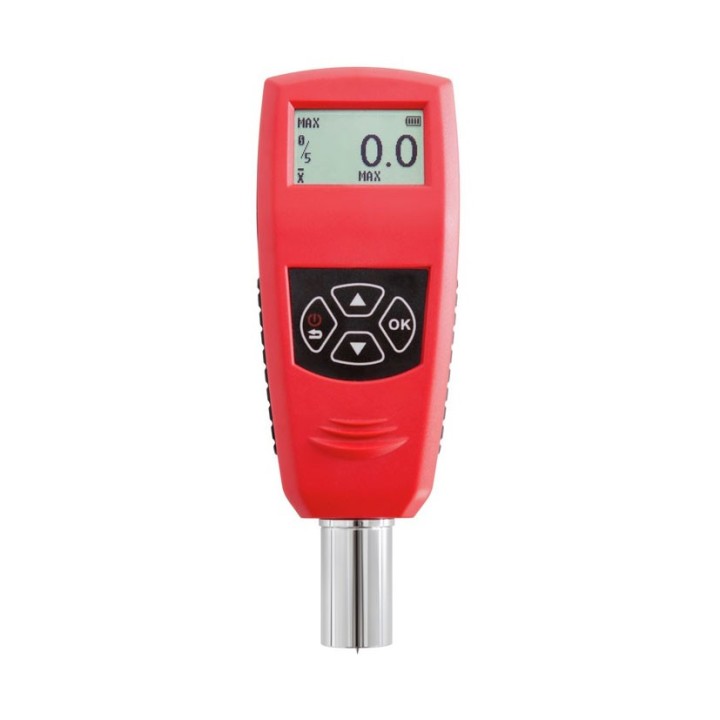

To measure the hardness of plastics through penetration measurement
Shore A: Rubber, elastomers, neoprene, silicone, vinyl, so plastics, felt, leather and similar material
Different measuring modes: Average value, maximum value, chronological sequence
Limit alarm function, which triggers an audible and visual signal when the value goes below or above the defined limits
Entering the workpiece number is possible
Setting the measuring time from 0 to 99 seconds
Recommended for internal comparison measurement

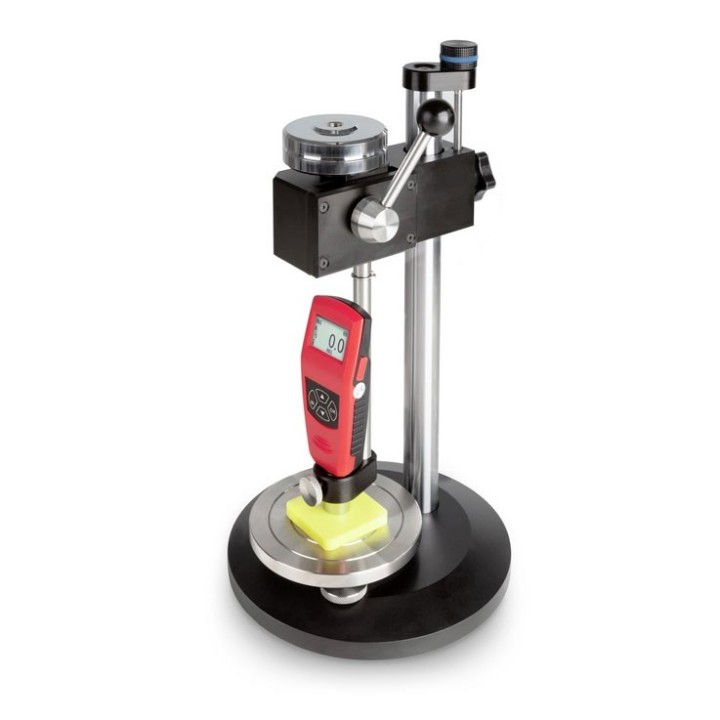

Can be attached to the test stand SAUTER TI-HEA to improve the measurement result
Large display with backlight
Battery status indicator
USB data interface, as standard

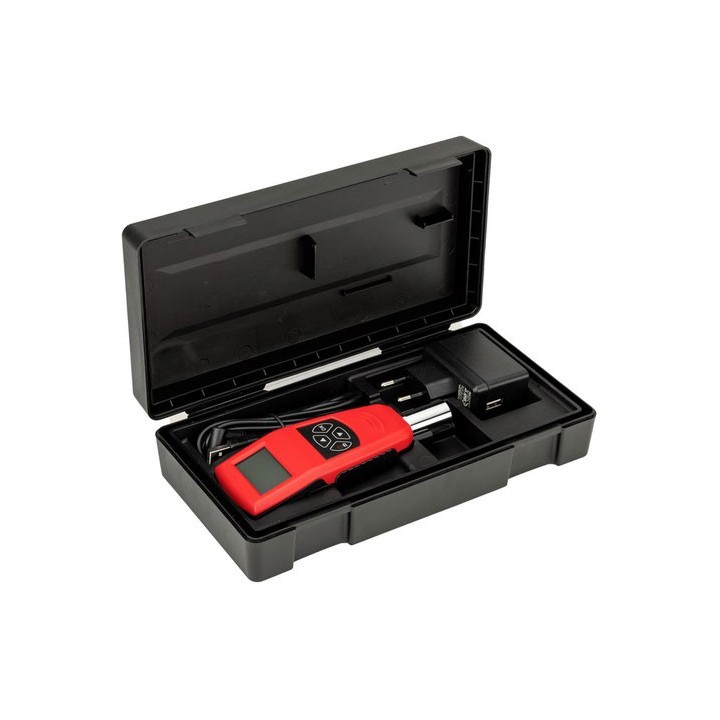

Delivered in a robust carrying case
100% buyer protectionGuaranteed with PayPal
100% secure shippingInsured and with tracking
Return or repair100% full processing
| Hardness scales | Shore A |
| Measuring range Shore [Max] | 100 HA |
| Readability Shore [d] | 0,1 HA |
| Tolerance (% of [Max]) | 1% |
| Hold function | |
| Peak function | |
| Function for averaging | |
| Interfaces | USB-Device |
| Material housing | plastic |
| Measuring probe diameter | 18 mm |
| Test force Hardness measurement | 10 N |
| Product family | HE |
