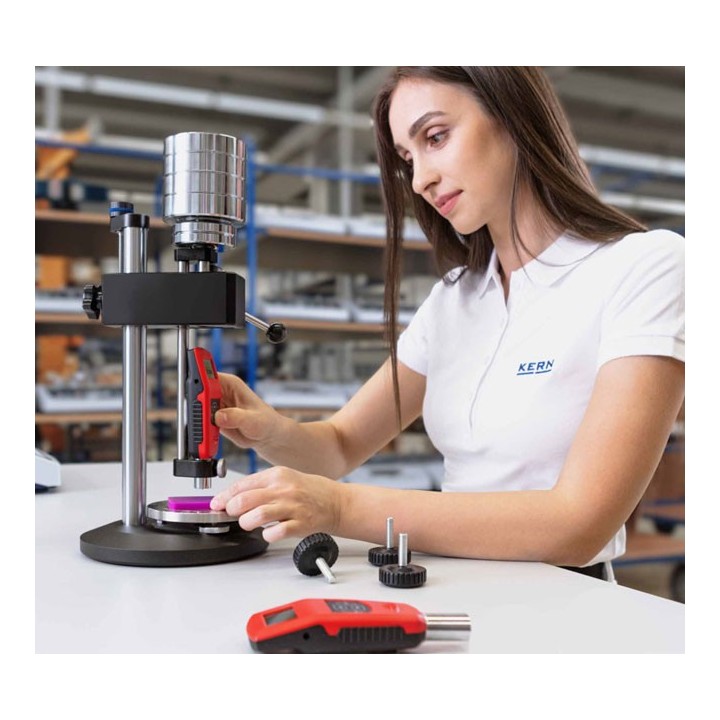

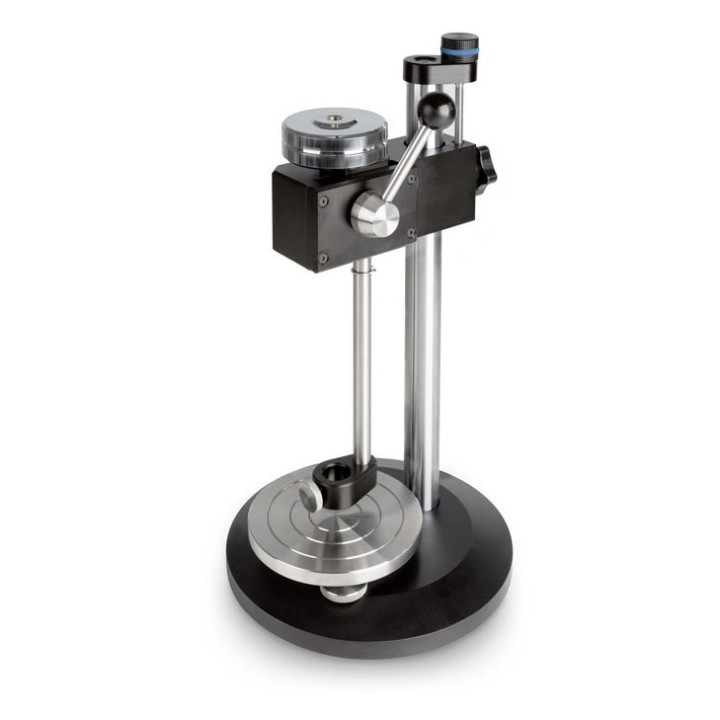

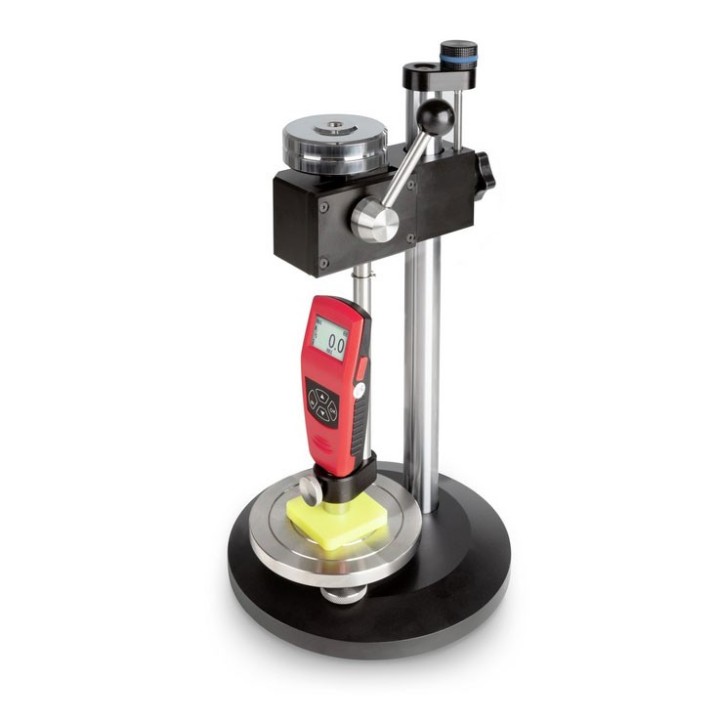

SAUTER TI-HEA Test stand for hardness testing Shore A

High-quality test stand for Shore hardness testing of plastics in industry and the laboratory

One test stand for two hardness scales: You just need to screw the additional weight TI-HE onto the TI-HEA test bench, so that this can then also be used for Shore D hardness testing, see accessories

Steel plate, can be levelled for accurate measuring

Level adjustment: For the precise levelling of the steel base plate, e.g. for the correction of inhomogeneous test objects

Mechanical construction: Robust design enables accurate measuring movements

The accuracy of the displayed result is higher than in a manual operated test

Simple handling means that you can achieve repeatable measuring results:

Operation:

1. The hardness testing device SAUTER HEA is fitted in a suspended position

2. The test stand can be aligned using 2 screw mechanisms below the Shore hardness tester

3. The test object is placed on the round test stand directly below the measuring tip of the hardness testing device

4. By pressing the lever down, the test weight will be released, and this then presses the measuring tip into the test object with its own weight

Hardness tester is not included with delivery
