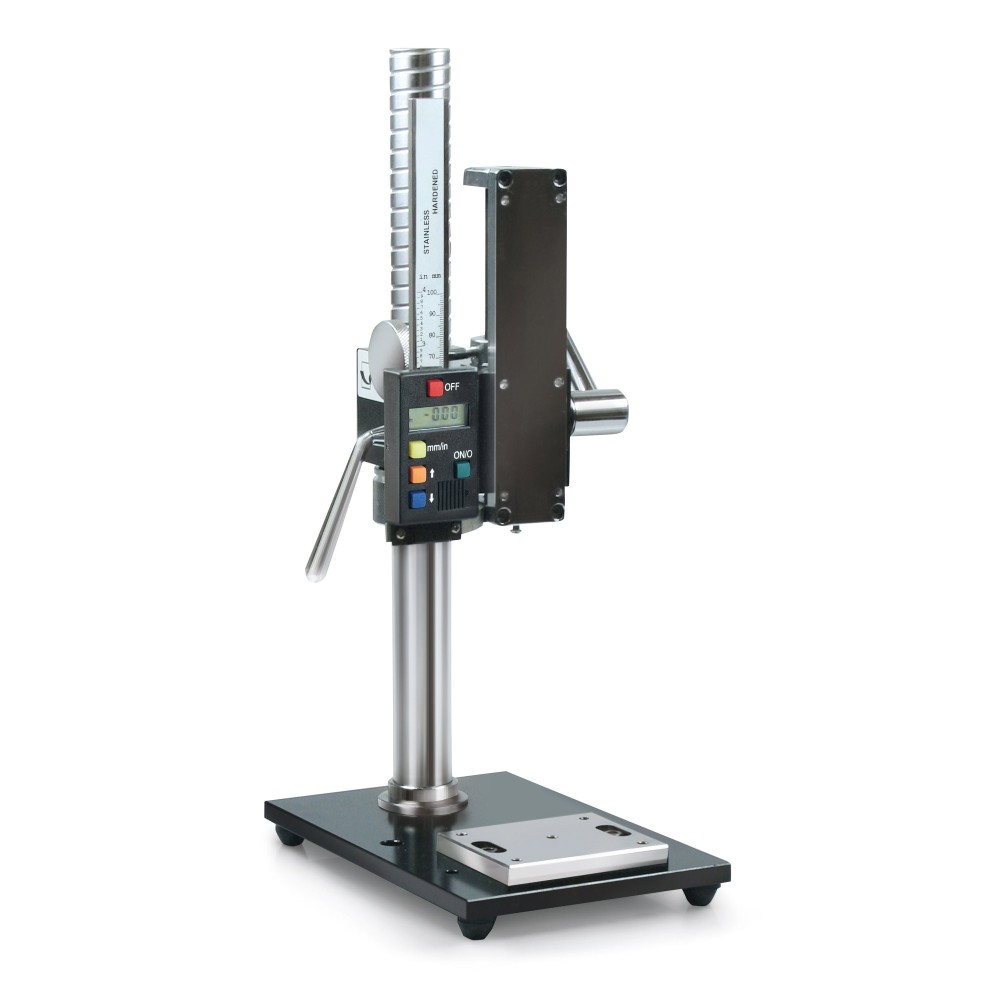

SAUTER TVP-L mechanical test stand

SAUTER TVP-L mechanical test stand

SAUTER
TVP-L

Mechanical test stand for compressive force measurements with digital length measurement

Technical Data SAUTER TVP-L

Generated force [Max] 500 N
Type of drive mechanical lever
Material housing metal, lacquered
Dimensions completely mounted (W×D×H) 150×233×420 mm
Measurement alignment vertical
Hurry! only 7 items left in stock.
€400.50
€445.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Provides quick and consistent testing

High level of security at repeated measurements

Provides maximum versatility and precise measuring results

Slide construction for distance measurement

Large base plate with high versatility of fastening objects

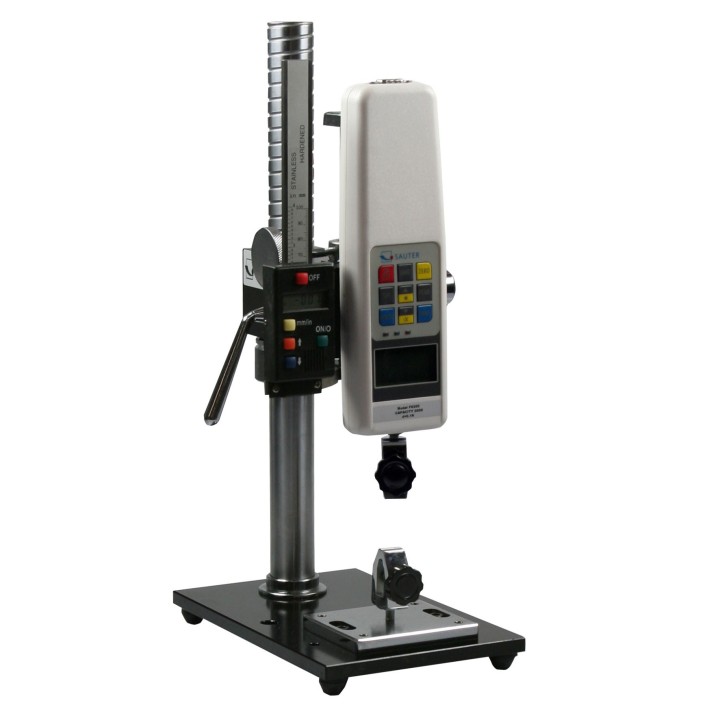

Suitable for all SAUTER force gauges up to 500 N (not included in delivery)

Digital length meter

- Measuring range: 100 mm

- Readability: 0,01 mm

- Zero setting possible

- Pre-length can be set manually

- without interface

: TVP-L
