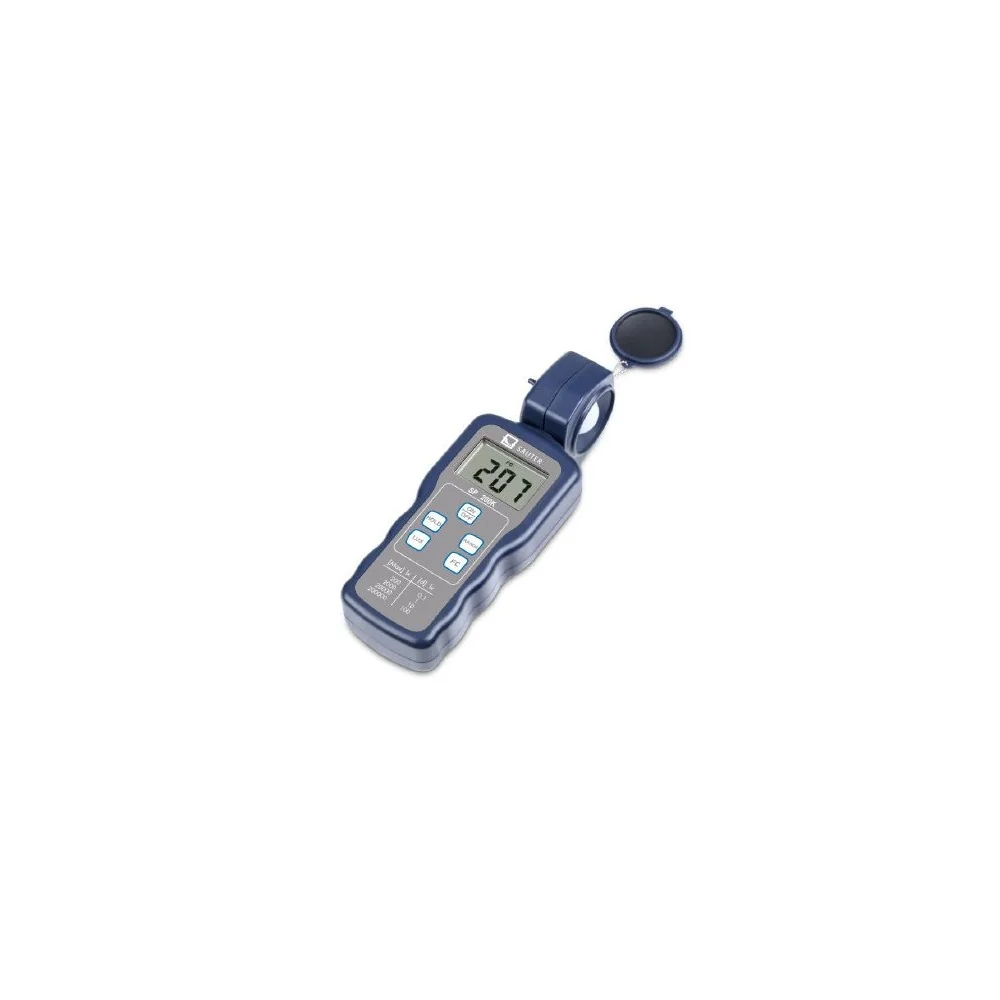

SAUTER SP 200K Luxmeter

• For measuring illumination of office workstations, production workstations, etc.
• Photo sensor: Silicon diode, filtered
• Cosine correction for angular incident light
• Data-hold function, to freeze the current measurement
• Rotating sensor unit (+ 90 and -180°) for optimum alignment to the light source
• Sturdy protective cover for the photo sensor
• Increased service life: Impact protection through delivery in a soft box with light protection
• TRACK function for continuous recording of variable environmental conditions
• Peak Hold Mode to capture peaks
• Selectable measuring units: fc (foot-candle), lx
• Easy to toggle between units at the press of a button
• Option of fitting a column on the rear of the housing, ¼" thread

Technical data

• Precision up to 20.000 Lux: ± (4 % of the result + 10 scale intervals)
• Precision from 20,000 Lux: ± (5 % of the result + 10 scale intervals)
• Repeatability: ± 2 % of [Max]
• Temperature error: ± 0,1 % of [Max]/°C
• Measuring frequency: 2 Hz
• Dimensions W×D×H 185×68×38 mm
• Operating temperature and humidity: 0 °C/40 °C, 0–80 % RH
• Ready for use: Batteries included, 9 V block, operating time up to 200 hours
• Net weight approx. 130 g
