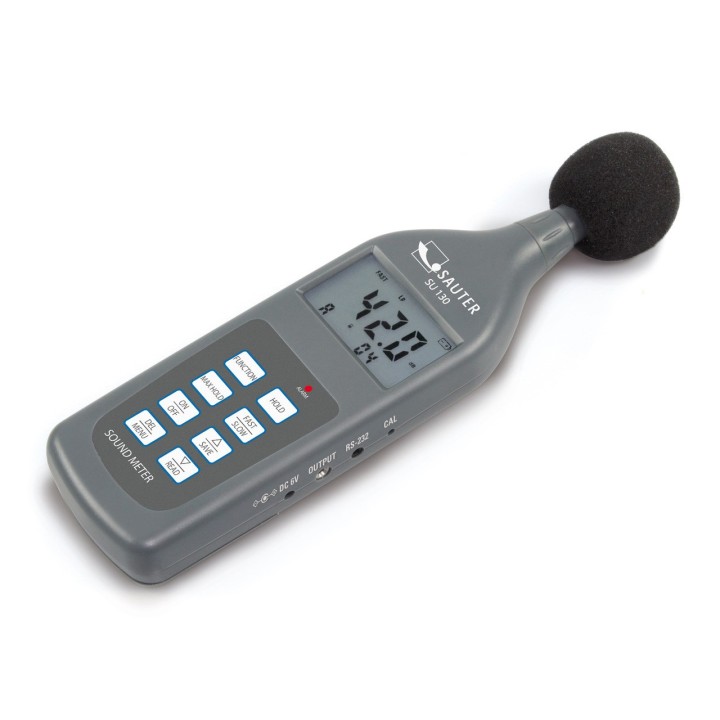

Sound level meter with calibration certificate SAUTER SU 130
Versatile sound level meter with calibration certificate
Main fields of application areas
- Workplace
- Transport
- Industry and assembly hall
- Automotive industry
Technical Data
| Measuring range Sound | 30 dB – 130 dB |
| Readability sound [d] (dB) | 0,1 dB |
| Tolerance (% of [Max]) | 3% |
| Units | dB |
| Sound level measuring modes | Lp, Leq, Ln |
| Sound level methods of evaluation | A, C, F |
| Frequency range | 20 Hz – 12,5 kHz |
| Memory function | |
| Hold function | |
| Peak function | |
| Limit-setting function | |
| Microphone sensitivity | 30 mV/Pa |
| Battery | 4×1.5 V AAA |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 236×63×40 mm |
Sound level meter with basic functions for measuring noise in areas such as, environment, mechanical applications, car industry and much more
Measures the sound intensity in the workplace
Helps in differentiating between normal noise influences, and excessive noise, nuisances e.g. in a production hall

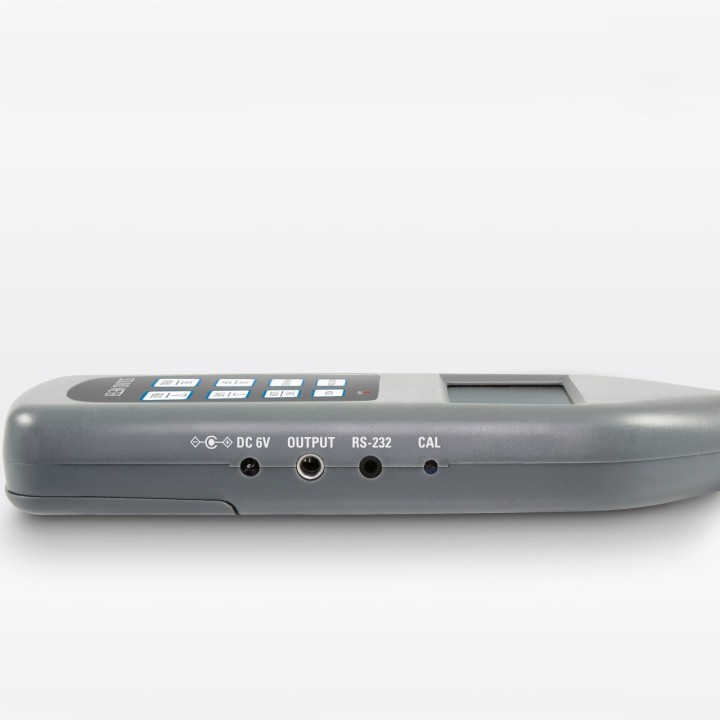

Data interface RS-232, included
Multi measuring functions:
Lp: Standard sound level measuring function
Leq: Energy equivalent sound level measuring mode (type A)
Ln: Shows the deviation from a pre-defined limit in %
Selectable methods of evaluation:
A: As sensitive as the human ear
C: Sensitive for noisier environmental conditions, where there are machines, plant, motors etc.
F: For areas with constant sound intensity
Limit value function: programmable value for the maximum level value
Track function for continuous recording of changing environmental conditions
Peak Hold function to capture peak value
Internal memory for 30 measured values, transferable to PC with SAUTER ATC-01

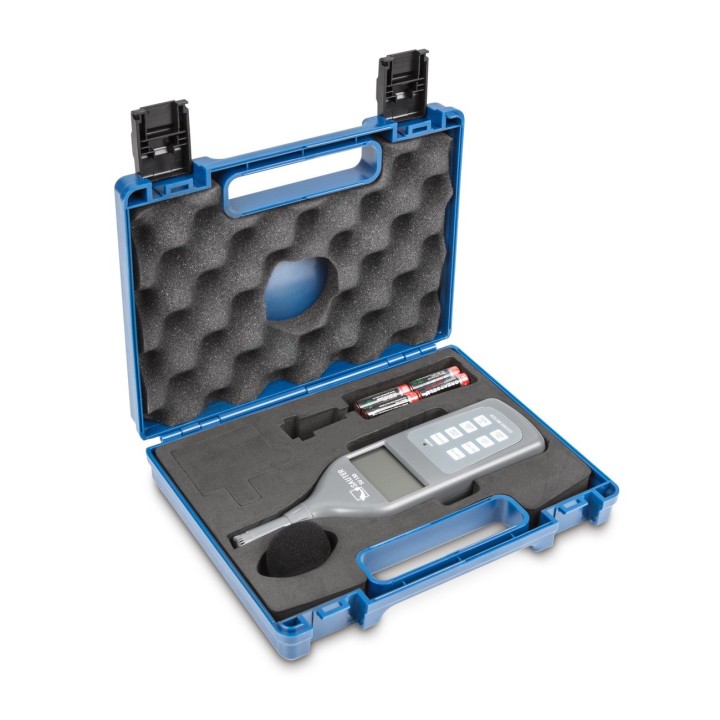

Delivered in a robust carrying case
