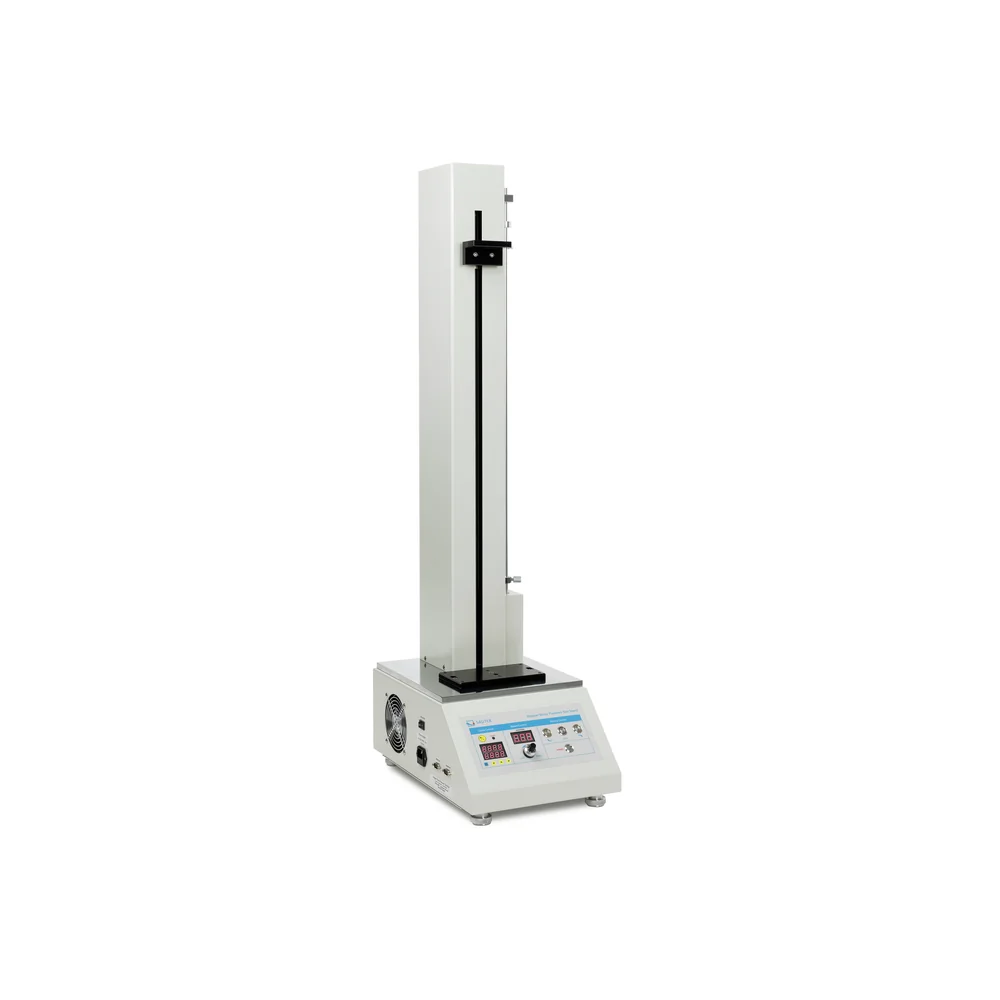

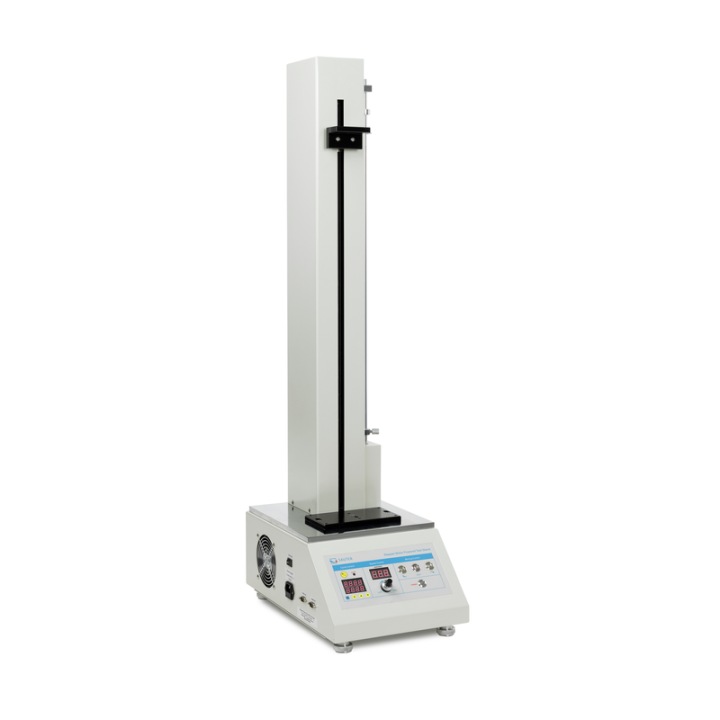

SAUTER TVO 2000N500S Motorised vertical test stand

SAUTER TVO 2000N500S Motorised vertical test stand

SAUTER
TVO 2000N500S

Premium test stand in table-top version – with precise step motor

Technical Data

Generated force [Max]2 kN
Traverse distance [Max]700 mm
Type of driveStepper motor
Input voltage power supply / power [Max]230 V AC, 50 Hz
Repeat function
Speed display
Dimensions completely mounted (W×D×H)1185×465×300 mm
Transversal movement speed [Min]1 mm/min
Transversal movement speed [Max]500 mm/min
Hurry! only 11 items left in stock.
€5,220.00
€5,800.00
Save 10%
Tax excluded
Quantity

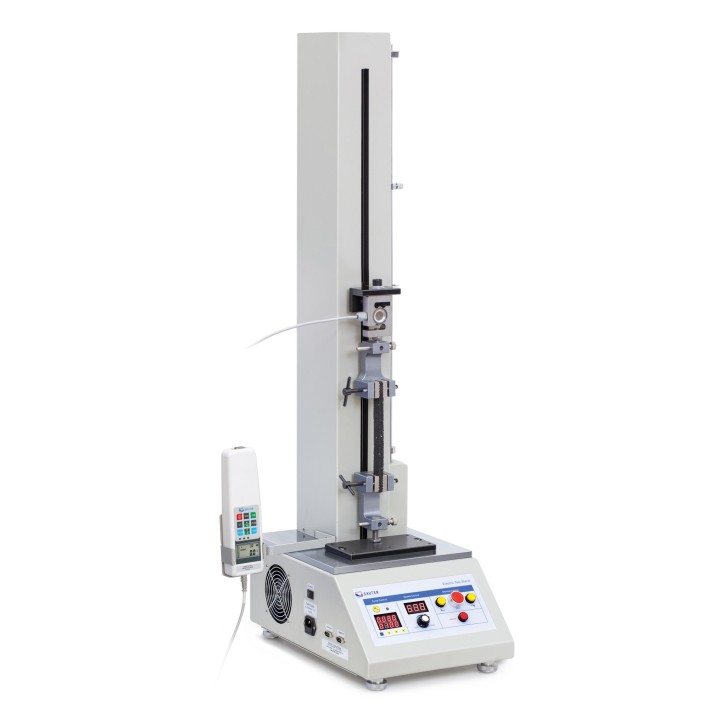

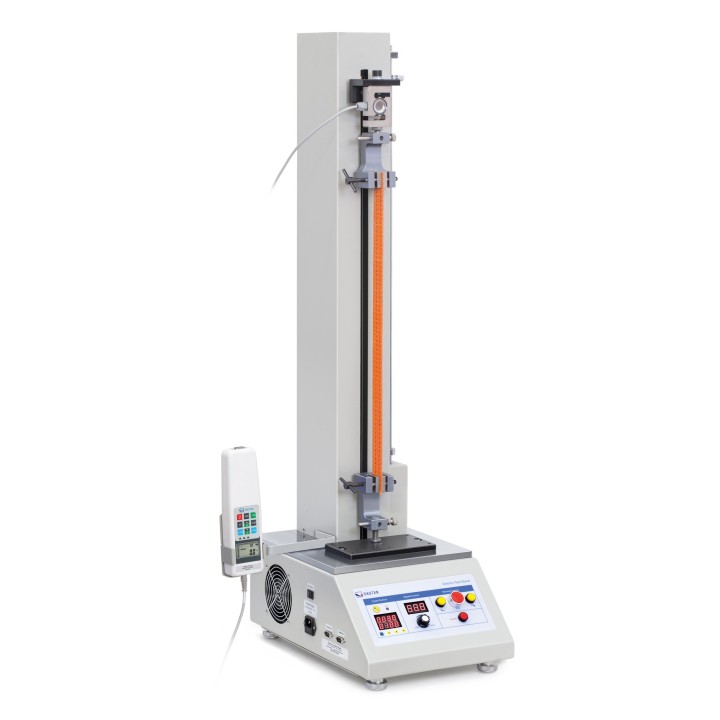

Motorised vertical test stand SAUTER TVO 2000N500S

Premium test bench in table-top version - now also with step motor

  • Solid and flexible mounting options for brackets for test objects such as B. Universal force measuring clamps, pressure plates for pressure and fracture tests, bending devices, etc.
  • A wide range of application possibilities because of its large travel path
  • A wide range of interfaces for easy transfer of the data collected
  • Motorised test stand for tension an compression tests
  • Step motor for greatest ease of use :
    • - for constant speed from the smallest to the maximum load
    • - allows testing at minimum speed and full load
    • - for higher positioning accuracy. Precise starting and stopping, without run-on, even at high speeds
  • - precise adjustment of the process speed using the information shown on the display
  • Automatic or manual operation mode
  • Premium operating panel :
    • - Digital speed display
    • - Digital repeat function display
    • - Control of the test bench using SAUTER AFH PC software
  • Table-top design for comfortable operation
  • Robust construction
  • Fixation of SAUTER force measuring devices up to 2 kN
: TVO 2000N500S
