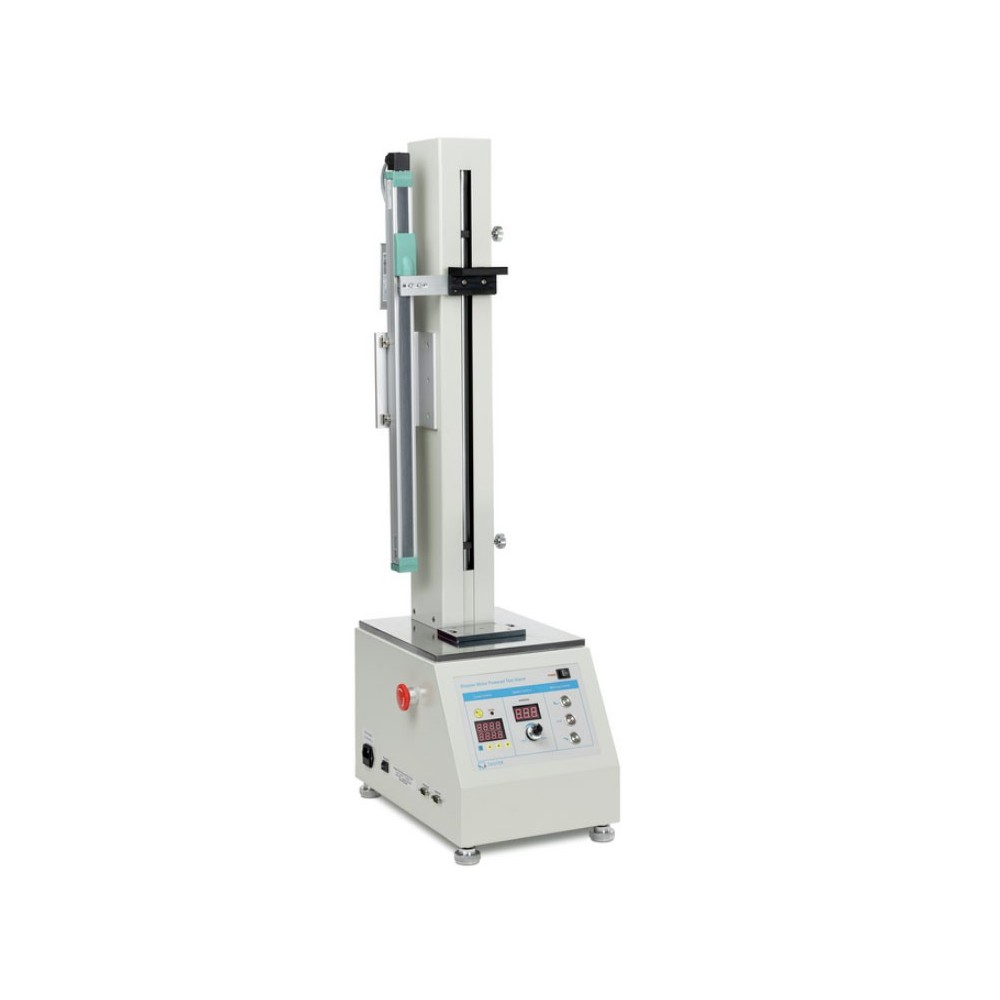

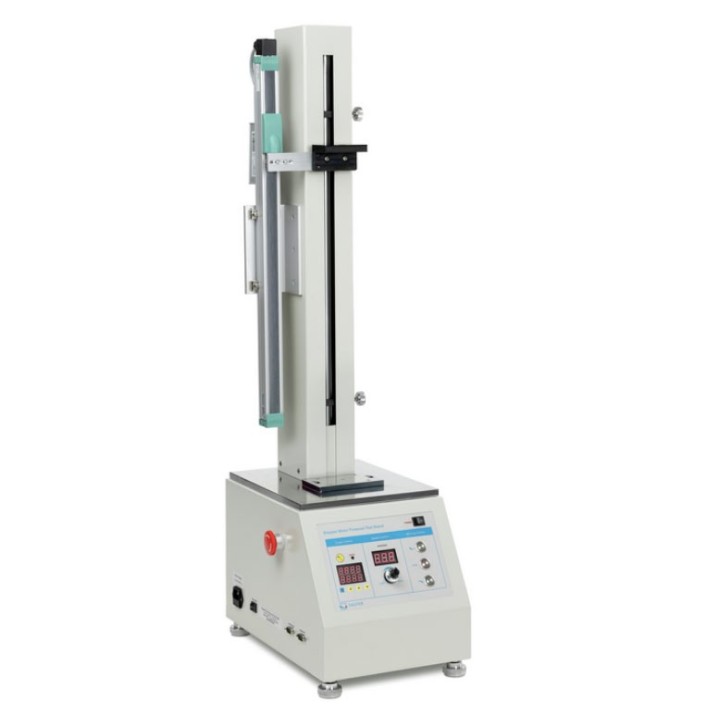

SAUTER TVO 1000N500S-LD motorised test stand with length measuring

SAUTER TVO 1000N500S-LD motorised test stand with length measuring

SAUTER
TVO 1000N500S-LD

Practical set for force-displacement-measurements in laboratory and industry

Technical Data

Generated force [Max] 1 kN
Traverse distance [Max] 500 mm
Type of drive Stepper motor
Length measuring device Length measuring device with data interface
Input voltage power supply / power [Max] 230 V AC, 50 Hz
Limit switch
Repeat function
Speed display
Dimensions completely mounted (W×D×H) 980×405×265 mm
Transversal movement speed [Min] 1 mm/min
Transversal movement speed [Max] 500 mm/min
Measurement alignment vertical
Hurry! only 11 items left in stock.
€4,725.00
€5,250.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Five in one – motorised test stand, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting

With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 500 mm, readability 0,01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1,5 m, high data acquisition speed

Motorised test stand for tension/compression force measurements

Stepper motor for greatest ease of use

- for constant speed from the smallest to the maximum load

- allows testing at minimum speed and full load

- for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds

- precise adjustment of the displacement speed using the information shown on the display

Automatic or manual operation mode

Premium operating panel:

- Digital speed display

- Digital repeat function display

- Control of the test stand using PC software SAUTER AFH

Table-top design for comfortable operation

Robust construction

Fixation of SAUTER force measuring devices up to 1 kN possible, only in combination with TVO-A01 (see accessories)

: TVO 1000N500S-LD
