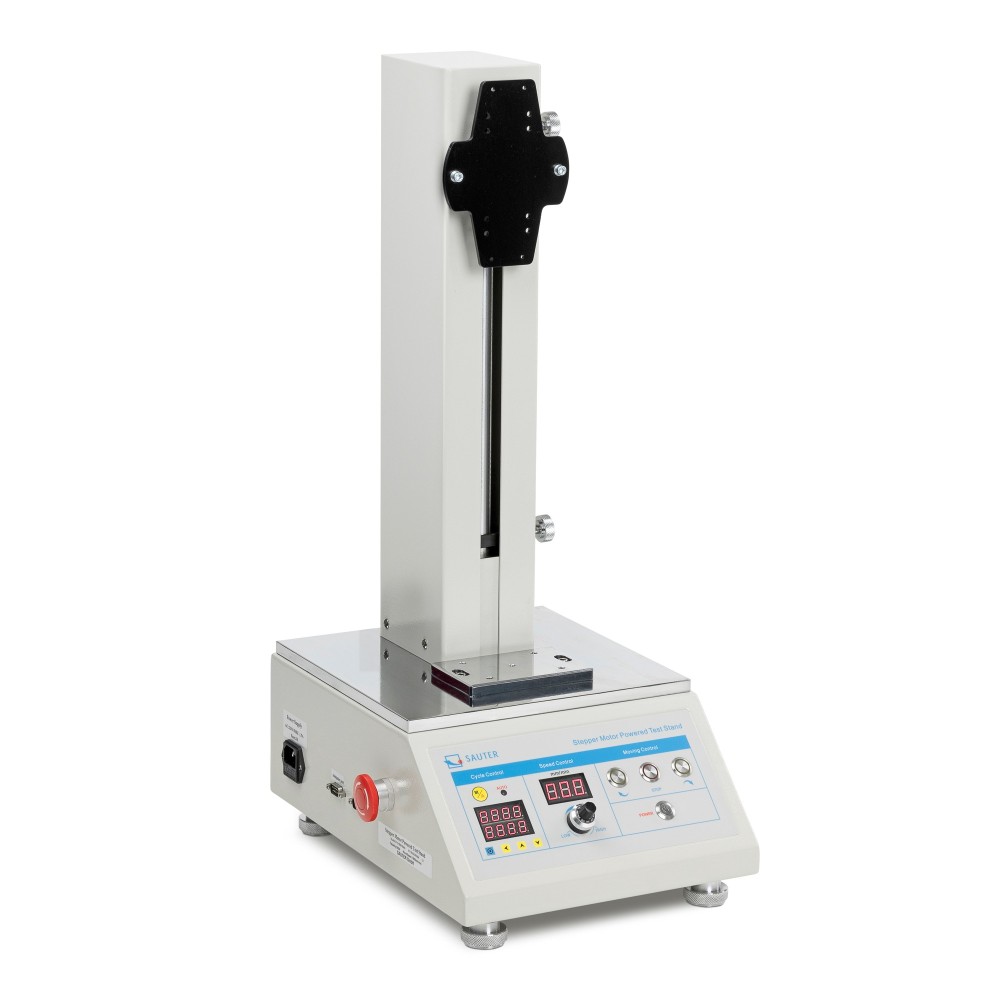

SAUTER TVO 500N500S Motorised vertical test stand

Motorised vertical test stand SAUTER TVO 500N500S

Premium test bench in table-top version - now also with step motor

• Solid and flexible mounting options for brackets for test objects such as B. Universal force measuring clamps, pressure plates for pressure and fracture tests, bending devices, etc.
• A wide range of application possibilities because of its large travel path
• A wide range of interfaces for easy transfer of the data collected
• Motorised test stand for tension an compression tests
• Step motor for greatest ease of use :
  • - for constant speed from the smallest to the maximum load
  • - allows testing at minimum speed and full load
  • - for higher positioning accuracy. Precise starting and stopping, without run-on, even at high speeds
• - precise adjustment of the process speed using the information shown on the display
• Automatic or manual operation mode

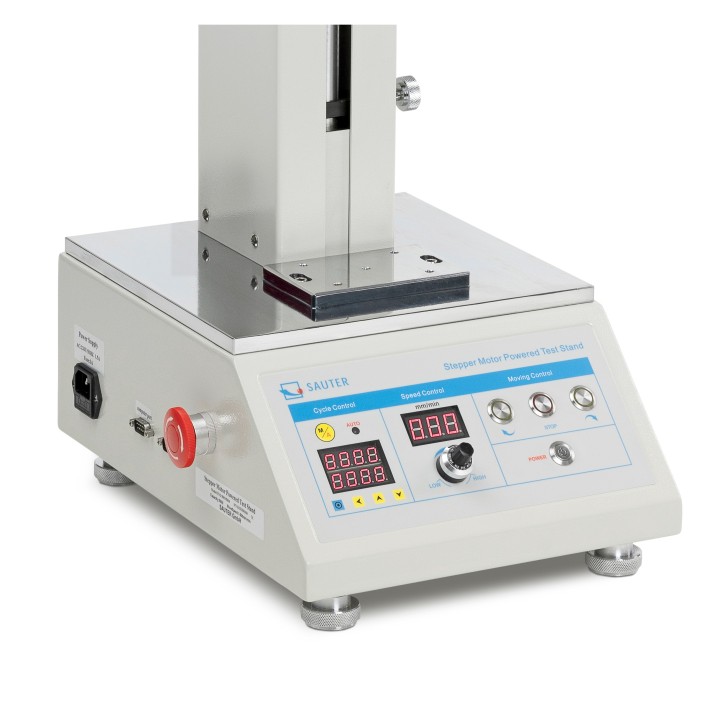

• Premium operating panel :
  • - Digital speed display
  • - Digital repeat function display
  • - Control of the test bench using SAUTER AFH PC software
• Table-top design for comfortable operation
• Robust construction

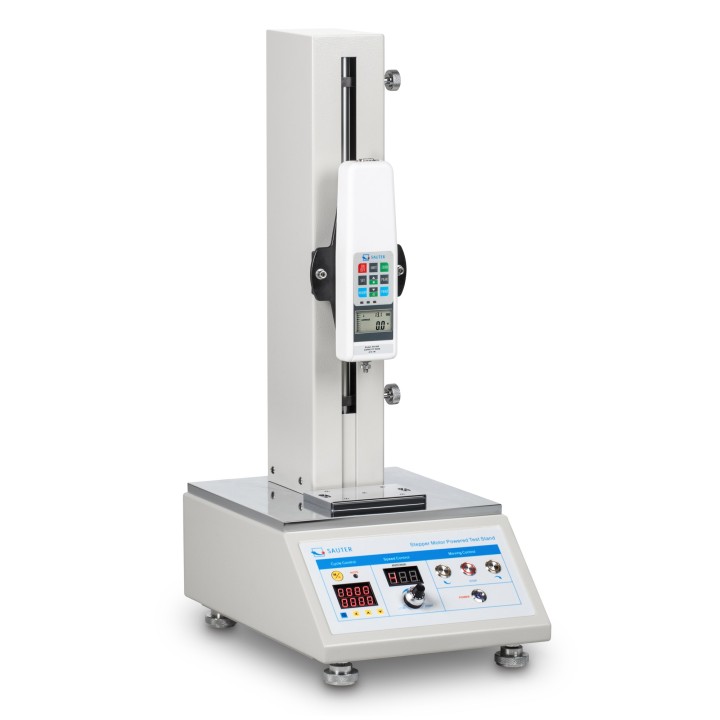

• Fixation of SAUTER force measuring devices up to 2 kN

Technical data SAUTER TVO 500N500S

• Casing material: Metal lacquered
• Dimensions (W×D×H): 570 mm x 428 mm x 236 mm
• Dimensions housing (W×D×H): 570 mm x 428 mm x 236 mm
• Direction of measurement: vertical
• Maximum generated force: 500 N
• Maximum travelling distance: 27 cm
• Operation speed: 500 mm/min
• Operation speed: 1 mm/min
• Overall dimensions mounted (W×D×H): 570 mm x 428 mm x 236 mm
• Speed accuracy (of [Max]): 0,500 %
