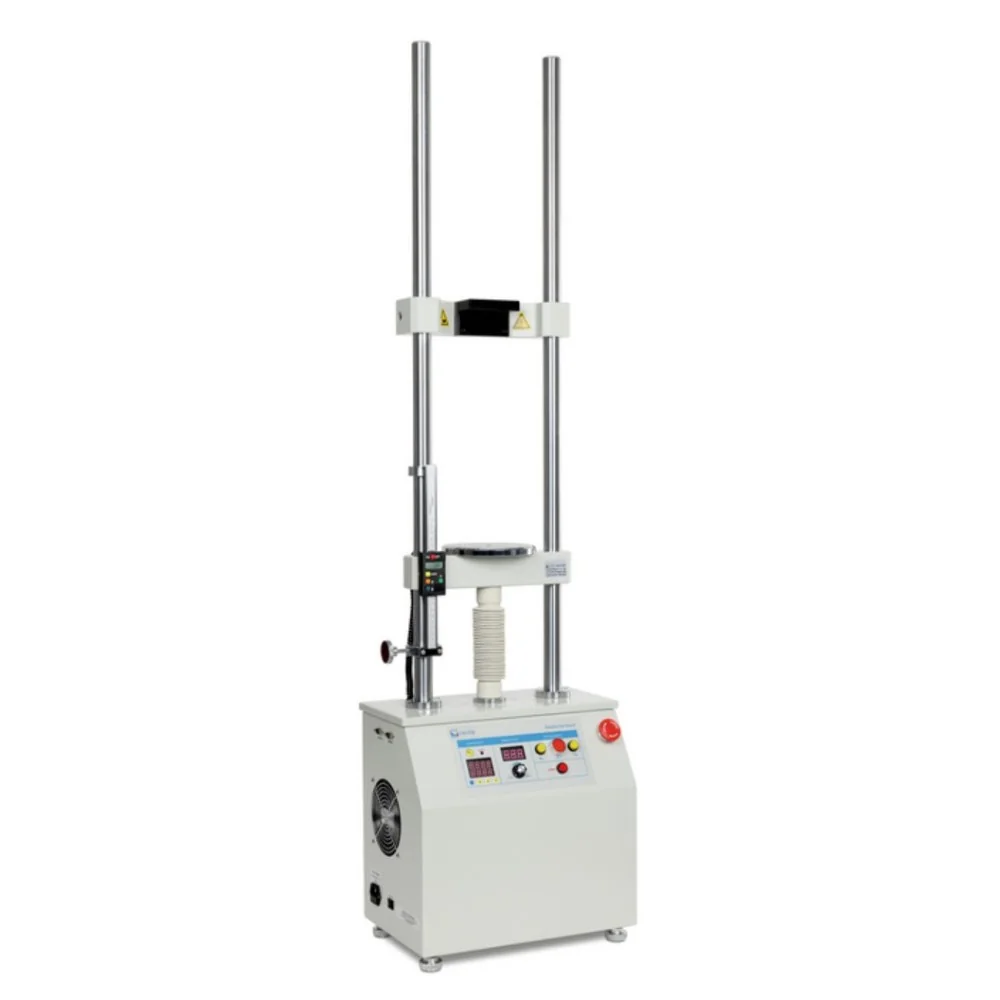

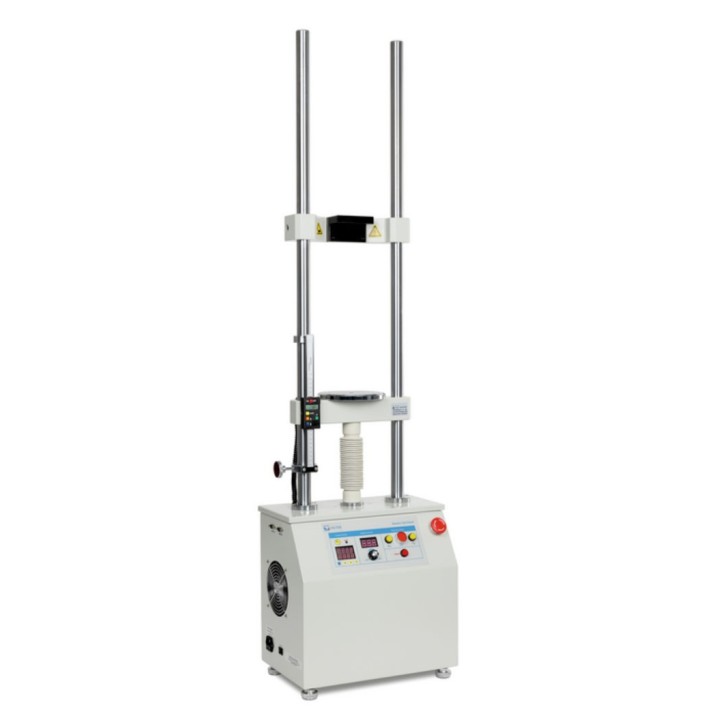

SAUTER TVM 5000N230NL motorised test stand

Name: SAUTER TVM 5000N230NL motorised test stand
Brand: SAUTER
SKU: TVM 5000N230NL
Price: 2907.00 EUR
Availability: InStock

Brand : SAUTER

Reference : TVM 5000N230NL

Test stand with electric motor for standard measurements

Technical Data

Generated force [Max]	5 kN
Traverse distance [Max]	210 mm
Type of drive	Electric motor
Length measuring device	Length measuring device with display
Input voltage power supply / power [Max]	220 V AC, 50 Hz
Limit switch
Repeat function
Speed display
Material housing	metal, lacquered
Dimensions completely mounted (W×D×H)	400×256×1535 mm
Transversal movement speed [Min]	10 mm/min
Transversal movement speed [Max]	230 mm/min
Measurement alignment	vertical

Guarantee safe checkout

Motorised test stand for tension/compression force measurements

Force controlled automatic switchoff, teststop after achieving an adjusted limit load, only in connection with a SAUTER FH force gauge

Maximum displacement protected by electronic end switches

SAUTER LA length measuring device as standard, to read the travel distance with a readability of 0,01 mm

Particularly flexible mounting options for variable SAUTER force gauge, such as, FC, FH, FK, FL

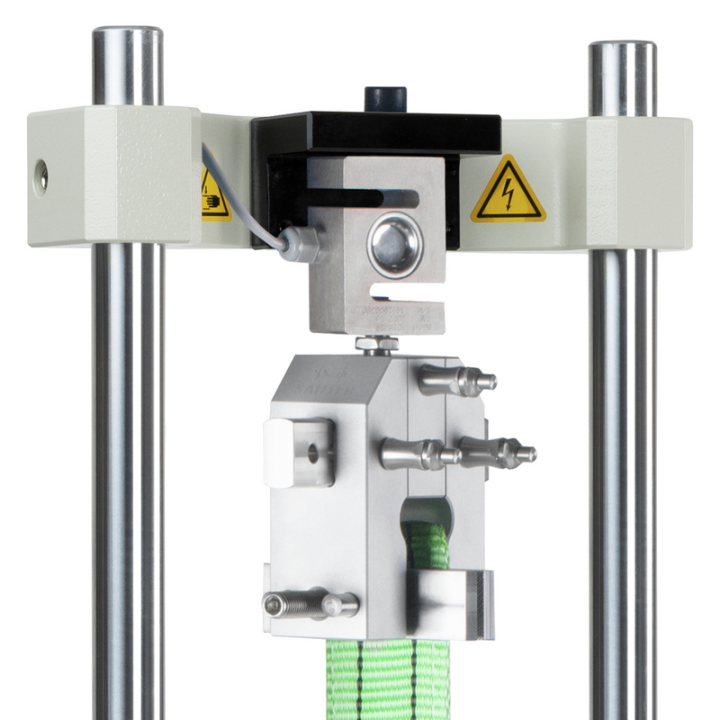

- Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher

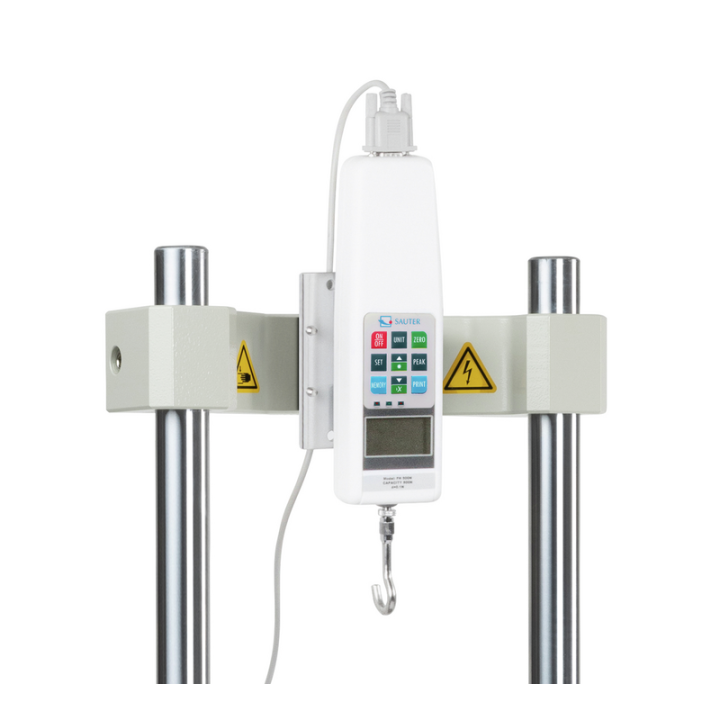

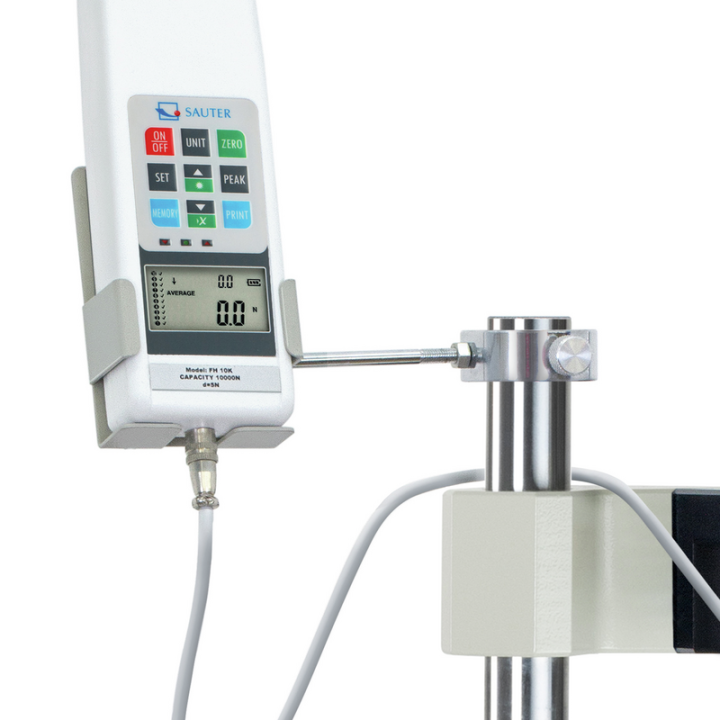

- Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)

Force gauge not included!

find your force gauge here >>>

Reference : TVM 5000N230NL

Hurry! only 11 items left in stock.
