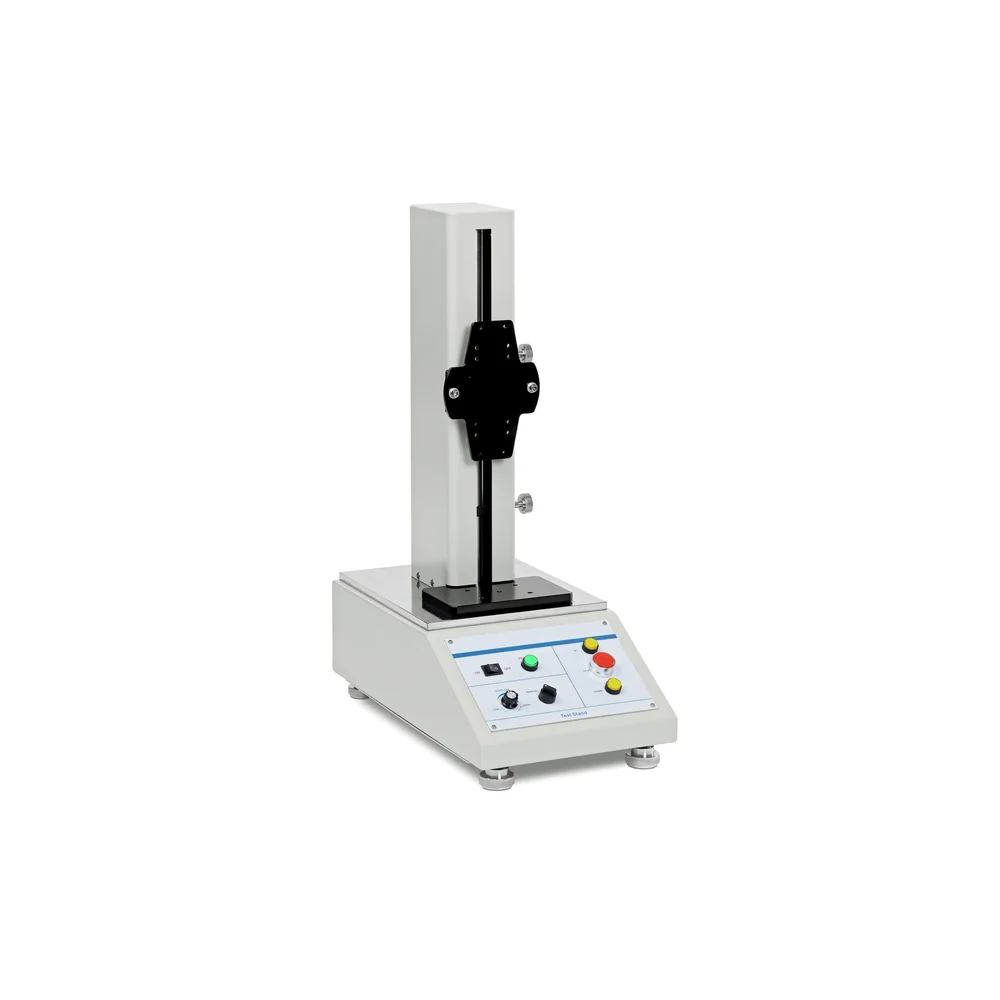

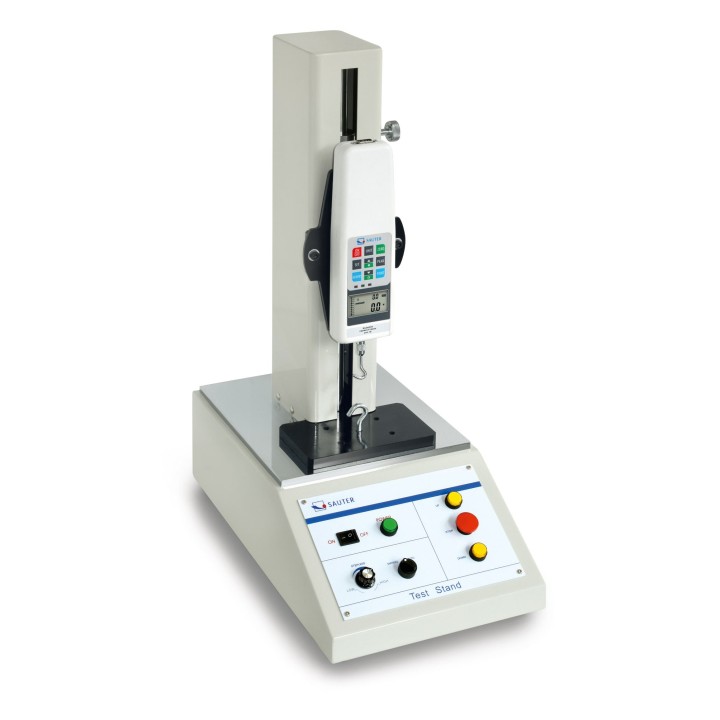

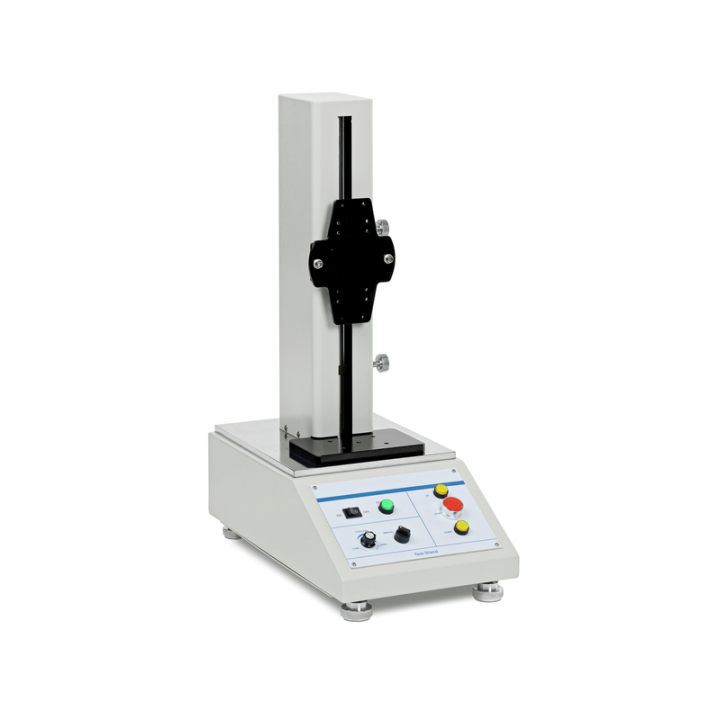

SAUTER TVO 500N300 Motorised table test stand

SAUTER TVO 500N300 Motorised table test stand

SAUTER
TVO 500N300

Robust premium test stand for laboratory applications

TECHNICAL DATA

Generated force [Max]500 N
Traverse distance [Max]270 mm
Type of driveElectric motor
Input voltage power supply / power [Max]230 V AC, 50 Hz
Limit switch
Repeat function
Material housingmetal, lacquered
Dimensions completely mounted (W×D×H)570×428×236 mm
Transversal movement speed [Min]15 mm/min
Transversal movement speed [Max]300 mm/min
Measurement alignmentvertical
Hurry! only 11 items left in stock.
€2,232.00
€2,480.00
Save 10%
Tax excluded
Quantity

  • Motorised test stand for tension an compression tests
  • Table-top design for comfortable operation
  • Robust design for durable use
  • Easy-to-access safety switch-off
  • Upper and lower end point, can be set individually
  • Automatic or manual operation mode
  • Can be used for force gauges up to 500 N
  • Force gauge not included!
STANDARDOPTION
Motorised drive: the mechanical movement is carried out by a motorised drive.
2 years warranty
Length measurement: captures the geometric dimensions of a test object or the movement during a test process.
