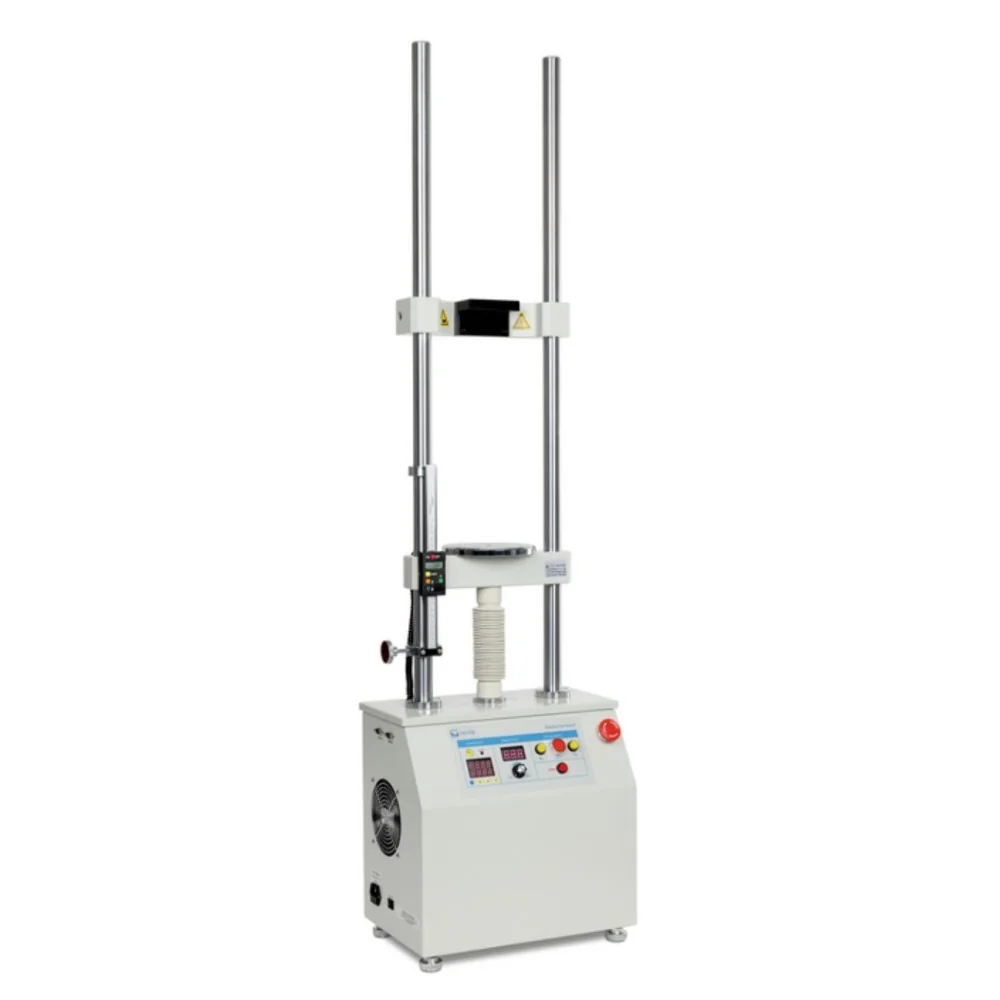

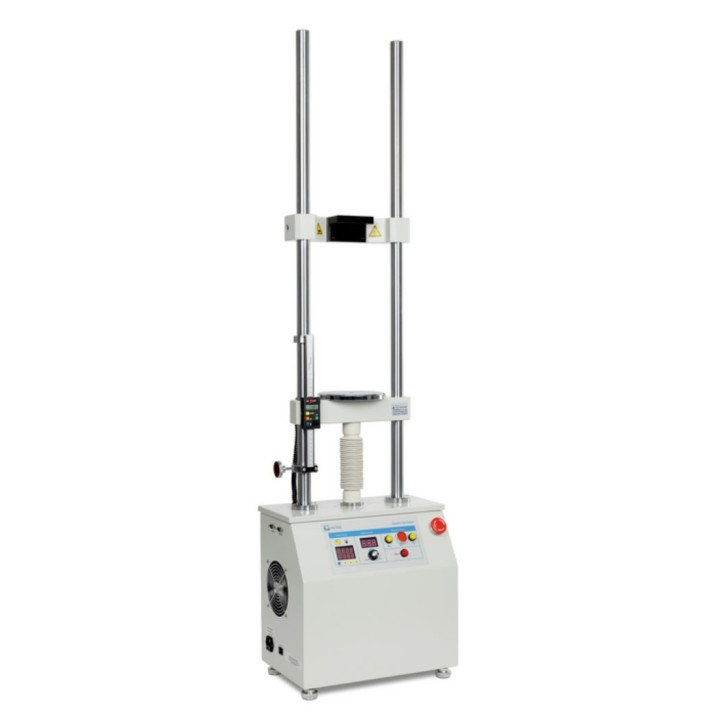

SAUTER TVM 20KN120N motorised test stand


SAUTER TVM 20KN120N motorised test stand

SAUTER
TVM 20KN120N

Test stand with electric motor for standard measurements

Technical Data

Generated force [Max] 20 kN
Traverse distance [Max] 210 mm
Type of drive Electric motor
Length measuring device Length measuring device with display
Input voltage power supply / power [Max] 220 V AC, 50 Hz
Limit switch
Repeat function
Speed display
Material housing metal, lacquered
Dimensions completely mounted (W×D×H) 400×256×1535 mm
Transversal movement speed [Min] 30 mm/min
Transversal movement speed [Max] 120 mm/min
Measurement alignment vertical
Hurry! only 11 items left in stock.
€4,536.00
€5,040.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Motorised test stand for tension/compression force measurements

Force controlled automatic switchoff, teststop after achieving an adjusted limit load, only in connection with a SAUTER FH force gauge

Maximum displacement protected by electronic end switches

SAUTER LA length measuring device as standard, to read the travel distance with a readability of 0,01 mm

Particularly flexible mounting options for variable SAUTER force gauge, such as, FC, FH, FK, FL

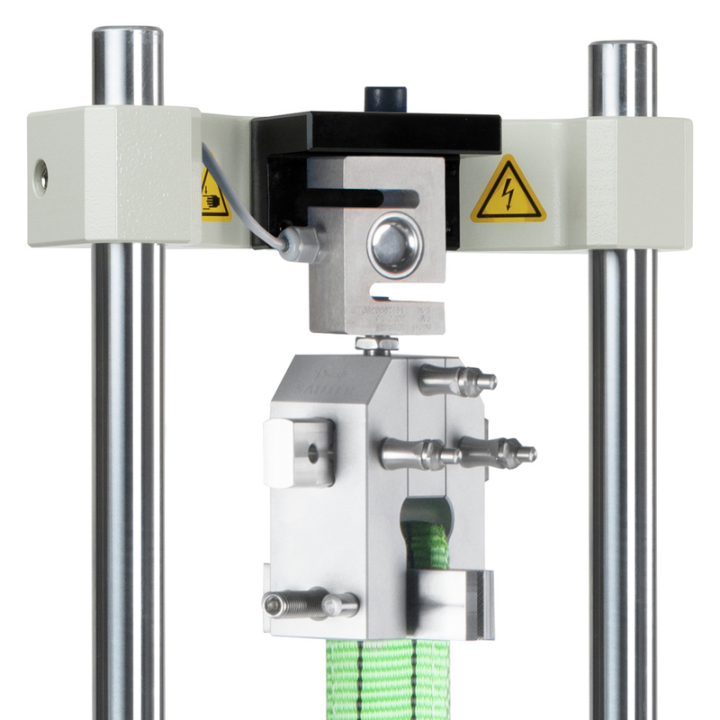

- Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher

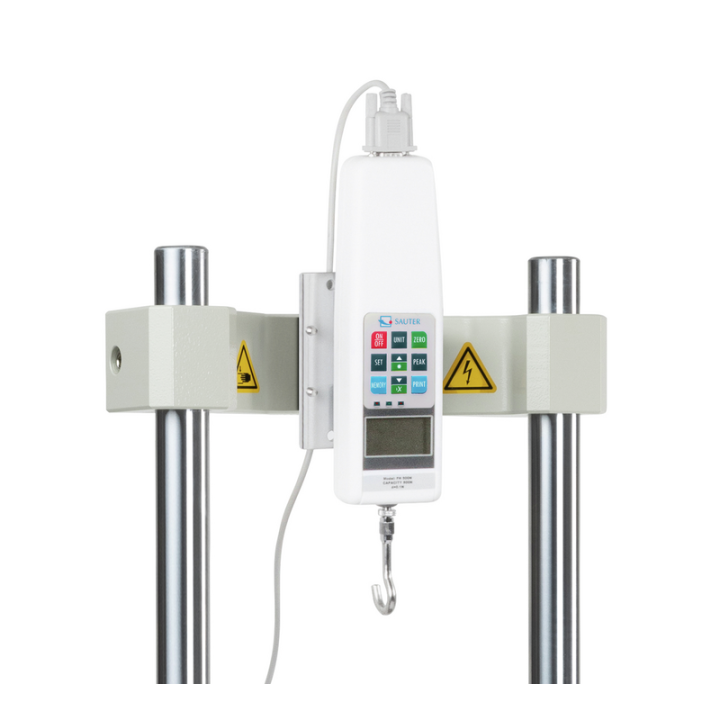

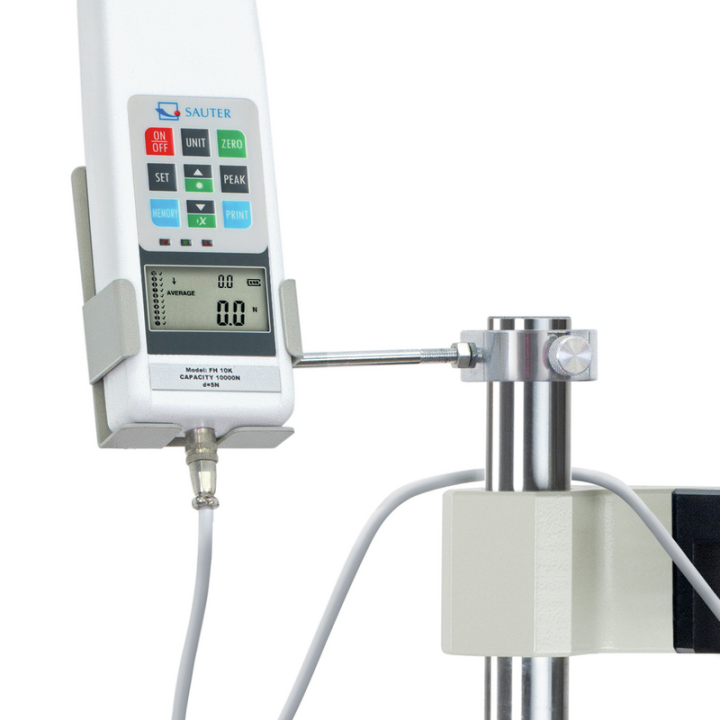

- Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)

Force gauge not included!

find your force gauge here >>>
