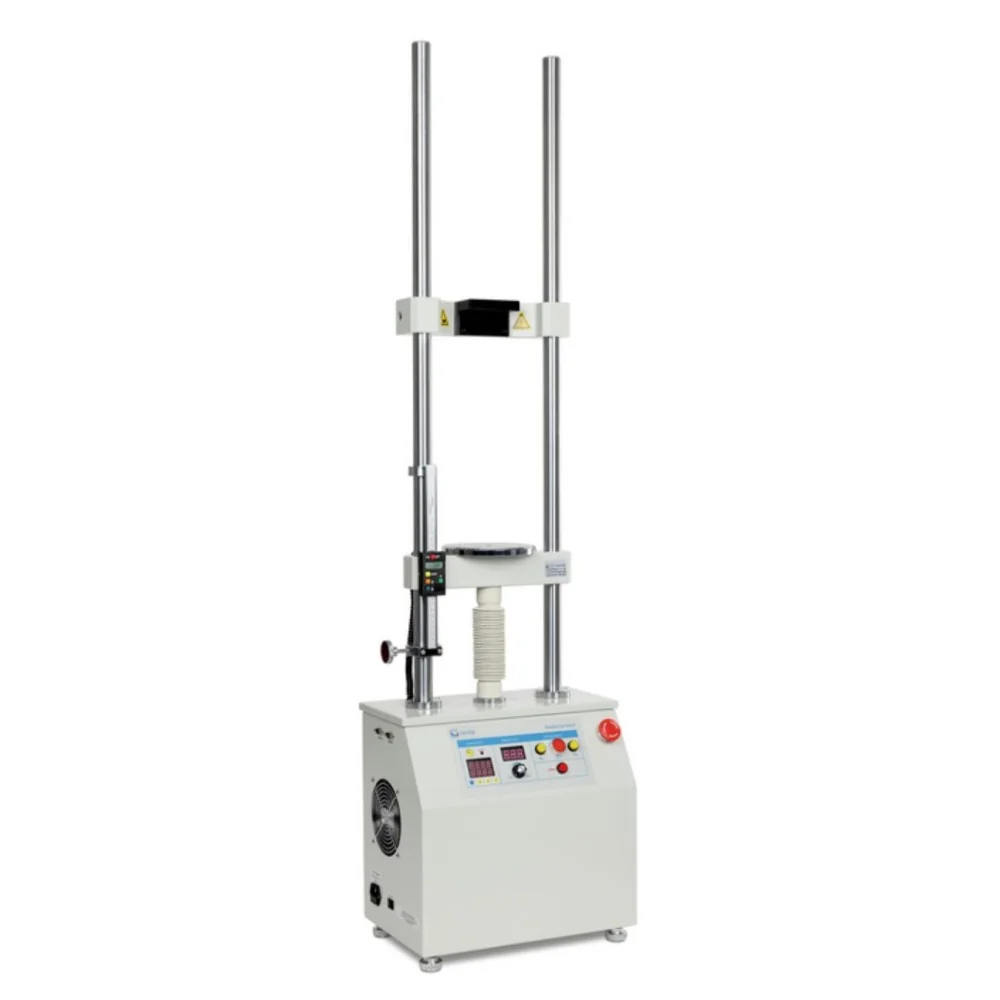

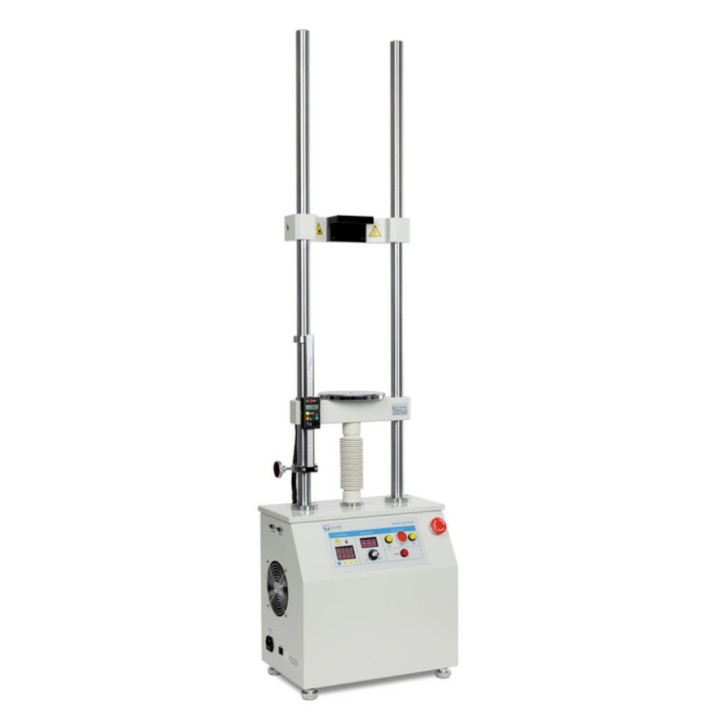

SAUTER TVM 10KN120N motorised test stand for force measurements
  • SAUTER TVM 10KN120N motorised test stand for force measurements
  • SAUTER TVM 10KN120N motorised test stand for force measurements
  • SAUTER TVM 10KN120N motorised test stand for force measurements
  • SAUTER TVM 10KN120N motorised test stand for force measurements

SAUTER TVM 10KN120N motorised test stand for force measurements

3,393.00 €Save 10%
3,770.00 €
Tax excluded

Test stand with electric motor for standard measurements

Technical Data

Generated force [Max]10 kN
Traverse distance [Max]210 mm
Type of driveElectric motor
Length measuring deviceLength measuring device with display
Input voltage power supply / power [Max]220 V AC, 50 Hz
Limit switch
Repeat function
Speed display
Material housingmetal, lacquered
Dimensions completely mounted (W×D×H)400×256×1535 mm
Transversal movement speed [Min]30 mm/min
Transversal movement speed [Max]120 mm/min
Measurement alignmentvertical
  100% buyer protection

Guaranteed with PayPal

  100% secure shipping

Insured and with tracking

  3 year guarantee

100% full processing

Motorised test stand for tension/compression force measurements

Force controlled automatic switchoff, teststop after achieving an adjusted limit load, only in connection with a SAUTER FH force gauge

Maximum displacement protected by electronic end switches

SAUTER LA length measuring device as standard, to read the travel distance with a readability of 0,01 mm

Particularly flexible mounting options for variable SAUTER force gauge, such as, FC, FH, FK, FL

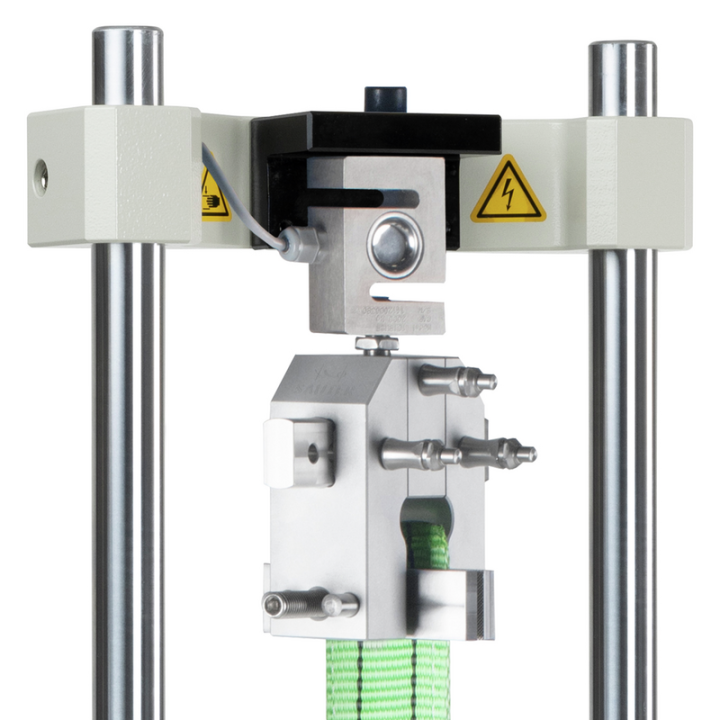

- Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher

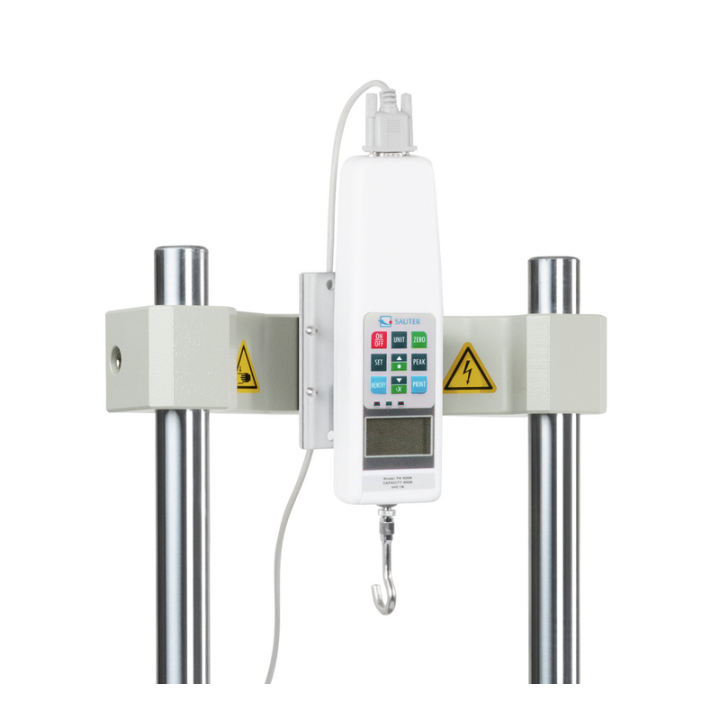

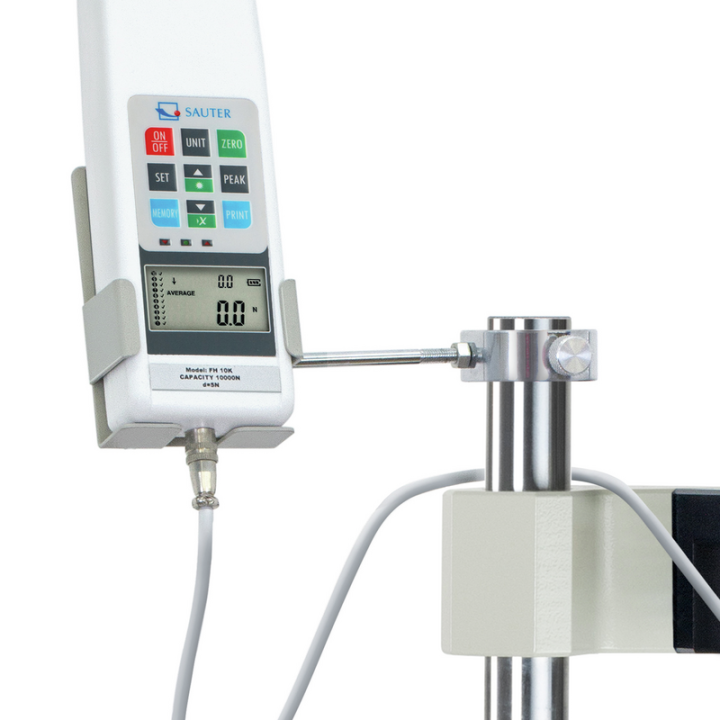

- Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)

Force gauge not included!

find your force gauge here >>>

TVM 10KN120N

Download

SAUTER TVM

SAUTER TVM technical data sheet
