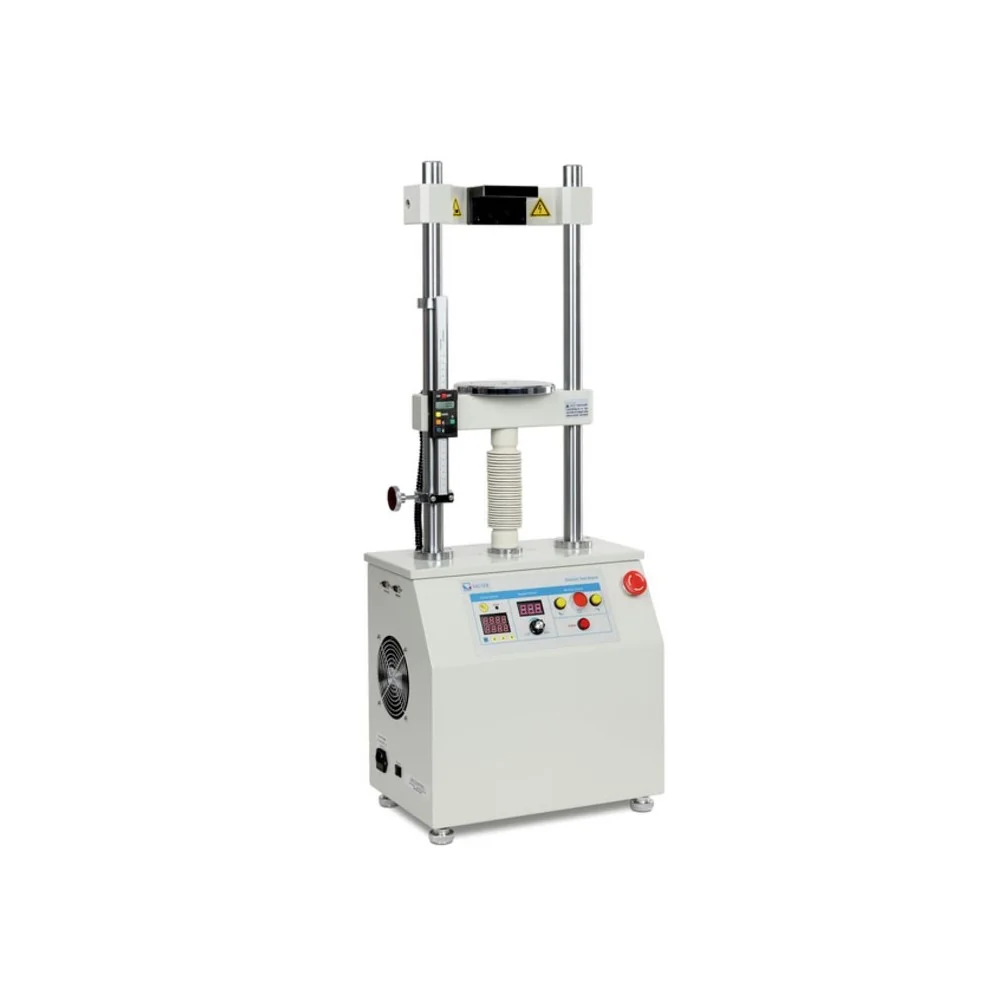

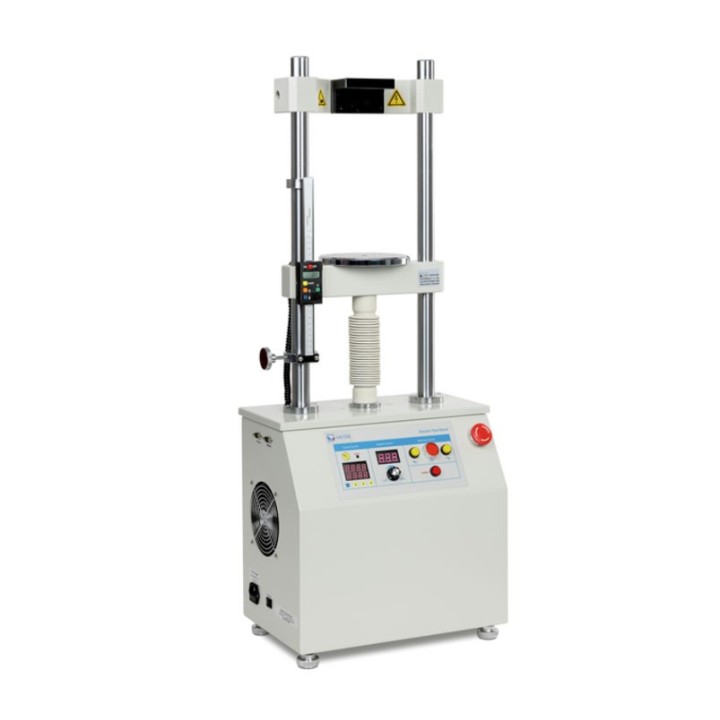

SAUTER TVM 5000N230N motorised test stand
SAUTER TVM 5000N230N motorised test stand
SAUTER TVM 5000N230N motorised test stand
SAUTER TVM 5000N230N motorised test stand

SAUTER TVM 5000N230N motorised test stand

SAUTER
€2,740.00 (Save 10%)
€2,466.00
Tax excluded

Test stand with electric motor for standard measurements

Technical Data

Generated force [Max]5 kN
Traverse distance [Max]210 mm
Type of driveElectric motor
Length measuring deviceLength measuring device with display
Input voltage power supply / power [Max]220 V AC, 50 Hz
Limit switch
Repeat function
Speed display
Material housingmetal, lacquered
Dimensions completely mounted (W×D×H)400×256×1035 mm
Transversal movement speed [Min]10 mm/min
Transversal movement speed [Max]230 mm/min
Measurement alignmentvertical
in stock
Share

Motorised test stand for tension/compression force measurements

Force controlled automatic switchoff, teststop after achieving an adjusted limit load, only in connection with a SAUTER FH force gauge

Maximum displacement protected by electronic end switches

SAUTER LA length measuring device as standard, to read the travel distance with a readability of 0,01 mm

Particularly flexible mounting options for variable SAUTER force gauge, such as, FC, FH, FK, FL

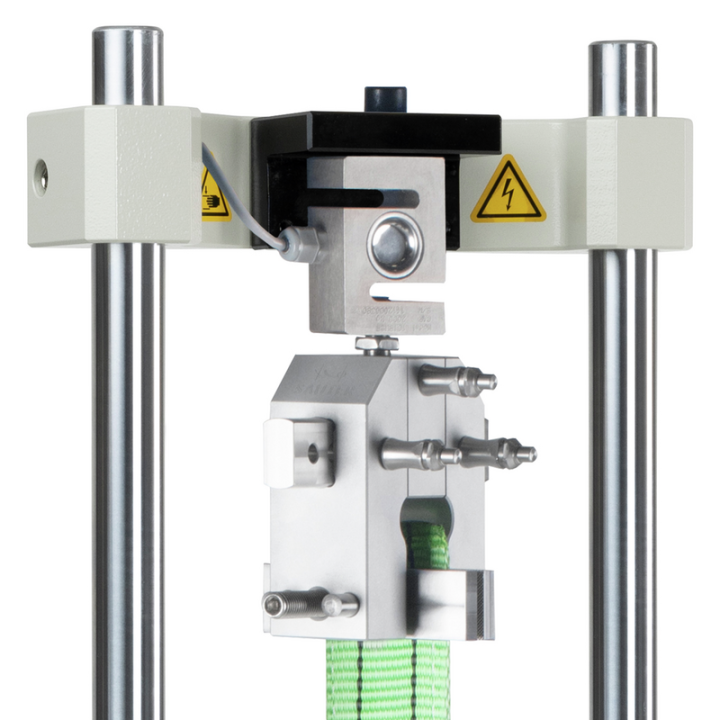

- Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher

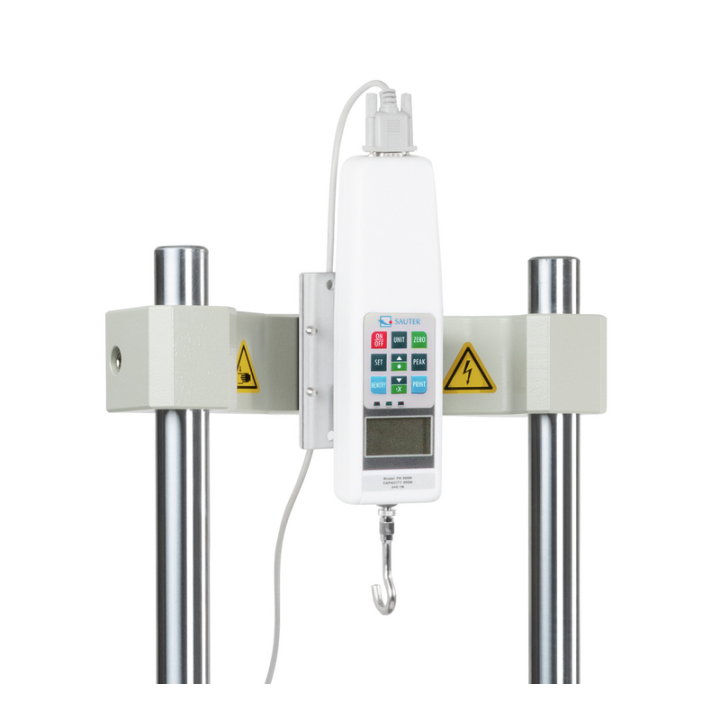

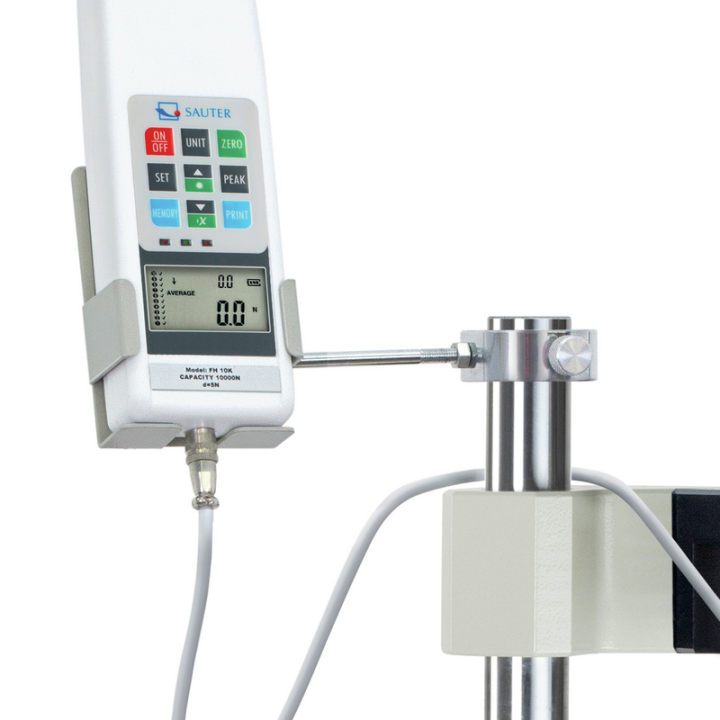

- Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)

Force gauge not included!

find your force gauge here >>>
