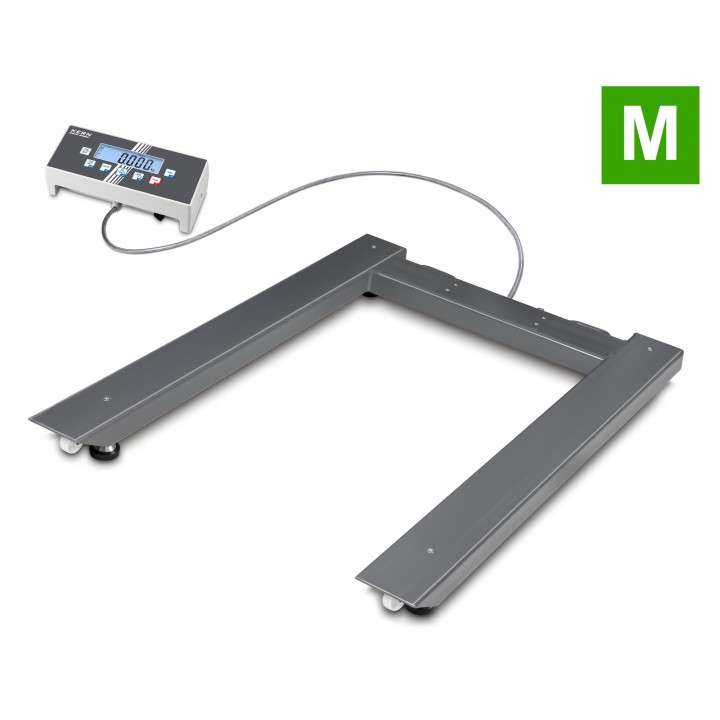

Pallet scale KERN UID 600K-1M

Pallet scale KERN UID 600K-1M

KERN
UID 600K-1M

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required. Data interface RS-232: To connect the balance to a printer, PC or network KERN Communication Protocol (KCP) Piece counting: Reference quantities selectable. Display can be switched from piece to weight. Totalising level A: The weights of similar items can be added together and the total can be printed out. Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning. Fast move: the total length of travel can be covered by a single lever movement. IP 67 protection in accordance with DIN EN 60529: Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof. Universal mains adapter: with universal input and optional input socket adapters for EU, GB Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing Verification possible. The time required for verification is specified in the pictogram.

Hurry! only 111 items left in stock.
€1,050.00
Tax excluded
Quantity

3-5 days
Add to Compare
Add to Wishlist

  • High mobility thanks to battery operation for display device and platform
  • Load support: steel, powder coated, 4 silicone-coated aluminium load cells, protection against dust and water splashes IP67
  • The scale can be easily transported using 2 rollers and a handle and does not require much storage space
  • Protective working cover included with delivery

High-resolution pallet scale KERN UID with calibration approval [M]

  • Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
  • Data interface RS-232: To connect the balance to a printer, PC or network
  • KERN Communication Protocol (KCP):
  • Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
  • Totalising level A: The weights of similar items can be added together and the total can be printed out.
  • Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.
  • Fast move: the total length of travel can be covered by a single lever movement.
  • IP 67 protection in accordance with DIN EN 60529: Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.
  • Universal mains adapter
  • Strain gauge measuring system: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol.. Only possible through RS-232 data interface

: UID 600K-1M
Hurry! only 111 items left in stock.

Data sheet

Readout [d]
200 g

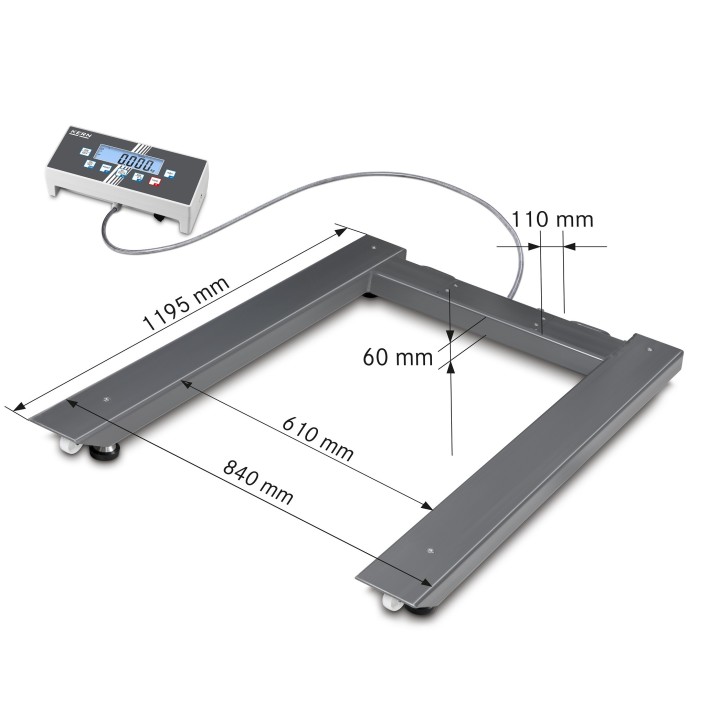

Weighing plate dimensions
1195 x 840 mm
Material weighing plate
Steel lacquered
Weighing units
g HJ kg lb oz PCS tJ
Net weight
45 kg
Weighing range [Max]
600 kg
