Load and force measuring cell stainless steel SAUTER CS 2-Y1

Name: Load and force measuring cell stainless steel SAUTER CS 2-Y1
Brand: SAUTER
SKU: CS 2-Y1
Price: 310.50 EUR
Availability: InStock

Brand : SAUTER

Reference : CS 2-Y1

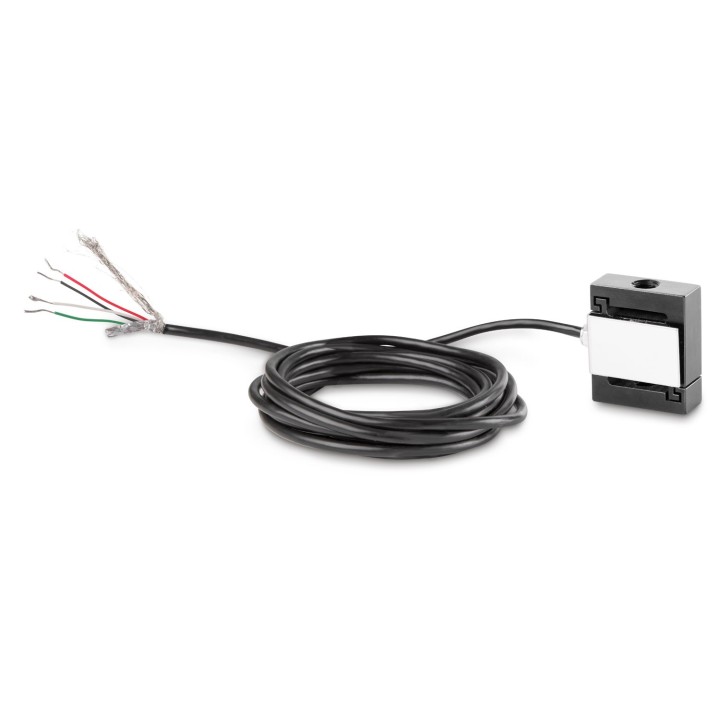

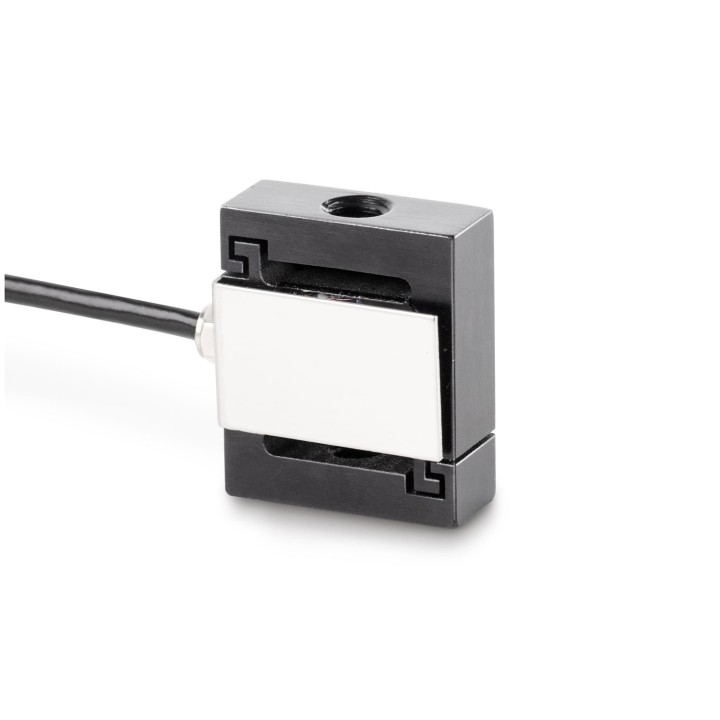

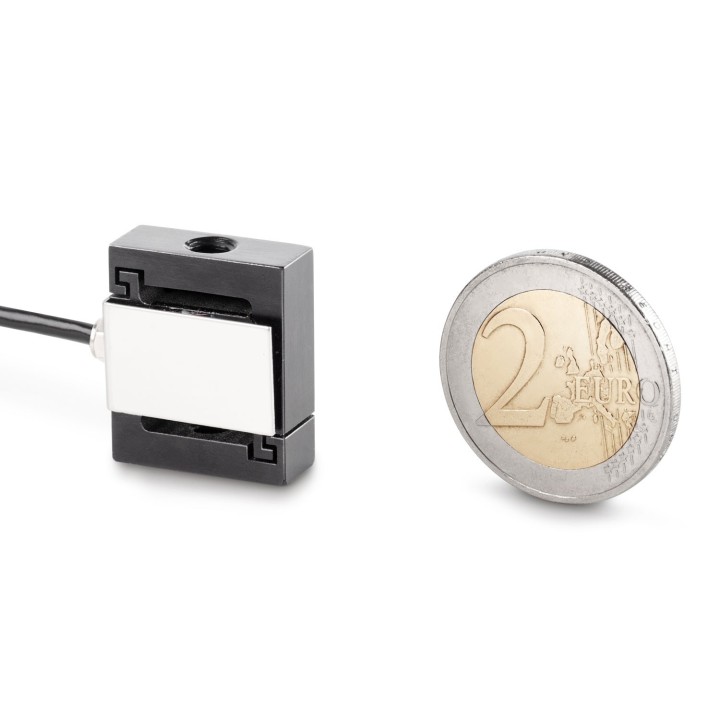

Miniature load and force measuring cell S shape made of stainless steel

Technical Data

Weighing capacity [Max]	2 kg
Measuring range force [Max] (N)	20 N
Design	"S" shaped cell
Directions of force	tension, compression
Measuring applications	force, mass
Combined error	0,1%
characteristic value - nominal	2 mV/V
IP protection - complete device	IP65
Material	steel, stainless
Load cell connection	4-wire
Cable length	2 m
Mounting - force application	Threaded hole M3
Mounting - force dissipation	Threaded hole M3

Guarantee safe checkout

High precision (comprehensive error 0,1% F.S.)

RoHS compliant

Area of application: Tensile and compressive applications, mass and force measurement

Suitable for force test stands, hanging scales, silo scales and various other balances

Reference : CS 2-Y1

Hurry! only 15 items left in stock.

Specific References

EAN13: 4045761233119
