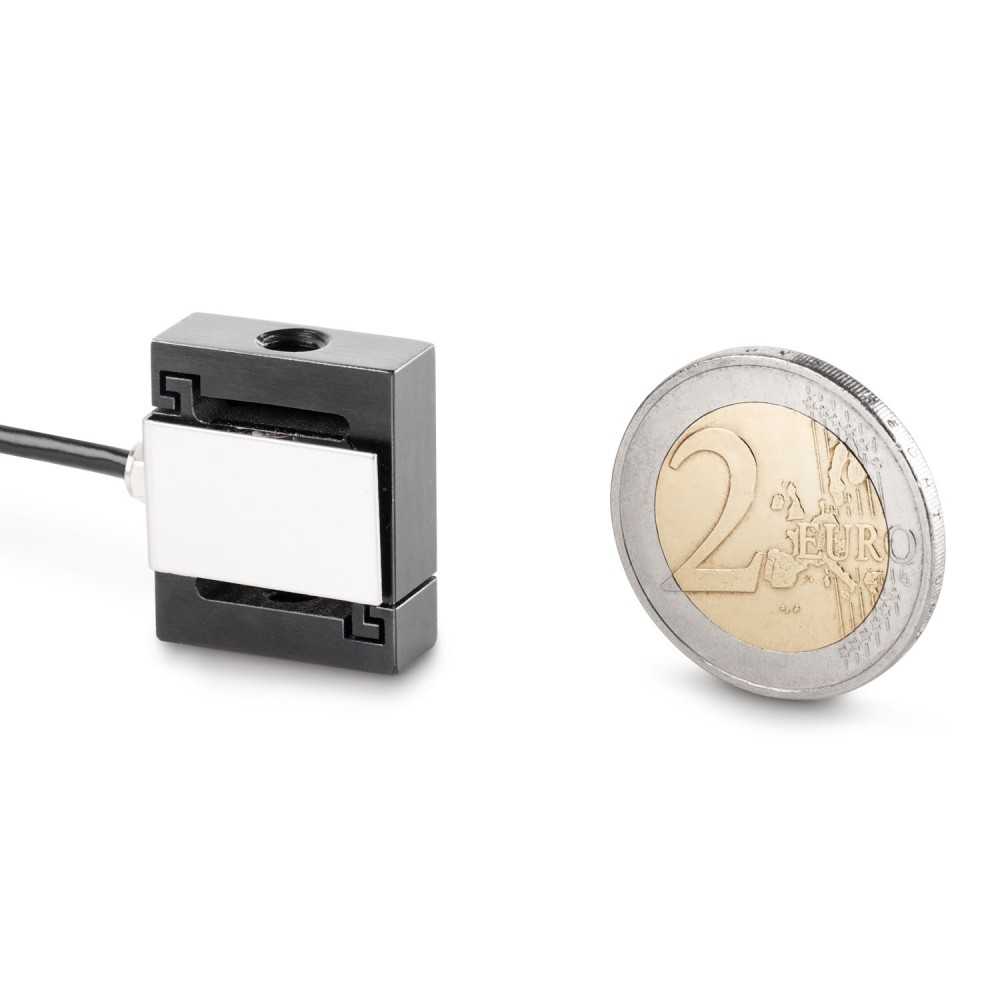

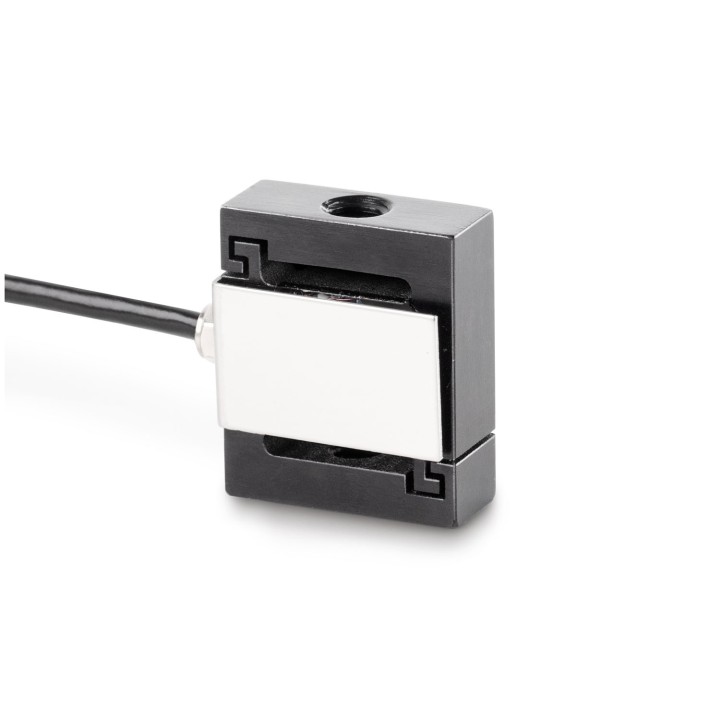

Load and force measuring cell stainless steel SAUTER CS 20-Y1
Miniature load and force measuring cell S shape made of stainless steel
Technical Data
| Weighing capacity [Max] | 20 kg |
| Measuring range force [Max] (N) | 200 N |
| Design | "S" shaped cell |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Combined error | 0,1% |
| characteristic value - nominal | 2 mV/V |
| IP protection - complete device | IP65 |
| Material | steel, stainless |
| Load cell connection | 4-wire |

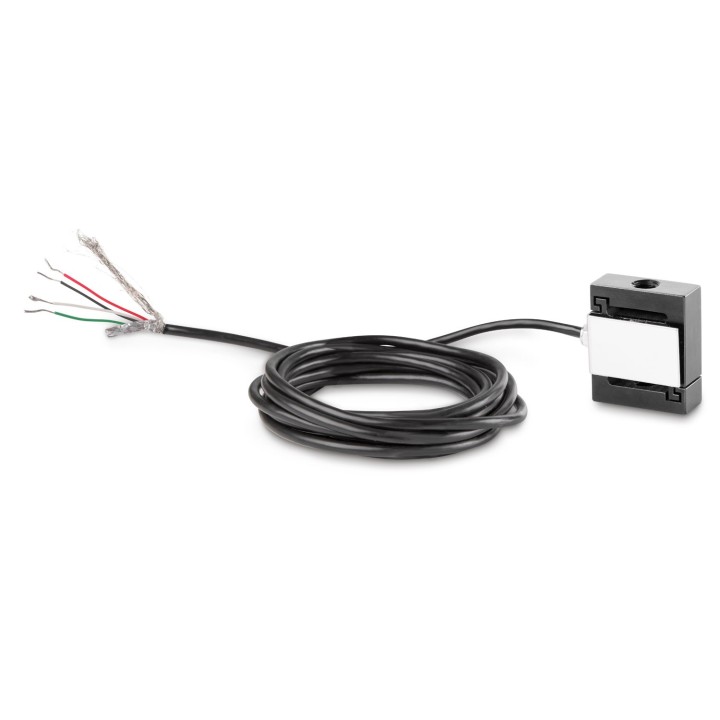

| Cable length | 2 m |
| Mounting - force application | Threaded hole M4 |
| Mounting - force dissipation | Threaded hole M4 |
